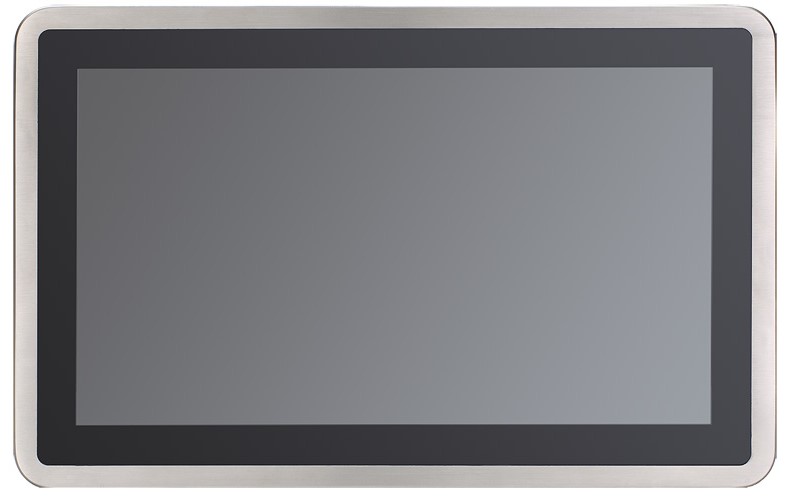

Specifications
| PANEL | 12.1″ WXGA TFT LCD
400 nits 1280 x 800 pixels |
| PROCESSOR | Intel® Core™ i5-7300U 2.6 GHz, up to 3.5 GHz (Kaby Lake) |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 (default RS-232, A-coded) |
| USB | 4 x USB 2.0 (A-coded) |
| ETHERNET | 1 x 10/100/1000 Mbps Ethernet (Intel® I210-IT; X-coded) |
| DISPLAY | N/A |
| AUDIO | N/A |
| STORAGE | 1 x 2.5″ SSD HDD or 1 x 2.5″ SATA HDD (9.5 mm height) |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot
1 x Half-size PCI Express Mini Card slot |
| OTHERS | 1 x DC power connector (M12) |
| TOUCHSCREEN | 5-wire resistive touch or projected capacitive multi-touch |
| FRONT BEZEL | Stainless type 316 |
| POWER SUPPLY | 9 to 36 VDC |
| POWER CONSUMPTION | 56.5W |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| OPERATING TEMPERATURE | -20°C to +50°C (-4°F to +122°F) |
| RELATIVE HUMIDITY | 10% – 95% @ +40°C, non-condensing |
| VIBRATION | 1G, 5 – 500Hz, random for 2.5″ SSD |
| DIMENSIONS (W X D X H) | 332 x 55 x 234 mm (13.07″ x 2.2″ x 9.21) |
| WEIGHT (NET/GROSS) | 4.55 kgs (10.03 lb)/6 kgs (13.22 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows® 10 IoT Enterprise, Windows® 10 Pro |
| MOUNTING | Suspension
VESA mount |
| OPTIONS | Water-proof COM cable (1.8 m)
USB cable M12-8P-F/2 x type A (1.8 m) Water-proof LAN cable (1.8 m) Adapter 24V 90W, M12 A-code |
Downloads
Similar products
-
AES640-500 Fanless System
View specifications- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Kaby Lake/Skylake)
- Supports 4 COM, 6 USB and 2 GbE LAN
- Two 2.5″ SATA drive bay
- PCI Express Mini Card slot and SIM slot
- Front I/O connectivity design
- 10 to 30 VDC wide range power input
-

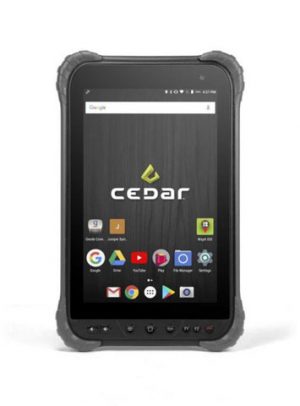

Juniper CT8X2 Rugged Tablet
View specifications- Android 10 operating system
- 8.0” 1280 x 800 resolution screen
- Ultra Rugged design
- Hot swappable battery
- 4Gb of memory & 64Gb flash storage
- Qualcomm® SDM6323 8-core CPU
- GMS (Google Mobile Services) certified
-
AES626-311-3940 Fanless System
View specifications- End of life Q3 2024
-

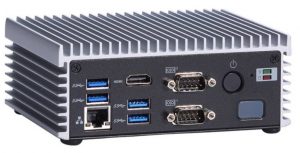

AES560-500-3955U / 6600 / 6300 / 6100 Fanless System
