Specifications
| FRONT BEZEL | IP65 compliant front bezel |
| LCD PANEL | 12.1″ XGA TFT LED |
| COLOURS | 16.7M |
| LUMINANCE | 500cd/m2 |
| MAXIMUM RESOLUTION | 1024 x 768 |
| BACKLIGHT MTBF | 30,000 hrs |
| VIEWING ANGLE | 70 (U), 70 (D), 80 (L), 80 (R) |
| CONTRAST RATIO | 700 (TYP.) |
| DISPLAY CONTROL | OSD (on screen display)
Multilanguage OSD |

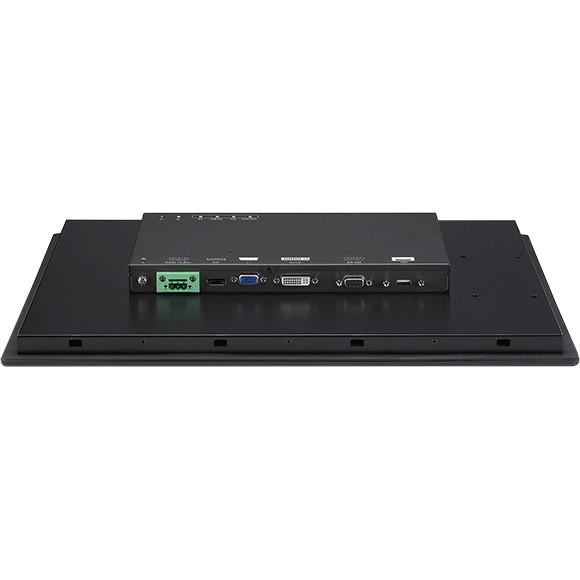

| I/O INTERFACE | Touch screen interface port: RS-232 (1 x DB9)/USB type A
Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)/DisplayPort DC power input connector: 3-pin Phoenix terminal Blocks |
| TOUCHSCREEN | Interface: USB and RS232 |
| POWER SUPPLY | Power input: 12V~24VDC
Power adapter: optional AC to DC power adapter (12V, 60W) |
| VIBRATION | IEC 68 2-64
2Grms @ sine, 5~500Hz, 1hr/axis (operating) 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) |
| SHOCK | IEC 68 2-27
20G @ wall mount, half sine, 11ms |
| OPERATING TEMP. | -5°C ~ 50°C |
| STORAGE TEMP. | -20°C ~ 75°C |
| OPERATING HUMIDITY | 10% ~ 90% relative humidity, non-condensing |

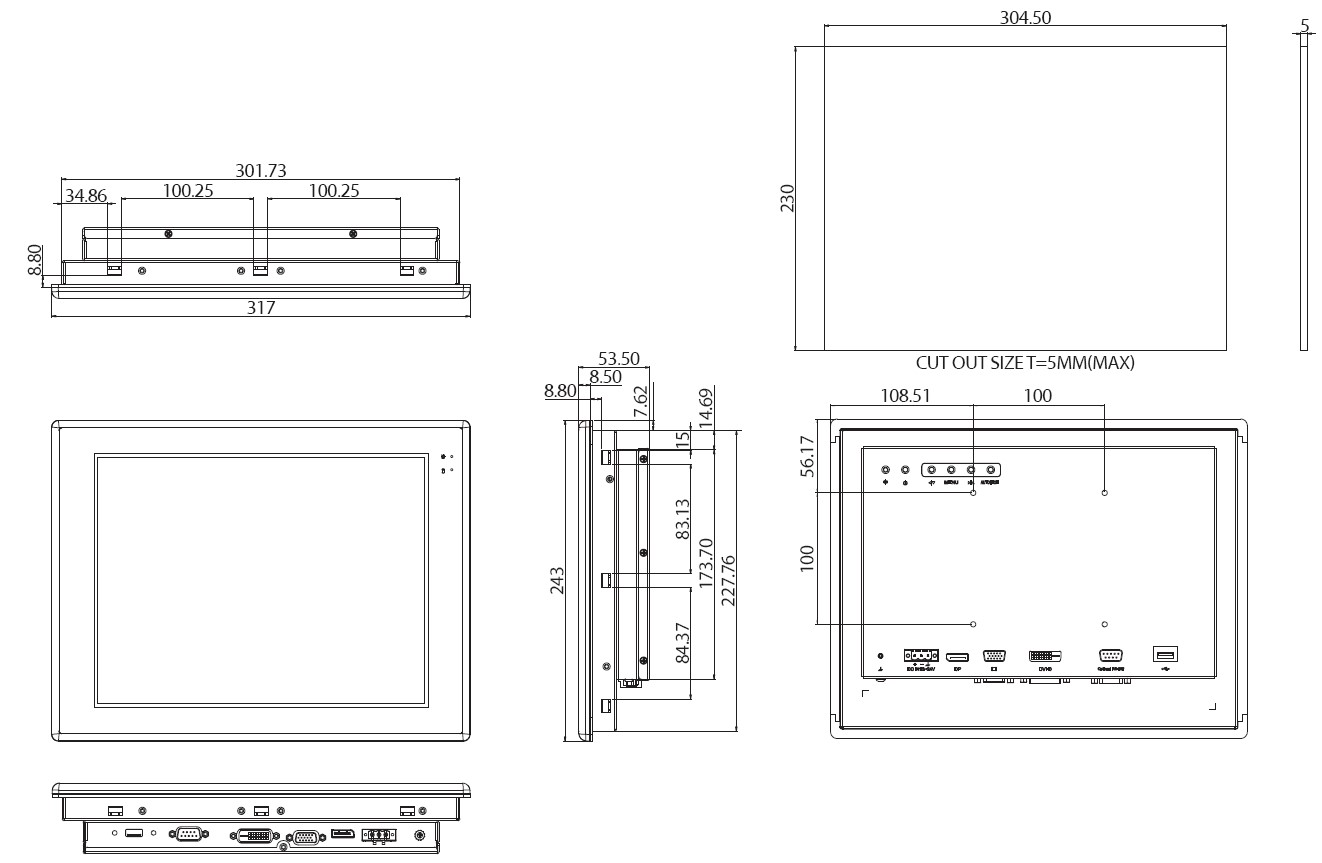

| DIMENSIONS | 317 x 243 x 53.5mm |
| WEIGHT | 2.8 kg |
| MOUNTING OPTIONS | Panel mount
Wall mount VESA 100mm x 100mm |
| CERTIFICATIONS | CE
FCC Class B |
