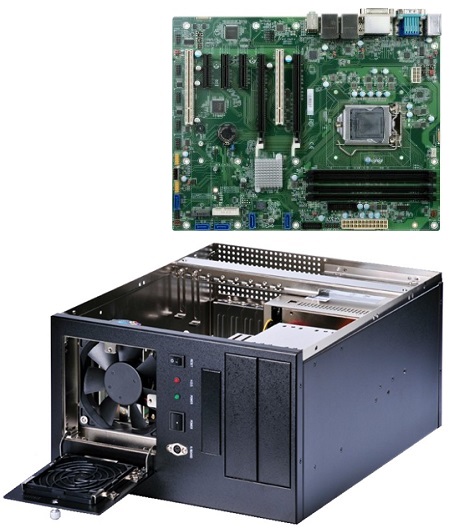

ICOM705 – 7 Slot ATX Systems

  • Wallmount/Desktop Industrial system
  • 16″ x 8″ x 13″ (D x H x W)
  • 5 PCIe & 2 PCI expansion slots
  • Supports Intel® 6th/7th Gen processors
  • Intel® Xeon® & Core™ CPUs
  • Intel® C236 chipset, RAID 0/1/5/10
  • 4 DDR4 ECC DIMMs up to 64GB
  • 3 Display Outputs: VGA, DVI-I, DP++
  • I/O: 2 LAN, 6 COM, 6 USB 3.1, 7 USB 2.0
  • Windows 7, 10 Pro / IoT & Linux
  • CPU Life Cycle Support Until Q1 2032
View specifications
Download data sheet

Specifications

PROCESSOR Xeon, 6th/7th Generation Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
CHIPSET Intel® C236 Chipset
MEMORY Four 288-pin ECC/Non-ECC DIMM up to 64GB

Dual Channel DDR4 2133/2400MHz

(Note: Core i5/i7 only support Non-ECC)
BIOS SPI 128Mbit
STORAGE Supports 2x external 5.25”, 1x external 3.5” & 1x internal 3.5” drive bays

Supports 5 x SATA3.0

Supports RAID 0/1/5/10

Optional removable hard disk drives or solid state disks
OPTICAL DVD±RW (±R DL) / DVD-RAM drive
WATCHDOG TIMER Programmable via S/W from 1 sec. to 255 sec.

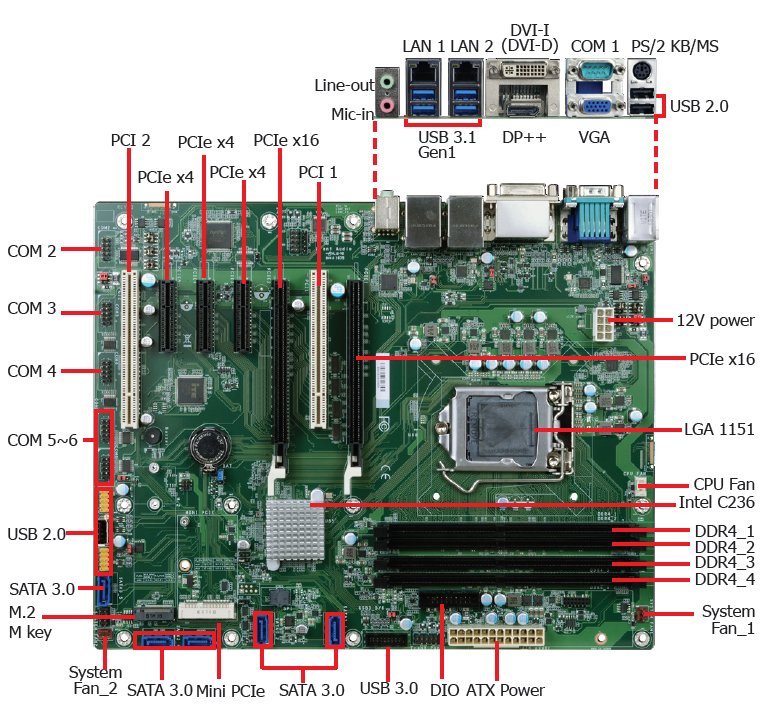

EXPANSION SLOTS 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
3 x PCIe x4 (Gen 3)
2 x PCI
1 x M.2 2260/2280 M key (SATA3.0/PCIe Gen3 x 2 NVMe)
1 x Mini PCIe (PCIe/mSATA/USB 2.0)
POWER SUPPLY OPTIONS 400W ~ 600W

90~250VAC

DC 12~48V

Redundant Power Supplies
AUDIO Realtek ALC888S-VD2-GR
ETHERNET 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)(only Xeon/Core i7/i5 supports iAMT)
OPERATING SYSTEMS SUPPORTED Windows 10 64-bit

Windows 7 32/64-bit

Windows 8.1 64-bit

Linux

(Note: 7th Gen CPUs only support Windows 10 64-bit & Linux)
DISPLAY 1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920×1200 @ 60Hz
DVI-D: resolution up to 1920×1200 @ 60Hz
DP++: resolution up to 4096×2160 @ 60Hz
MULTI-DISPLAY OUTPUTS Supports Triple Displays:

VGA + DVI-I (DVI-D signal) + DP++
REAR I/O PORTS 2 x GbE (RJ-45)

1 x RS-232/422/485 (RS-232 w/power (DB-9)

4 x USB 3.1

2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x VGA

1 x DVI-I (DVI-D signal)

1 x DP++

1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)

4 x RS-232 (2.54mm pitch)

2 x USB 3.1 Gen1

4 x USB 2.0 + 1 x Vertical USB 2.0 (type A)
FRONT CHASSSIS CONNECTORS PS/2 keyboard connector in front panel

Optional USB ports
DRIVE BAYS 2x external 5.25”

1x external 3.5”

1x internal 3.5”
MOTHERBOARD MTBF 537,588 hrs @ 25°C; 298,813 hrs @ 45°C; 184,762 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
ENVIRONMENT Operation Temperature: 0 °C to +50 °C continuous operation

Storage Temperature: -20 °C to +70 °C

Humidity: 10 % to 93 % @40 °C, non-condensing

(Dependent on overall system specification)
COOLING 12cm ball-bearing fan with replaceable filter
COLOUR Black (all other optional colours are available upon request)
DIMENSIONS: 330 x 406 x 204.2 mm (13 x 16 x 8 inches)
