  • 2U 19” Industrial rackmount system
  • 20.80″ Depth
  • 6 PCIe & 1 PCI Low profile slots
  • Supports Intel® 8th/9th Gen processors
  • Intel® Xeon® & Core™ CPUs
  • Intel® C246 Chipset, RAID 0/1/5/10
  • 4 DDR4 ECC DIMMs up to 128GB
  • 3 Display Outputs: VGA, 2 DP++
  • I/O: 2 LAN, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • Windows 10 Pro / IoT & Linux Support
  • CPU Life Cycle Support Until Q4 2033
View specifications
Download data sheet

Specifications

PROCESSOR 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Processors:

Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W

Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W

Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W

Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W

Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W

Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W

Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W

Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W

Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W

Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W

Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W

Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W

Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W



9th Generation Intel® Core™ LGA 1151 Socket Processors:

Intel® Xeon® E-2278GE (8 Cores, 16M Cache, up to 4.7 GHz); 80W

Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W

Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W

Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W

Intel® Core™ i7-9700K (8 Cores, 12M Cache, up to 4.9 GHz); 95W

Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W

Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W

Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W

Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W

Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W

Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
CHIPSET Intel® C246 Chipset
MEMORY Four 288-pin Non-ECC DIMM up to 128GB

Dual Channel DDR4 2400/2666MHz (Core™ i5/i7 only support non-ECC)
BIOS AMI SPI 128Mbit
STORAGE Supports 2 x 5.25” SATA drive bays & 2 x 3.5” drive bays

Supports 4 x SATA3.0 & RAID 0/1/5/10

Optional removable hard disk drives or solid state disks
OPTICAL DVD±RW (±R DL) / DVD-RAM drive
WATCHDOG TIMER Programmable via S/W from 1 sec. to 255 sec.

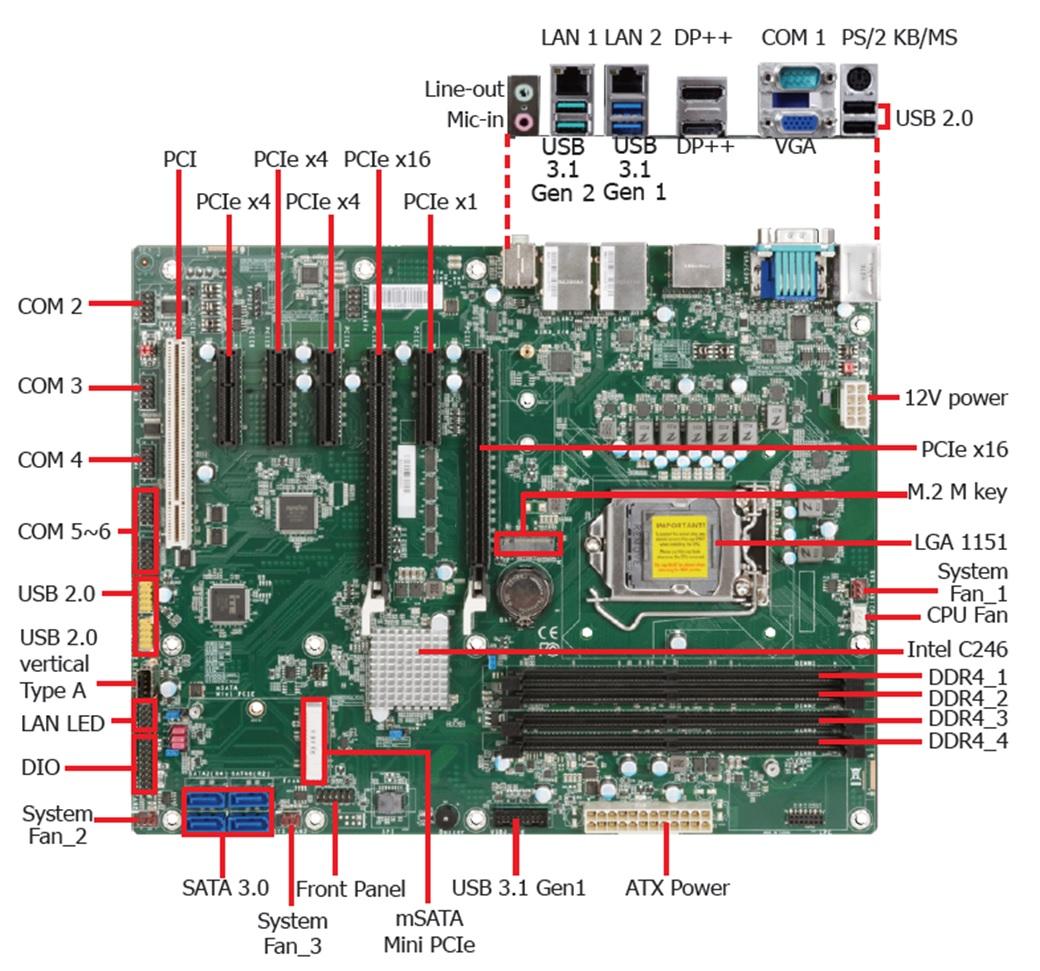

EXPANSION SLOTS Chassis supports 7 x low profile chassis expansion slots

Motherboard expansion slots: 2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals)

3 x PCIe x4 (Gen 3), 1 x PCIe x1 (Gen 3), 1 x PCI

1 x Full-sized Mini PCIe (PCIe/SATA/USB2.0), share with SATA 3(R5)

1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA)
POWER SUPPLY OPTIONS 400W ~ 600W 90~250VAC, DC 12~48V, Redundant Power Supplies
AUDIO Realtek ALC888S-VD2-GR
ETHERNET 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM/I219V with iAMT12.0 (10/100/1000Mbps)
OPERATING SYSTEMS SUPPORTED Windows 10 IoT Enterprise 64-bit
Linux Ubuntu 20.04
DISPLAY 1 x VGA: resolution up to 1920×1200 @ 60Hz
2 x DP++: resolution up to 4096×2160 @ 60Hz
MULTI-DISPLAY OUTPUTS Supports Triple Displays:

VGA + DP++ + DP++
REAR I/O PORTS 2 x GbE (RJ-45)

1 x RS-232/422/485 (RS-232 w/power (DB-9)

2 x USB 3.1 Gen 2

2 x USB 3.1 Gen 1

2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x VGA

2 x DP++

1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)

4 x RS-232 (2.54mm pitch)

2 x USB 3.1 Gen 1 (2.00mm pitch)

4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 Colay vertical Type A) (opt., MOQ required)
FRONT CHASSSIS CONNECTORS 2 x USB
DRIVE BAYS 2x 5.25” SATA & 2 x 3.5” drive bays
MOTHERBOARD MTBF 534,017 hrs @ 25°C; 298,488 hrs @ 45°C ; 184,547 hrs @ 60°C ; 133,068 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
ENVIRONMENT Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
COOLING 2x replaceable air filters

1x 8cm cooling fan

3x 6cm optional cooling fans
COLOUR Black (all other optional colours are available upon request)
DIMENSIONS: 482.6 (W) x 528.3 (D) x 88.9 (H); 19” (W) x 20.8 (D) x 3.5” (H)
