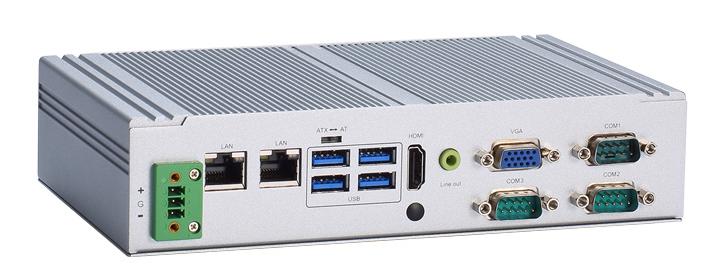

AES626A Fanless System
- Intel® Celeron® J6412 Quad Core
- 1 x HDMI & 1 x VGA dual-view display
- Fanless and compact design
- 1 x 2.5GbE & 1 x 1GbE LAN ports
- Wide operating temperature range -10°C to +60°C
- 9~ 36VDC wide range power input
- M.2 Key E for Wi-Fi / Wi-Fi 6
- Win10 IoT, Win11 IoT, Linux
Specifications
| PROCESSOR | Intel® Celeron® processor J6412, up to 10W |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| COM | 1 x RS-232/422/485 (COM1)
2 x RS-232 (COM2/3) |
| USB | 4 x USB 3.1 Gen2
2 x USB 2.0 |
| ETHERNET | 1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM)
1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT) |
| DISPLAY | 1 x HDMI 1.4b (lockable)
1 x VGA |
| EXPANSION | 1 x Full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIE + SATA)
1 x M.2 2230 Key E (PCIE + USB) |
| STORAGE | 1 x 2.5″ SATA HDD drive bay (up to 9.5 mm height)
1 x mSATA (enabled in BIOS setting) |
| OTHERS | 4 x Antenna opening |
| POWER SUPPLY | 9 to 36 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Extruded aluminium and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -10°C to +60°C (+14°F to +140°F) (with W.T. SSD/DRAM) |
| RELATIVE HUMIDITY | 10% – 95%, non-condensing |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |

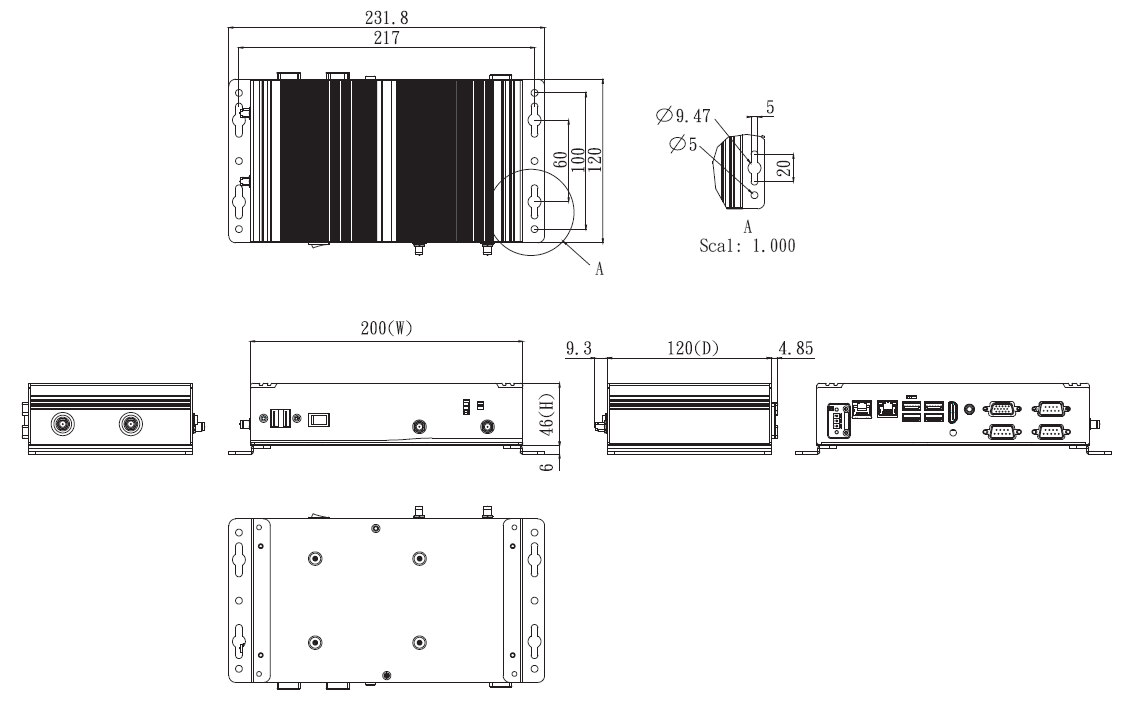

| DIMENSIONS (W X D X H) | 200 mm (7.87″) (W) x 120 mm (4.72″) (D) x 46 mm (1.81″) (H) |
| WEIGHT (NET/GROSS) | 1.2 kg (2.43 lb)/1.8 kg (3.97 lb) |
| CERTIFICATIONS | CE, FCC Class A, UKCA |
| OS SUPPORT | Win10 IoT, Win11 IoT, Linux |
| OPTIONS | DIN-Rail/VESA/Wall mount kit, Wi-Fi module, AC adapter |
