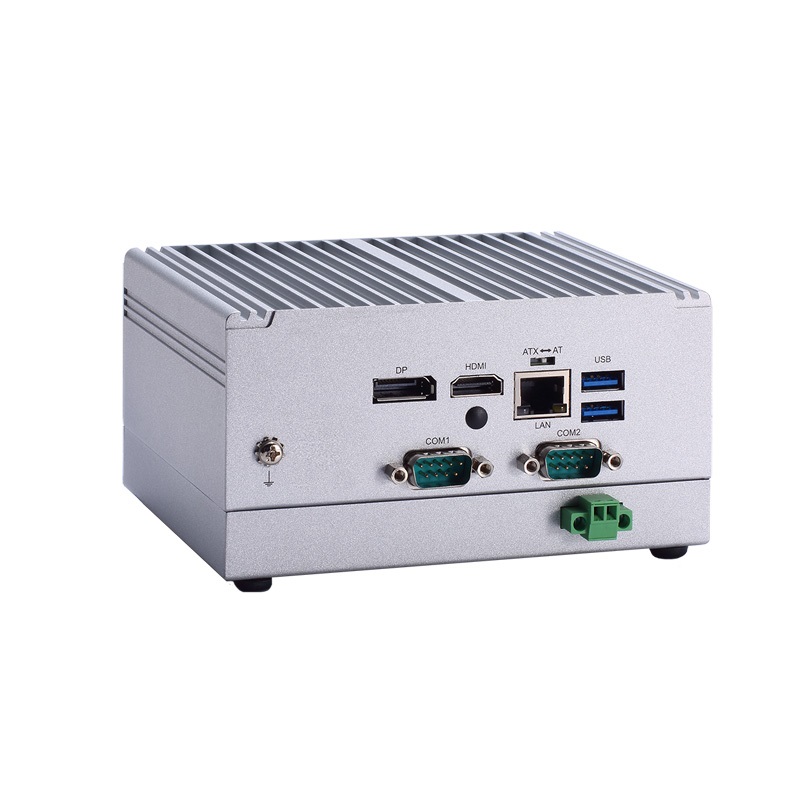

AES565-4305/8365 Fanless System
- Intel® Core™ i5-8365UE or Celeron® 4305UE processor
- Fanless and compact design
- DDR4-2400 SO-DIMM, up to 32GB
- 9 ~ 36 VDC wide range input
- 1 HDMI, 1 DP, 2 COM & 4 USB ports
- 1 x 2.5” HDD/SSD & 1 x M.2
- Wide operating temperature range -10°C to 50°C
Specifications
| PROCESSOR | Intel® Core™ i5-8365UE, 1.6 GHz or Intel® Celeron® 4305UE, 2.0 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 260-pin DDR4-2400 SO-DIMM, up to 32GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 2 x USB 2.0 & 2 x USB 3.1 Gen2 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT) |
| DISPLAY | 1 x DisplayPort & 1 x HDMI (lockable) |
| DIGITAL I/O | N/A |
| AUDIO | N/A |
| STORAGE | 1 x 2.5″ SATA HDD drive bay (max. up 9.5 mm height) |
| EXPANSION | 1 x M.2 Key E 2230 (for Wi-Fi) |
| OTHERS | 1 x ATX power switch, 1 x AT/ATX quick switch, 1 x Screw type VDC power input connector
2 x Antenna opening, 1 x Phoenix type VDC power input connector |
| POWER SUPPLY | 9 – 36 VDC |
| WATCHDOG TIMER | 65535 levels, 1 to 65536 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| DIMENSIONS (W X D X H) | 141.6 x 106 x 73 mm (5.57″ x 4.17″ x 2.87″) |
| WEIGHT (NET/GROSS) | 1.1 kg (2.43 lb)/1.8 kg (3.96 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES565-8365UE: Fanless embedded system with Intel® i5-8365UE processor
AES565-4305UR: Fanless embedded system with Intel® Celeron® 4305UE processor |
| OPTIONS | Wall mount kit, VESA arm kit, DIN-rail kit, 24V 120W adapter, Wi-Fi module |
