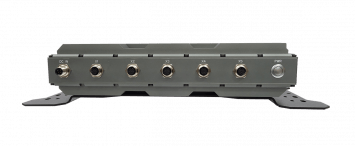

SR700-X3 – Military Systems
- Intel® 7th Gen Core™ i7-7820EQ
- High flexibility with upgradeable GPU
- Up to 32GB DDR4 SDRAM
- 2 x mPCIe, 1 x M.2 expansion slot
- Full IP65 Classified
- MIL-STD 810
- 9V to 36V DC, Options for 18V~36V MIL-461 EMI Filter
- Extended operating temp. -40°C to 60°C
Specifications
System |
|
|---|---|
| Model | SR700-X3 |
| CPU | 7-7820EQ (4x Cores, 8 x Threads, 3.0Ghz Turbo to 3.7Ghz) |
| GPU | NVIDIA®1050Ti CUDA 768 GDDR5-4GB
Quadro®P3000 CUDA 1280 GDDR5-6GB Quadro®RTX3000 CUDA 1920 GDDR6-6GB |
| Memory | Up to 32GB DDR4 SDRAM |
| Chipset | Intel® QM170/QM175 Chipset providing integrated USB 3.0 and supporting 7th generation Intel® Core™ processor families |
| Expansion Slot | 1 x Full-size mPCIe ( w/ SIM card supported ) 1 x Full-size mPCIe ( w/ mSATA supported ) 1 x M.2 ( M-Key ), 2280 storage devices support ( SATA ) |
Display |
|
| GPU | Intel® HD Graphics 530/630 |
Storage |
|
| mSATA | 1 x Full-size mPCIe up to 512 GB |
| M.2 | 1 x M.2 ( M-Key ), 2280 storage devices support up to 1 TB Capacity. |
| Ethernet | |
| 2 x Intel Gigabit Ethernet LAN Interfaces ( 10/100/1000Mbps ) | |
Front I/O |
|
| DVI | 1 x Rugged M12 connector |
| USB | 1 x Rugged M12 connector ( 2 x USB 2.0 Ports ) |
| Serial Port | 1 x Rugged M12 connector ( 1 x RS-232, 1 x RS-485 ) |
| Ethernet | 2 x Rugged M12 connectors |
| DC-IN | 1 x Rugged M12 connector |
Applications, Operating System |
|
| Applications | Commercial and Military Platforms Requiring Compliance to MIL-STD-810G Embedded Computing, Process Control, Intelligent Automation and manufacturing applications where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. Used in all aspects of the military |
| Operating System | Windows 10 32/64Bit Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20 |
Physical |
|
| Dimension ( W x D x H ) | 350 x 230 x 86 mm |
| Weight | 8.6 Kg ( 18.9 lbs ) |
| Chassis | Aluminium Alloy, Corrosion Resistant. |
| Finish | Anodic aluminium oxide ( Colour Iron grey ) |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts |
| Connectors | DC-IN : Phoenix Contact 1424136 Ethernet : Phoenix Contact 1424177 VGA : Phoenix Contact 1441833 USB : Phoenix Contact 1424177 COM : Phoenix Contact 1441833 |
| Ingress Protection | IP65 |
Mechanical and Environment |
|
| Reliability | No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001/2000 Certified Quality Program. |
| Operating Temp. | -40°C to 60°C |
| Storage Temp. | -40°C to 85°C |
Test Standard |
|
| MIL-STD-810G Test | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE and FCC compliance |
| Green Product | RoHS, WEEE compliance |
