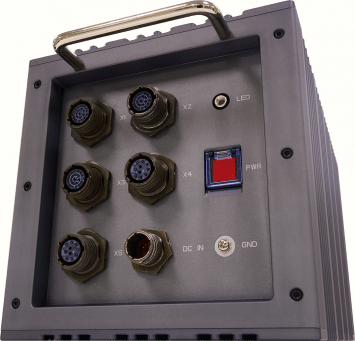

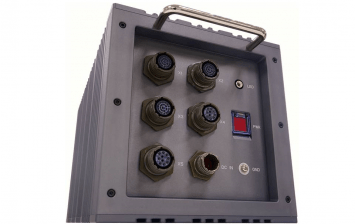

F1-30G4 – Military Systems
- SFF Rugged PCIe/104 computer with Intel®9th Gen.® Xeon® E-2276ML CPU
- 4 x NVIDIA® Quadro Embedded P5000 MXM GPU (2048 CUDA, 16GB GDDR5)
- DDR4-2666 Up to 128GB
- DC-DC 18V~36V, MIL-STD 461/1275
- MIL-STD 810 Shock up to 75Grms
- Operating Temp. -40°C~+55°C
Specifications
|
System |
||
|---|---|---|
| Model | F1-30G4 | |
| CPU Type | Intel® Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz) | |
| Memory type | 4 x DDR4 2666MHz up to 128GB | |
| GPU Type | 4 x NVIDIA Quadro Embedded P5000 MXM
(2048 CUDA cores, 16GB GDDR5 each GPU) |
|
|
Storage |
||
| Storage(1) | 1 x M.2 (M-key, type:2280, SATA/PCIe 3.0×4 NVMe) | |
| Storage(2) | Support up to 4x SATAIII (RAID 0,1,5) SSD backup storage | |
|
I/O |
||
| COM | 2 | |
| Ethernet | 4 | |
| USB | 2 | |
| DVI | 1 | |
| DC-in | 1 | |
| Power Button | 1 x Waterproof Button with Backlight | |
| Connectors | Amphenol D38999 Connectors or M12 Connectors by request | |
|
Mechanical |
||
| Housing | Aluminium | |
| Weight | 16 Kg (35.24 lb) | |
| Ingress Protection | IP65 | |
| Dimension (W x H x D) | 190.5 x 230 x 320.5 mm | |
|
Power |
||
| Input Voltage | DC-IN 18V~36V, 600W Military Standard Power Module
with Cosel Solution |
|
|
Environmental |
|||
|---|---|---|---|
| Operating Temp. | -40°C to +55°C | ||
| Storage Temp. | -40°C to +85°C | ||
| Relative Humidity | Up to 95%RH @40°C, non-condensing | ||
| Ingress Protection | Designed for compliance with IP65, MIL-STD-810G | ||
|
Test Standard |
|||
| EMI/EMC | Designed to meet MIL-STD-461 | ||
| Temperature | Designed to meet MIL-STD-810 | ||
| Vibration & Shock | Designed to meet MIL-STD-810 | ||
|
Stackable Module |
|||
| SK506 | PCIe/104(FPE module) Expand 4 extra 10/100/1000mbps Gigabit Ethernet | ||
| SK502 | PCIe/104(FPE) Dual 10GbE SFP+ module | ||
| SK509 | PCIe/104(FPE) I/O module | ||
| SK220 | PCIe/104(FPE) MXM Graphics Card for 4 DisplayPort Module Support NVIDIA® GTX1080M/QUADRO P5000 Graphics Card | ||
| SK401 | Storage carrier with one 2.5″ HDD/SSD socket and two mSATA socket PCIe/104 SSD/mSATA/Mini PCIe Carrier, support 1x 2.5″ SSD + 2x mini PCIe LAN module (MT321/MT321R) | ||
