Specifications

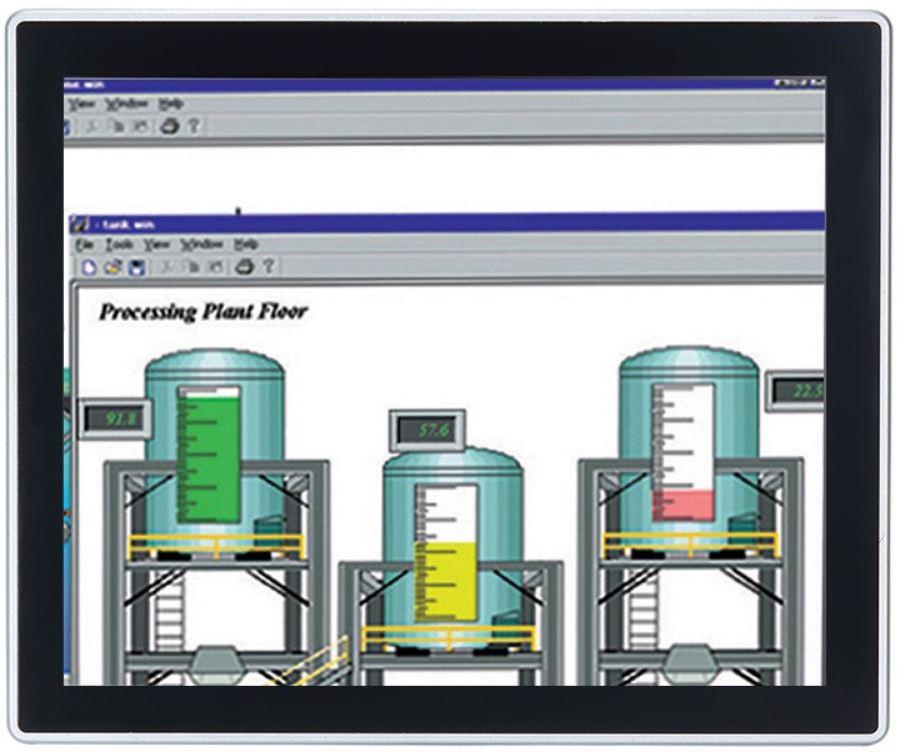

| PANEL | 17″ SXGA TFT LCD
350 nits 1280 x 1024 pixels |
| PROCESSOR | LGA1151 socket 7/6th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor |
| CHIPSET | Intel® H110 |
| SYSTEM MEMORY | 2 x 260-pin SO-DIMM DDR4-2400, up to 32GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i219-V & i211-AT) |
| DISPLAY | 1 x HDMI v1.4
1 x VGA (up to 1920 x 1200 60Hz) 1 x DisplayPort v1.2 (DP++) |
| AUDIO | 1 x Audio (Mic-in & Line-out) |
| STORAGE | 1 x 2.5″ SATA HDD (9.5 mm height) |
| EXPANSION | 1 x Half-size PCI Express Mini Card slot with mPCIe
1 x Full-size PCI Express Mini Card slot with mSATA |
| OTHERS | WLAN module
WLAN antenna |
| TOUCHSCREEN | 5-wire flat resistive touch |
| FRONT BEZEL | Aluminium w/ IP65/NEMA 4 rugged protection |
| POWER SUPPLY | DC terminal block: +12V/+19V/+24V
AC adapter: 19V, 6.32A |
| POWER CONSUMPTION | 120W (include 35W processor) |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +40°C (+32°F to +104°F) |
| RELATIVE HUMIDITY | 10% to 90% @ 40°C; non-condensing |
| VIBRATION | 1G, 5 – 500 Hz, random for 2.5″ SATA HDD |

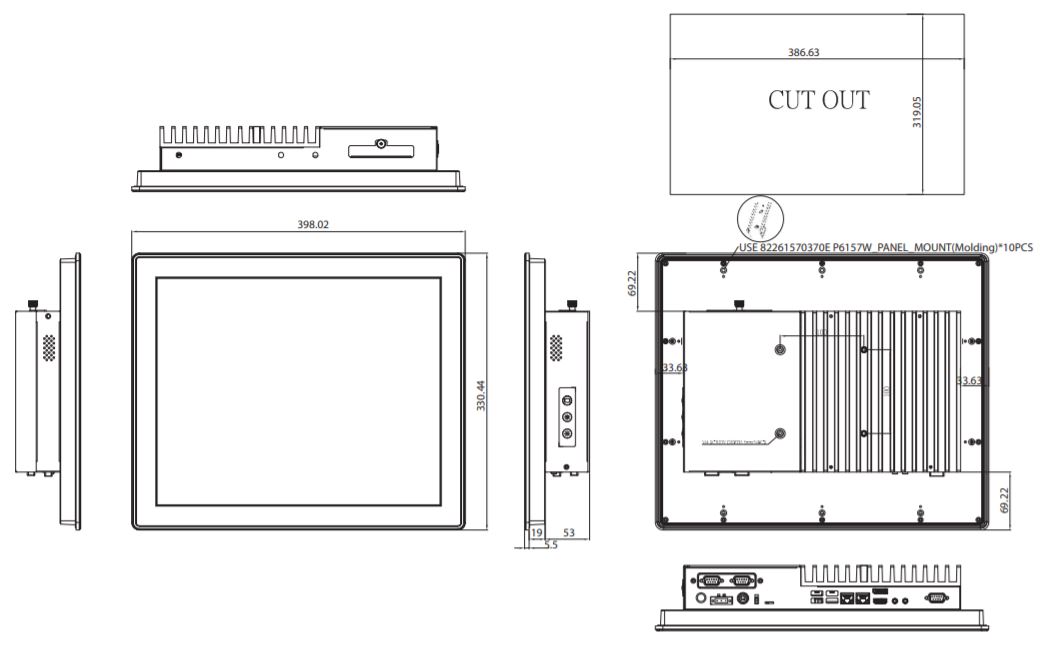

| DIMENSIONS (W X D X H) | 398.02 x 77.5 x 330.44 mm (15.67″ x 3.05″ x 13.01″) |
| WEIGHT (NET/GROSS) | 6.7 kg (14.77 lb)/9.0 kg (19.84 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows® 7, Windows® 8.1, Windows® 10 |
| MOUNTING | Panel mount
VESA arm Desktop stand Wall mount |
| PART NUMBERS | PPC2028 – With Adapter and Panel Mount Kit
17” SXGA TFT fanless touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™, Pentium®, Celeron® processor, 5-wire flat resistive touch screen and redundant power input with 1 x terminal block and 1x 4-pin din connector PPC2028-01 – Without Adapter and Panel Mount Kit 17” SXGA TFT fanless touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™, Pentium®, Celeron® processor, 5-wire flat resistive touch screen and redundant power input with 1 x terminal block and 1x 4-pin din connector |
| OPTIONS | 4G LTE kit
Wi-Fi kit Wi-Fi + BT kit Wall mount kit Panel mount kit AC Adapter 120W 19V/6.32A |
