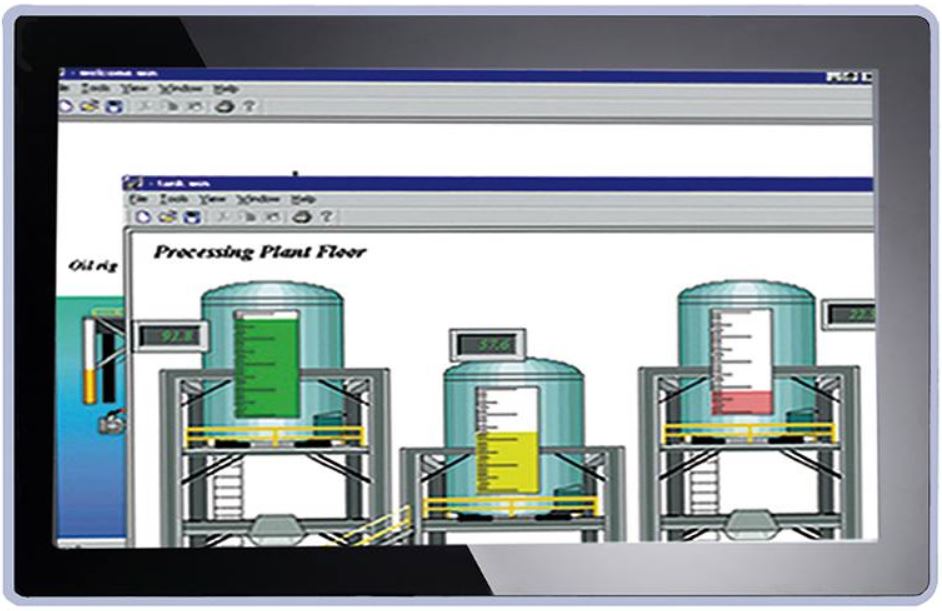

PPC2027 – Panel PCs
- 18.5″ 1366 x 768 resolution
- PCAP or Resistive touchscreen
- Intel® Pentium® N3710 processor

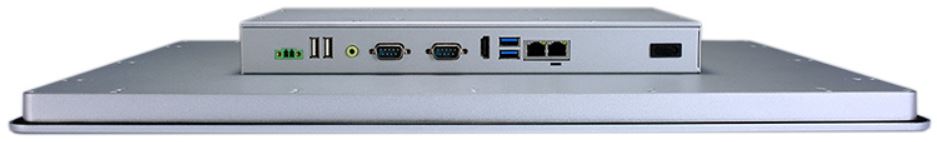

- 2 LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM
- 2.5″ SATA HDD and mSATA
- IP65-rated front bezel
- Panel/wall/VESA mounting
- 24V DC input
- Supports Windows 7 & Windows10
Specifications
| PANEL | 18.5″ WXGA TFT LCD
250 nits 1366 x 768 pixels |
| PROCESSOR | Intel® Pentium® processor N3710 1.6 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232
1 x RS-232/422/485 |
| USB | 2 x USB 3.0
2 x USB 2.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| AUDIO | 1 x Audio (Line-out) |
| STORAGE | 1 x 2.5″ SATA HDD (9.5 mm height)
1 x mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot with mSATA
1 x Full-size PCI Express Mini Card slot with SIM |
| OTHERS | 1 x Switch for power on/off (ATX) |
| TOUCHSCREEN | Projected capacitive multi-touch
Flat resistive touch (optional) |
| FRONT BEZEL | IP65 front bezel |
| POWER SUPPLY | DC version: 24 VDC |
| POWER CONSUMPTION | 48W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) |
| RELATIVE HUMIDITY | 20% to 90% @ 40°C; non-condensing |
| VIBRATION | 1G, 10 – 500 Hz, random for 2.5″ SATA HDD |

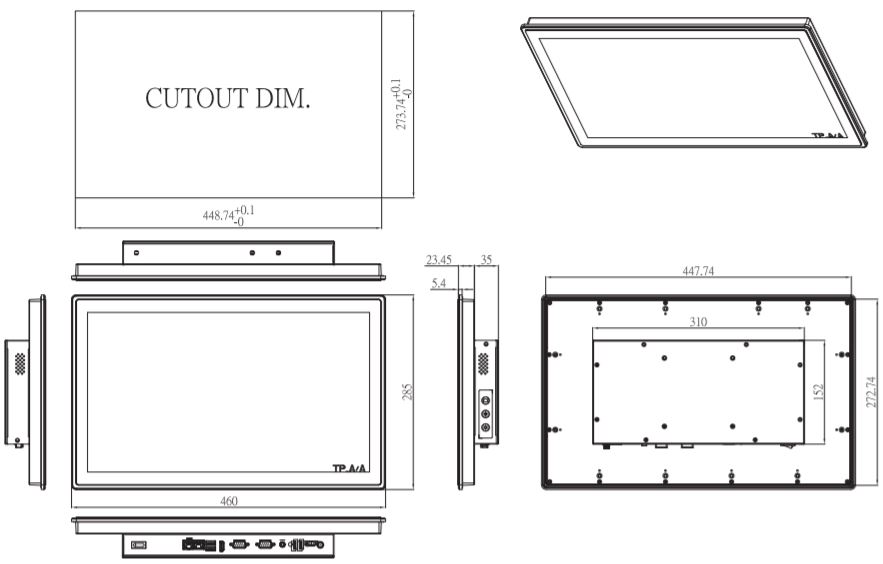

| DIMENSIONS (W X D X H) | 460.8 x 58.5 x 285 mm (18.11″ x 2.3″ x 11.22″) |
| WEIGHT (NET/GROSS) | 5.8 kg (12.8 lb)/8.2 kg (18.1 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows® 10 |
| MOUNTING | Panel mount
VESA arm Desktop stand Wall mount |
| PART NUMBERS | PPC2027:
18.5″ WXGA TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz processor, projected capacitive multi-touch screen and 24 VDC terminal block connector
PPC2027-01: 18.5″ WXGA TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz processor, 5-wire resistive screen, and 24 VDC terminal block connector |
| OPTIONS | Wi-Fi kit
4G kit Wall mount kit AC Adapter |
Downloads
