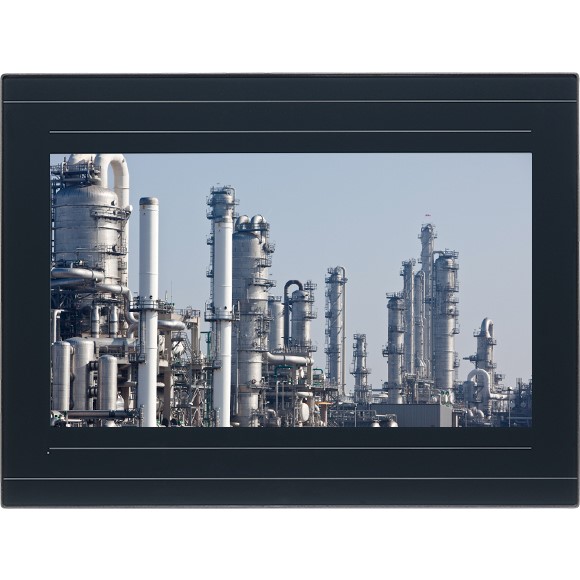

PPC1018 – Panel PCs
- 18.5” TFT HD 16:9 Industrial Panel
- Intel® Celeron® J3455 processor
- Metal housing, robust aluminium bezel
- 10 points P-Cap multi-touch panel
- 2 LAN/2 DisplayPort/USB 3.0 & USB 2.0
- 1 x mPCIe, 1 x M.2, 1 x RS232/422/485
- DDR3L 4GB/2.5” HDD bracket
- IP66 compliant front panel
- Panel/wall/stand/VESA mount
- Power input 24VDC
Specifications
| PANEL | LCD size: 18.5”, 16:9
Resolution: FWXGA 1366 x 768 Luminance: 400cd/m2 Contrast ratio: 1000 LCD colour: 16.7M Viewing angle: 80(U), 80(D), 85(L), 85(R) Backlight: LED |
| TOUCH SCREEN | Ten points P-Cap (projected capacitive touch)
Touch light transmission: 87% Anti-scratch surface: 7H hardness Touch interface: USB |
| SYSTEM | CPU: on board Intel® Celeron® J3455 Quad Core processor, 1.50GHz
BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 8GB DDR3L (default), support up to 8GB DDR3L-1866, non-ECC and un-buffered Storage device – 1 x Internal M.2 2242 – 1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module) Front LED indicator to show operating status |

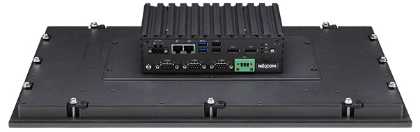

| REAR I/O | Ethernet: 2 x RJ45
Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: Power/HDD/ GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232 |
| AUDIO | N/A |
| ETHERNET | LAN chip: dual Intel® I210-AT Gigabit LAN
Ethernet interface: 10/100/1000 based-Tx Ethernet compatible |
| MECHANICAL & ENVIRONMENTAL | Colour: Pantone black silver front bezel

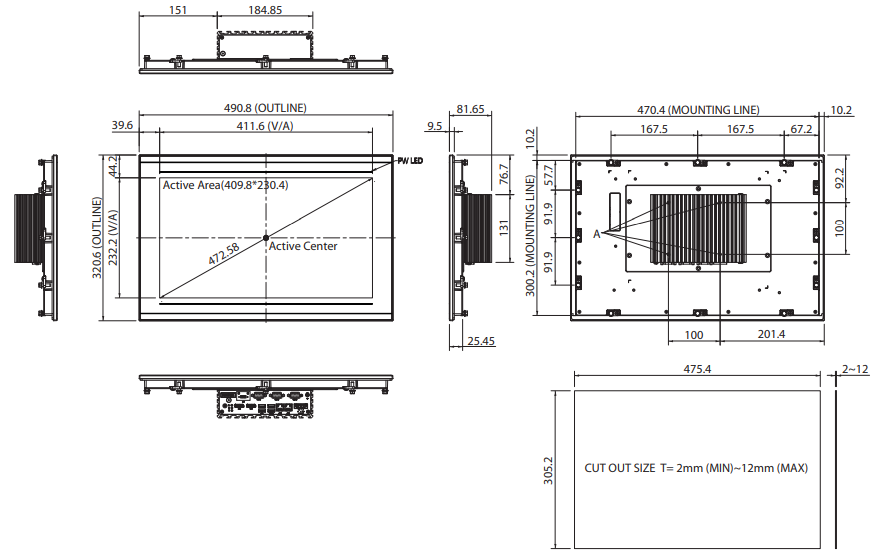

IP protection: IP66 front Mounting: panel/wall/stand/VESA 100mm x 100mm System with panel mounting kit w/o panel mounting hole Power – Power input: 24 VDC – Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration – IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock – IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms Temperature – Operating temperature: 0°C to 50°C – Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 490.8 x 320.6 x 81.65 mm Weight: 8.1 kg |
| CERTIFICATIONS | CE (including EN61000-6-2/EN61000-6-4)
FCC class A |
| OS SUPPORT | Windows 10 IoT 64-bit |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
