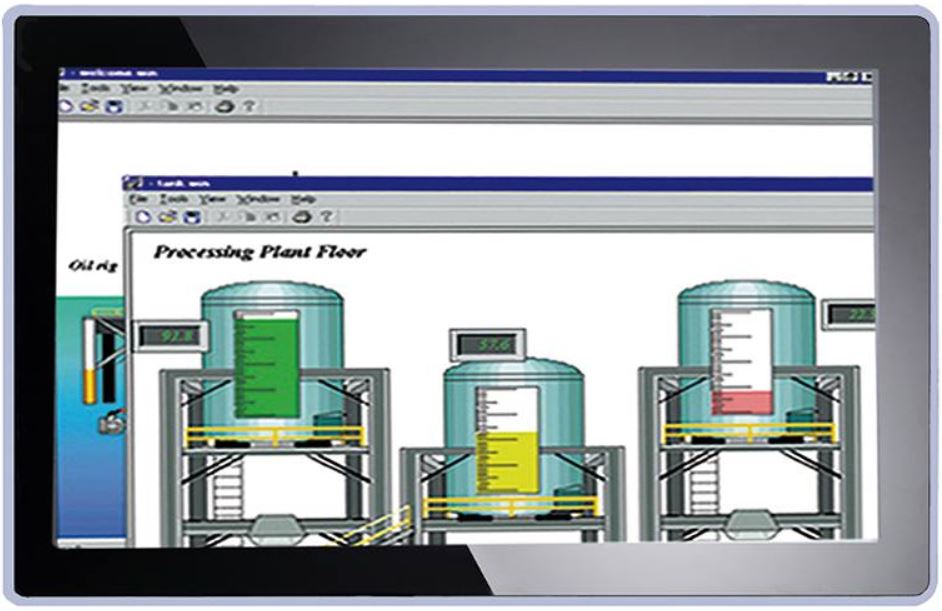

PPC2026 – Panel PCs
- 21.5″ 1920 x 1080 resolution
- PCAP or Resistive touchscreen
- Intel® Core™, Celeron® & Pentium®
- Intel® H110 chipset
- 2 LAN, 4 USB 3.0 and 2 COM
- 2.5″ SATA HDD and mSATA
- IP65-rated front bezel
- Panel/wall/VESA mounting
- Swappable hard drive design
- Supports Windows 7 & Windows10
Specifications
| PANEL | 21.5″ FHD TFT
250 nits 1920 x 1080 pixels |
| PROCESSOR | LGA1151 socket 7/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor |
| CHIPSET | Intel® H110 |
| SYSTEM MEMORY | 2 x 260-pin DDR4-2400 SO-DIMM, up to 32GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 |
| USB | 4 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i219-V & Intel® i211-AT) |
| DISPLAY | 1 x HDMI v1.4
1 x VGA (up to 1920 x 1200 60Hz) 1 x DisplayPort v1.2 (DP++) |
| AUDIO | 1 x Audio (Mic-in & Line-out) |
| STORAGE | 1 x 2.5″ SATA HDD (9.5 mm height) |
| EXPANSION | 1 x Half-size PCI Express Mini Card slot with mPCIe
1 x Full-size PCI Express Mini Card slot with mSATA or mPCIe |
| OTHERS | Speaker
WLAN Module WLAN antennas |
| TOUCHSCREEN | 10-point projected capacitive multi-touch
5-wire flat resistive touch |
| FRONT BEZEL | Aluminium w/ IP65/NEMA 4 rugged protection |
| POWER SUPPLY | DC terminal block: +12V/+19V/+24V
AC adapter: 19V, 6.32A |
| POWER CONSUMPTION | 105W |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +45°C (+32°F to +113°F) |
| RELATIVE HUMIDITY | 10% to 90% @ 40°C; non-condensing |
| VIBRATION | 1G, 5 – 500 Hz, random for 2.5″ SATA HDD |

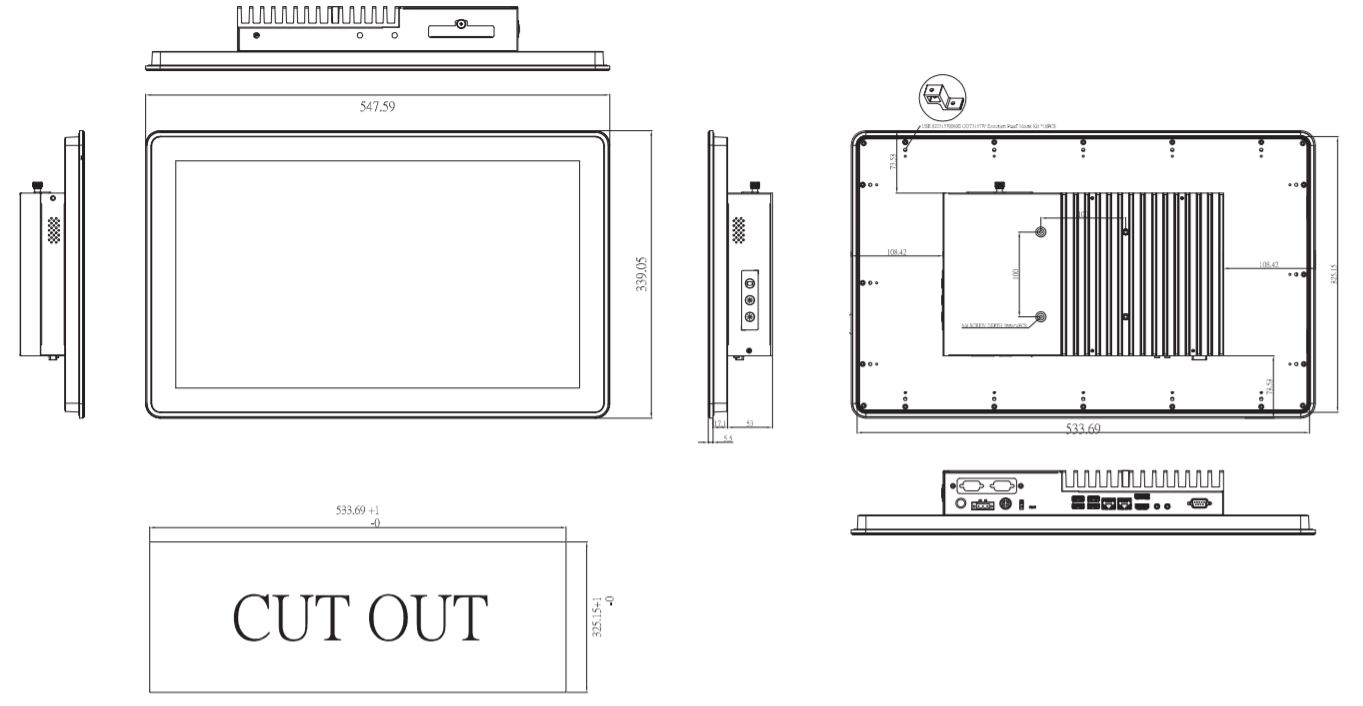

| DIMENSIONS (W X D X H) | 547.59 x 339.05 x 75.6 mm (21.56″ x 13.49″ x 2.98″) |
| WEIGHT (NET/GROSS) | 8.4 kg (18.5 lb)/11.3 kg (24.9 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows® 7, Windows® 8.1, Windows®10 |
| MOUNTING | Panel mount
VESA arm Desktop stand Wall mount |
| PART NUMBERS | PPC2026:
21.5” FHD TFT fanless multi-touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™, Pentium®, Celeron® processor, 10-point projected capacitive multi-touch screen and 12/19/24 VDC terminal block connector. With adapter and Panel Mount kit
PPC2026-01: 21.5” FHD TFT fanless multi-touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™, Pentium®, Celeron® processor, 10-point projected capacitive multi-touch screen and 12/19/24 VDC terminal block connector. Without adapter and Panel Mount kit
PPC2026-02: 21.5” FHD TFT fanless touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™, Pentium®, Celeron® processor, 5-wire flat resistive touch screen and 12/19/24 VDC terminal block connector. With adapter and Panel Mount kit |
| OPTIONS | Wi-Fi kit
Wall mount kit AC Adapter Panel mount kit |

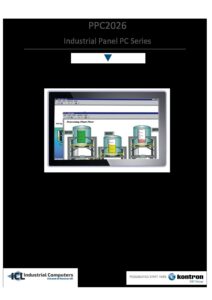

Downloads
