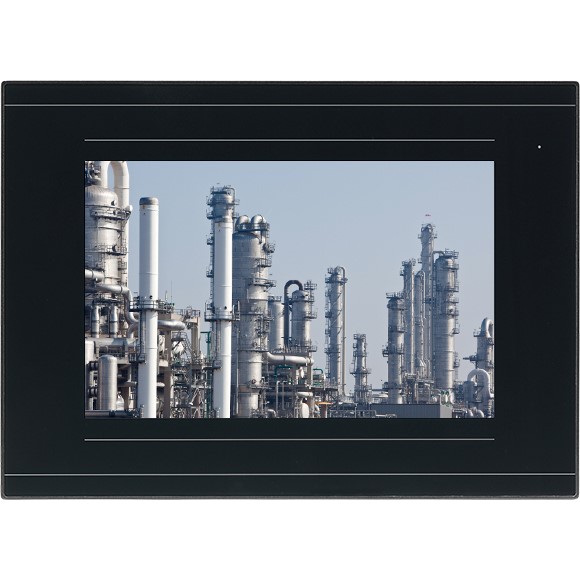

PPC1014 – Panel PCs

10.1” TFT WXGA 16:9 Industrial Panel
Intel® Celeron® J3455 processor
Metal housing, robust aluminium bezel
10 points P-Cap multi-touch panel
2 LAN/2 DisplayPort/USB 3.0 & USB 2.0
1 x mPCIe, 1 x M.2, 1 x RS232/422/485
DDR3L 4GB/2.5” HDD bracket
IP66 compliant front panel
Panel/wall/stand/VESA mount
Power input 24VDC

Specifications

PANEL	LCD size: 10.1”, 16:9 Resolution: WXGA 1280 x 800 Luminance: 300cd/m2 Contrast ratio: 1300 LCD colour: 262K Viewing angle: 85 (U), 85 (D), 85 (L), 85 (R) Backlight: LED
TOUCH SCREEN	Ten points P-Cap (projected capacitive touch) Touch light transmission: 90% Anti-scratch surface: 7H hardness Touch interface: USB
SYSTEM	CPU: on board Intel® Celeron® J3455 Quad Core processor, 1.50GHz BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1866, non-ECC and un-buffered Storage device: – 1 x Internal M.2 2242 – 1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module) Front LED indicator to show operating status

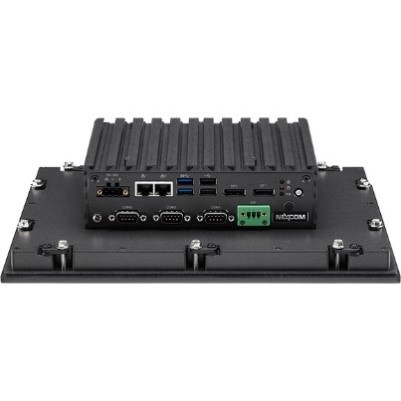

REAR I/O	Ethernet: 2 x RJ45 Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: Power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232
AUDIO	N/A
ETHERNET	LAN chip: dual Intel® I210-IT Gigabit LAN Ethernet interface: 10/100/1000 based-Tx Ethernet compatible

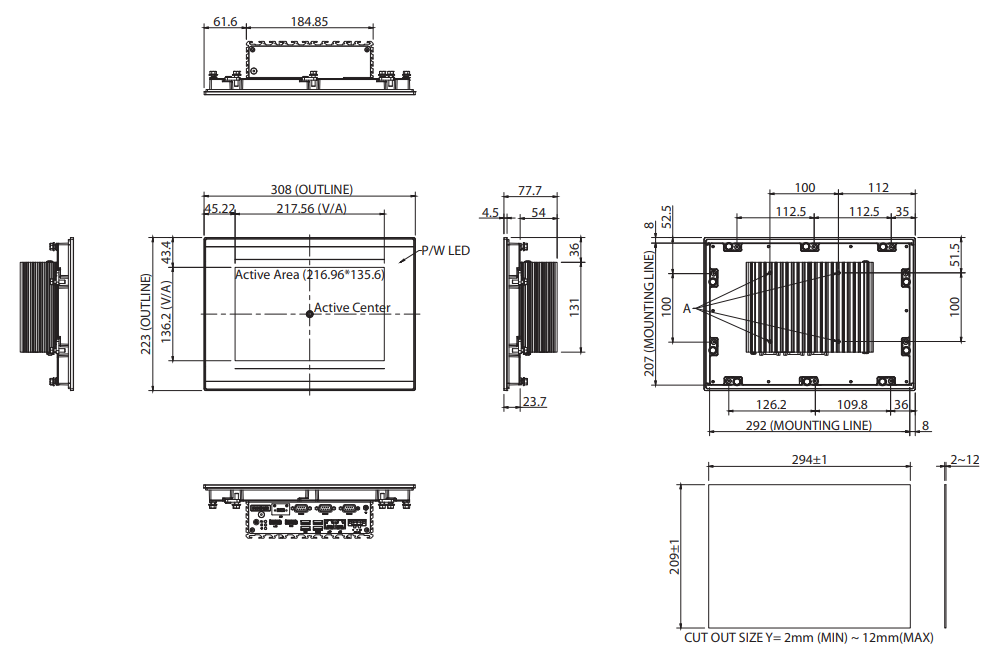

MECHANICAL & ENVIRONMENTAL	Colour: Pantone black silver front bezel IP protection: IP66 front Mounting: panel/wall/stand/VESA 100mm x 100mm System with panel mounting kit w/o panel mounting hole Power – Power input: 24 VDC – Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration – IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock – IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms Temperature – Operating temperature: 0°C to 50°C – Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 308 x 223 x 77.7mm Weight: 3.6 kg
CERTIFICATIONS	CE (including EN61000-6-2/EN61000-6-4) FCC class A
OS SUPPORT	Windows 10 64-bit
OPTIONS	24V, 60W AC/DC power adapter w/o power cord
