PPC2032 – Panel PCs
- 18.5″ 1920 x 1080 FHD resolution
- Intel® 8/9th Gen Core or Celeron
- Capacitive or Resistive touchscreen
- I/O: 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DisplayPort, and 1 VGA
- 1 x 2.5″ SSD bay
- Supports up to 32GB of memory
- IP65 aluminium front bezel
- Wide operating temperature range
- Supports panel and VESA mount
Specifications
| PANEL | 18.5″ FHD TFT LCD
500 nits 1920 x 1080 pixels |
| PROCESSOR | LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors, TDP 35W |
| CHIPSET | Intel® H310 |
| SYSTEM MEMORY | 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB |
| BIOS | AMI |
| COM | 1 x 9-pin D-sub Male for RS-232
1 x COM for RS-232/422/485 |
| USB | 2 x USB 3.0
2 x USB 2.0 |
| ETHERNET | 2 x 10/100/1000 Mbps Ethernet |
| AUDIO | 1 x Audio (Line-out) |
| STORAGE | 1 x mSATA
1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm height; removable) |
| EXPANSION | 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
1 x M.2 Key E 2230 (for Wi-Fi) |
| OTHERS | TPM 2.0
1 x Phoenix type connector for DC power input 1 x Switch for power on/off (ATX) 1 x Remote power switch 1 x AT/ATX switch (DC type only) 1 x Grounding hole (DC Version) |
| TOUCHSCREEN | Projected capacitive multi-touch
5-wire resistive touch |
| FRONT BEZEL | IP65 front bezel |
| POWER SUPPLY | +12V/+19V/+24VDC
1 x Terminal block |
| POWER CONSUMPTION | 120W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) |
| RELATIVE HUMIDITY | 20% to 90% @ +40°C; non-condensing |
| VIBRATION | 1G, 10 – 500 Hz, random for 2.5″ SATA HDD |

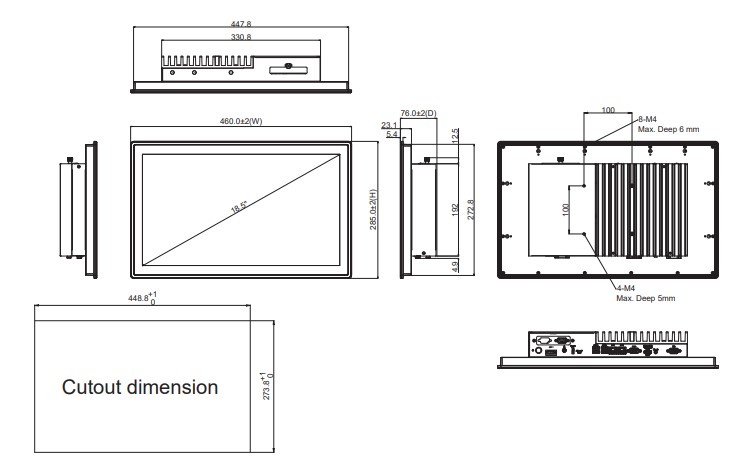

| DIMENSIONS (W X D X H) | 460.8 x 77 x 285 mm (18.11″ x 3.04″ x 11.22″) |
| WEIGHT (NET/GROSS) | 7.8kg (17.2lb)/10.2kg (22.5lb) |
| CERTIFICATIONS | CE, EN 61000-6-2, EN 61000-6-4 |
| OS SUPPORT | Windows® 10 IoT Enterprise, Windows® 10 Pro |
| MOUNTING | Panel mount
VESA mount Wall mount |
| PART NUMBERS | PPC2032: 18.5″ FHD TFT fanless touch panel computer with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W), projected capacitive multi-touch screen, and 24 VDC terminal block with small Phoenix connector
PPC2032-01: 18.5″FHD TFT fanless touch panel computer with LGA1151 9th/8th gen Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W), 5-wire resistive touch screen, and 24 VDC terminal block with small Phoenix connector |
| OPTIONS | Wi-Fi kit
Wall mount kit AC Adaptor 24V/120W, wire only |
