ICOM-SC3 – Embedded Box PC
- Compact 250x52x191mm system
- Intel® Celeron® Processor J4005 SoC
- Integrated Intel® UHD Graphics
- 2 DDR4 SO-DIMMs up to 24GB
- Front system USB ports
- I/O: 2 LAN, 2 USB 2.0 & 2 USB 3.1 Gen1
- 2 Display ports
- 1 PCIe x4, 2 M.2 & 1 Mini-PCIe slots
- Windows 10 Pro / IoT & Linux Support
- Horizontal or Vertical operation
- Wallmount bracket
Specifications
| PROCESSOR | Intel® Celeron® Processor J4005 (DC @2.0 GHz/2.7 GHz)
(Other processor options available, please contact us for more details) |
| CHIPSET | SoC |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| MEMORY | Two DDR4 2400MHz SO-DIMM up to 24GB |
| WATCHDOG | 2-Level WD (BIOS Boot WD / OS WD) |
| STORAGE | 1 x 2.5” HDD/SSD drive bay
2 x Serial ATA (SATA) III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| EXPANSION SLOTS | 1 x M.2 Key-E (2230), 1x Mini-PCIe
1 x M.2 Key B socket (2242/2260/2280) 1 x Mini-PCIe (half-size/full-size) 1 x PCIe x4 |
| POWER SUPPLY | External DC-in, 8V~36V
Optional 65W AC adapter |
| AUDIO | Realtek ALC671 |
| ETHERNET | 1 x Intel® i210 with 10/100/1000 MBit/s,
1 x Realtek RTL8111G with 10/100/1000 Mbit/s |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Linux |
| GRAPHICS CONTROLLER | Integrated Intel® UHD Graphics 600/605 |
| DISPLAY | 2 x DP V1.2a |

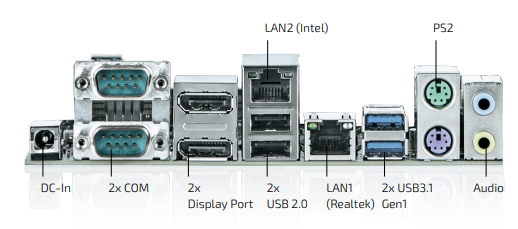

| REAR I/O | 1 x DC-in jack
2 x RS232/422/485 COM 2 x Display Port 2 x LAN 2 x USB 2.0 2 x USB3.1 PS2 Audio |
| FRONT CHASSSIS CONNECTORS | 1 x Power switch
2 x USB |
| ENVIRONMENT | Passive heatsink (fanless): 0 °C ~ 35 °C*
Active heatsink (with Fan): 0 °C ~ 50 °C* 5 % – 85 % relative humidity (non-condensing) * Dependant on overall system specifications |
| COMPLIANCE | CE Class B, Industrial Immunity (EN 61000-6-2), FCC Class B (verified) |
| COOLING | 1 x HDD/SSD System fan
MTBF: 70.000 hours @ 40 °C Operating Temperature: -10 °C ~ 70 °C PWM (4 pin), 40 x 40 x 10mm 1750 – 5.500 rpm (nominal) Two ball bearing |
| MECHANICAL | Mini-ITX form factor system
Dimensions: 250 x 52 x 191 mm (W x H x D) Colour: Black |
| OPTIONS | Active cooler
AC Adapter 19V / 3.42A, 65W – w/o power cord Internal 12V 65W PSU PCIe riser card |
