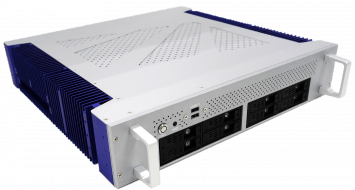

HORUS428A – Military Systems
- MIL-STD 810G Compliance
- 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE (2.4GHz, up to 3.4GHz, 4-cores)
- 4 x DDR4 XR-DIMM up to 64GB
- SAS RAID Card
- 4 x RJ45 LAN, 6 x USB, 1 x Display port, 1 x HDMI
- 8 x 2.5″ Easy swap SSD/HDD Tray
- Extended Temperature -40°C~+60°C ( 0~+50 for RAID Module)
- NVIDIA® GTX 1050 Ti(CUDA Cores: 768)/NVIDIA® RTX 2060S (CUDA Cores: 2176) GPU
Specifications
Operating Temp. |
|
|---|---|
| 0°C to 50°C | |
System |
|
| CPU | 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE |
| GPU | NVIDIA® GTX 1050 Ti(CUDA Cores: 768)
NVIDIA® RTX 2060S (CUDA Cores: 2176) |
| Chipset | Q170 |
| Memory Type | 4 x DDR4 XR-DIMM up to 64GB |
| BIOS | AMI® SPI BIOS |
| Expansion Slot | 4 x mPCIe (two support with mSATA) 1 x PICex4 |
| Storage Device | 8 x 2.5″ SAS HDD/SSD Tray |
Display |
|
| Chipset | Intel® HD Graphics 500 Series |
| Display Type | 1 x DisplayPort ; 1 x HDMI |
Ethernet |
|
| Chipset | 3 x Intel® I210-IT ; 1 x I219-LM GbE LAN (support 10/100/1000Mbps for RJ45 port) |
| WOL | Yes |
| Boot from LAN | Yes for PXE |

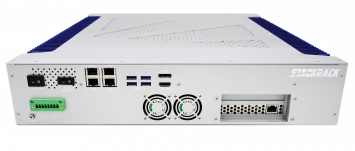

Rear I/O |
|
| Ethernet | 4 x RJ45 Gigabit Ethernet LAN Interfaces |
| Display | 1 x HDMI ; 1 x DisplayPort |
| FAN | 2 x Exhaust FAN |
| USB | 4 x USB3.0 standard-A connectors |
| DC-IN | 12V DC-IN, 8-Pin Terminal block |
Front I/O |
|
| Button | 1 x Power Button w/Indicator LED |
| Indicator LED | 1 x HDD LED |
| USB | 2 x USB2.0 standard-A connectors |
| 2.5″ SSD/HDD Tray | 8 (Height up to 15mm) |
OS support list |
|
| Windows | Windows 8 x32/x64、Windows 8.1 x32/x64、Windows 10 x32/x64 |
| Linux | Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04 |
Mechanical and Environment |
|
| Form Factor | ATX |
| Power Type | DC-IN 12V |
| Dimension | 430 x 88 x 377 mm |
| Operating Temp. | 0°C to 50°C (ambient with air flow) |
| Storage Temp. | -20°C to 70°C |
| Relative Humidity | 5% to 95%, non-condensing |
