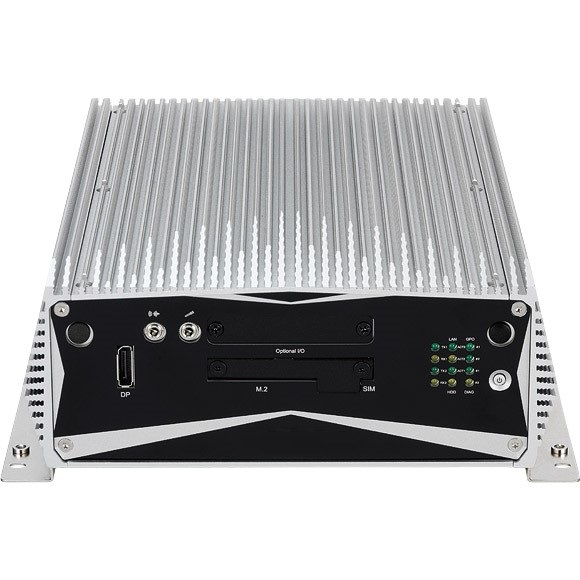

NES-3800R Fanless System
- Supports 6th generation Intel® Core™ i7/i5/i3 LGA embedded processors
- Intel® Q170 PCH chipset
- Supports 2 x 2.5″ SATA HDD and RAID 0/1
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; supports WoL, teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe sockets
- Supports +9V to 30VDC input; ATX power mode
Specifications
| PROCESSOR | Supports 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
– Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache – Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache – Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache – Intel® Pentium® Processor G4400TE 2.4GHz , 3M Cache – Intel® Celeron® Processor G3900TE 2.3GHz , 2M Cache Turbo-boost disabled by default |
| SYSTEM MEMORY | 2 x DDR4 SO-DIMM socket, supports up to 32GB with un-buffered and non-ECC |
| DISPLAY | Three independent displays
– HDMI + DP+ DVI-D Dual independent displays – HDMI + DP – HDMI + DVI-D – DP + DVI-D |
| FRONT I/O INTERFACE STATUS LEDS | 3 x LAN active LEDs
2 x GPO status/COM1/2 TX/RX LEDs 1 x HDD access LEDs |
| I/O INTERFACE-FRONT | 1 x ATX power on/off switch
1 x DP 1 x Line-out and 1 x Mic-in 2 x Antenna holes 1 x External M.2 (M-key 2242) socket 1 x SIM card holder |
| I/O INTERFACE – REAR | 2 x DB9 for COM1 & COM2
– COM1: RS232/422/485 auto flow control – COM2: RS232/422/485 auto flow control 4 x USB 3.0 ports (900mA per each) 2 x USB 2.0 ports (500mA per each) 1 x DVI-D port 1 x HDMI port 3 x Intel® I210IT GbE LAN ports; supports WoL, teaming and PXE 1 x 2-pin remote power on/off switch +9V to 30V DC input |
| STORAGE DEVICE | 1 x External M.2 SATA 3.0 (M-key 2242) socket
1 x mSATA (SATA 3.0) 2 x 2.5″ HDD (SATA 3.0) |
| EXPANSION SLOT | 2 x 2.5 ” HDDs
2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/mSATA/Fieldbus |
| POWER REQUIREMENTS | AT/ATX power mode (default: ATX power mode)
Power input: +9 to +30V DC Power adapter: optional AC to DC power adapter (24V DC, 120W) |

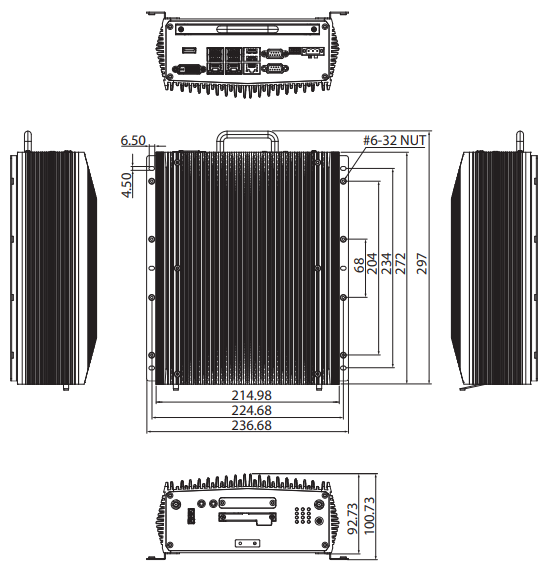

| DIMENSIONS | 215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5″x10.7″x 3.7″) |
| MECHANICAL CONSTRUCTION | Aluminium and metal chassis with fanless design |
| ENVIRONMENT | Operating temperature:
Ambient with air flow: -5°C to 60°C, uses wide temperature memory and storage (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 85°C Relative humidity: 10% to 93% (non-condensing) Shock protection: – HDD: 20G, half sine, 11ms, IEC60068-2-27 – M.2: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection with HDD condition: – Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 |
| SUPPORTED OS | Windows 7 32-bit and 64-bit
Windows 8.1 32-bit and 64-bit Windows 10 64-bit |
| CERTIFICATIONS | CE approval- EN61000-6-2- EN61000-6-4
FCC Class A UL |
| WEIGHT | Gross weight: 5.9kg
Net weight: 4.5kg |
