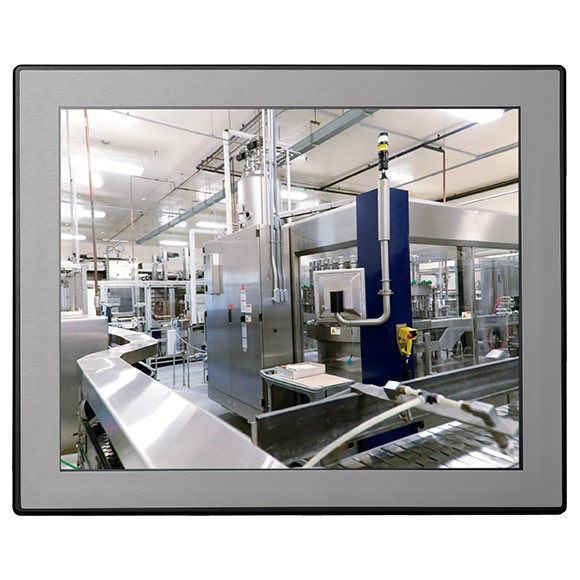

PPC1025 – Panel PCs
- 19″ SXGA fanless Panel PC
- Intel® Celeron® J3455 processor
- 5-wire resistive touch screen
- IO: 2 LAN/DP/COM/USB 3.0 & USB 2.0
- 1 x 2.5” SSD bay, 1 x Mini-PCIe, 1 x M.2
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 24V DC input with optional AC adapter
- Supports Windows 10 OS
Description
The PPC1025 is a robust 19-inch SXGA fanless panel PC, engineered for demanding industrial applications. This rugged touch panel PC boasts an IP65-compliant front panel, ensuring reliable operation in harsh environments where dust and splashes are commonplace. At its heart lies an efficient Intel® Celeron® J3455 processor, supported by up to 8GB of DDR3L memory.
Connectivity is well catered for, with dual LAN ports, DisplayPort, COM, USB 3.0, and USB 2.0 readily available. Storage is accommodated via a 2.5-inch SSD bay, alongside Mini-PCIe and M.2 slots for further expansion. Its versatile design allows for panel, wall, stand, or VESA mounting, providing flexibility for diverse installations. Power is supplied via a 24V DC input, with an optional AC adapter available. The PPC1025 is designed to run the Windows 10 operating system, making it a powerful and adaptable solution for a wide range of industrial control and monitoring tasks.
Specifications
| PANEL | LCD size: 19″, 4:3
Resolution: SXGA 1280 x 1024 Luminance: 350cd/m2 Contrast ratio: 1000 LCD colour: 16.7M Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R) Backlight: LED |
| TOUCH SCREEN | 5-wire resistive (flush panel type)
Touch light transmission: 81% Touch interface: USB |
| SYSTEM | CPU: Intel® Celeron® J3455 Quad Core processor, 1.50GHz
BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), supports up to 8GB DDR3L-1866, non-ECC and un-buffered Storage device – 1 x Internal M.2 2242 – 1 x Hard drive bay: optional 1 x 2.5” SATA HDD Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe socket (supports optional Wi-Fi module) Front LED indicator to show operating status |
| REAR I/O | Ethernet: 2 x RJ45
Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232 |
| ETHERNET | Dual Intel® I210-IT Gigabit LAN
Ethernet interface: 10/100/1000 based-Tx Ethernet compatible |
| MECHANICAL & ENVIRONMENTAL | Colour: Pantone black\RAL 15 00 front bezel w/Pantone 400C\RAL 090 80 10
IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power: – Power input: 24V VDC (optional AC to DC power adapter (+24V, 60W) Vibration: – IEC 68 2-64 (w/HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock: – IEC 68 2-27 – HDD: 20G @ wall mount, half sine, 11ms Temperature: – Operating temperature: 0°C to 50°C – Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90% RH at max 50°C) |

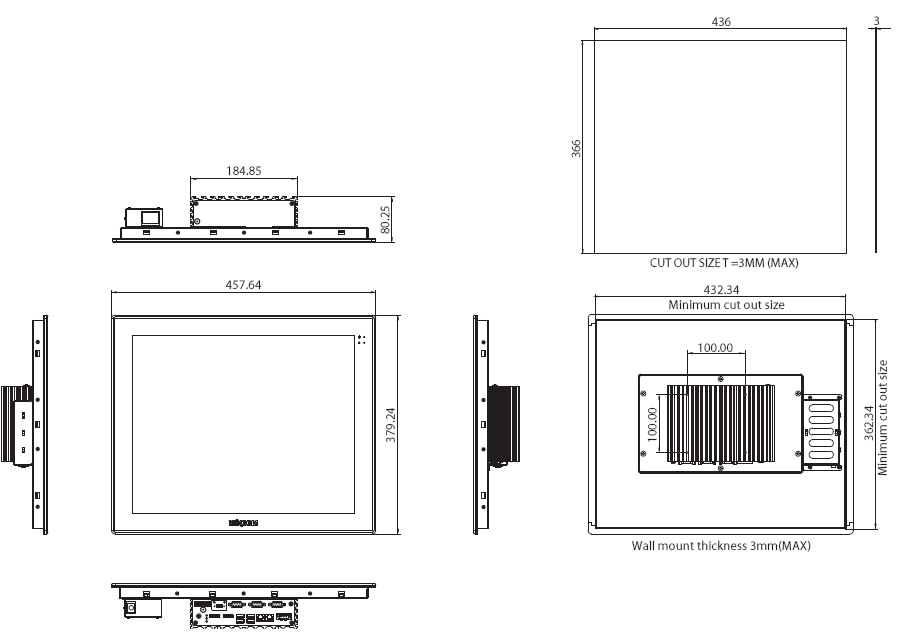

| DIMENSIONS | 457.64 x 379.24 x 80.25mm |
| WEIGHT | 6.2kg |
| CERTIFICATIONS | CE approval
FCC Class A |
| OS SUPPORT | Windows 10 IoT
Windows 10 Pro |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord
WI-FI module |
