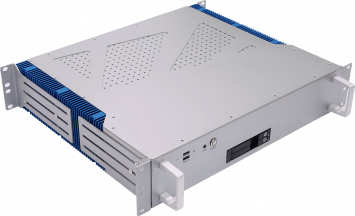

HORUS420-R1 – Military Systems
- 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE (2.4GHz, up to 3.4GHz, 4-cores)
- 32GB DDR4 XR-DIMM DDR4
- NVIDIA® GTX 1050 Ti (CUDA Cores: 768)/NVIDIA® RTX 2060S (CUDA Cores: 2176) GPU
- Dual 10 GbE
- 4 x GbE, 6 x USB
- 4 x SATA3.0 SSD
- 2 x 200W AC-DC PSU with redundant support 100V to 240V AC input
- Wide temperature -20°C to 60°C supports
Specifications
| Operating Temp. | |
|---|---|
| -20°C to 60°C | |
| System | |
| CPU | 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE (4 x Core, 3.4GHz), 35W |
| GPU | NVIDIA®1050Ti CUDA 768 GDDR5-4GB
NVIDIA®RTX2060S CUDA 2176 GDDR6-8GB |
| Chipset | Intel® Q170 Chipset |
| Memory Type | 32GB DDR4 XR-DIMM |
| Storage Device | Internal: 2 x 2TB 3D TLC SSD, External: 2 x 2TB 3D TLC SSD |
| Ethernet Chipset | 2 x Intel® 82599ES (10GbE) 3 x Intel® i210IT & 1 x Intel® i219LM GbE |
| Front I/O | |
| USB | 2 x USB2.0 |
| SSD Tray | 2 x external SSD 2TB 3D TLC |
| Power Button / Power LED | 1 |
| HDD LED | 1 |
| Rear I/O | |
| USB | 4 x USB3.0 |
| 10 Gigabit Ethernet | 2 x SFP |
| 1 Gigabit Ethernet | 4 x RJ45 |
| Display | 4 x Display Port and 1 x HDMI from CPU
Display Port from MXM Graphic card up to 6 |
| Mechanical and Environment | |
| Power Requirement | 2 x 200W AC-DC PSU with redundant support 100V to 240V AC input |

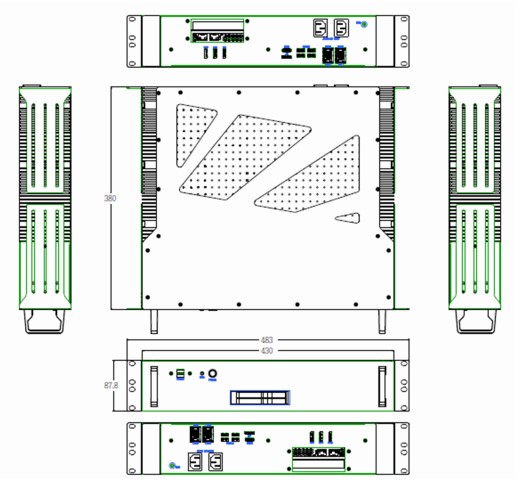

| Dimension | 430 x 380 x 88 mm |
| Weight | 9.7 kg (21.8 lbs) |
| Operating Temp. | -20°C to 60°C(ambient with air flow) |
| Storage Temp. | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
