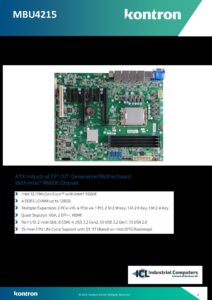

MBU4215 – ATX Motherboard

Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W

Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W

Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W

Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W

Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W

Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W

Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W

Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W

Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W

Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W

Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W

Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W

Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W

Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W

Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W

Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W

Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W

Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W

Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W

Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W

Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W

Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W

Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W

Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

Dual Channel DDR5 5600 MHz

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9

HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

2 x DP++

1 x HDMI 2.0a

VGA: resolution up to 1920×1200 @ 60Hz

DP++: resolution up to 4096×2304 @ 60Hz

HDMI: resolution up to 4096×2160 @ 24Hz

3 x PCIe x4 (Gen 4)

1 x PCIe x4 (Gen 3, co-lay M.2 M key, function selected by BIOS.)

1 x PCI

1 x M.2 E key

1 x M.2 A key (support M2-OOB)

1 x M.2 M key (PCIe x4 NVMe, SATA)

1 x M.2 M key (opt. co-lay PCIe x4 slot, function selected by BIOS.)

1 x Intel® I226-LM (co-lay I210-AT)

1 x 1GbE (RJ-45, opt. 2.5GbE)

4 x USB 3.2 Gen 1

2 x DP++

1 x HDMI

1 x Mic-in

1 x Line-in (opt., MOQ required)

4 x RS-232

1 x USB 2.0 Type A

2 x USB 2.0 (Colay vertical Type A, MOQ required)

1 x S/PDIF

RAID 0/1/5/10

Windows Server 2022

Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

Storage: 5 to 95% RH

305mm (12″) x 244mm (9.6″)

Top Side: 33.3mm, Bottom Side: 4mm
