ICOM4127 4U Rackmount Computer
- 4U 19” Industrial rackmount system
- 18.58″ Depth
- 6 PCIe expansion slots
- Supports 1st/2nd Gen Intel® Xeon® Scalable Family
- Intel® C621 Chipset, RAID 0/1/5/10
- 6 DDR4 RDIMMs up to 192GB
- 1 Display Output: VGA
- I/O: 2 ILAN, 1 COM, 5 USB 2.0, 6 USB 3.1 Gen 1, 1 IPMI-Mgnt
- Windows 10 Pro / IoT, Server 2012R2 – 2016 & Linux Support
- CPU Life Cycle Support Until Q3 2030
Specifications
| PROCESSOR | 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W |
| CHIPSET | Intel® C621 Chipset |
| MEMORY | Six 288-pin RDIMM up to 192GB, Single Channel DDR4 up to 2933MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 3x 5.25” SATA drive bays, supports 6 x SATA 3.0, 1 x M.2 Key 2280 (PCIe/SATA Gen 3 x4 NVMe), 1 x M.2 E Key 2230 (USB 2.0/PCIe Gen 3 x2)), RAID 0/1/5/10, Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 3x PCIe x16 (Gen 3), 3x PCIe x8 (Gen 3) (share w/ PCIe x16)
1x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe), 1x M.2 E key 2230 (USB 2.0/PCIe Gen3 x2) |
| POWER SUPPLY OPTIONS | 400W ~ 600W, 90~250VAC, DC 12~48V, 500W Redundant Power Supplies |
| AUDIO | Realtek ALC887 |
| ETHERNET | 2 x Intel® I210AT PCIe (10/100/1000Mbps), IPMI: 1 x RTL8211F (with optional IPMI module) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 IoT Enterprise LTSB RS5 (64-bit)
Windows Server 2012R2 Windows Server 2016 Linux |
| DISPLAY | 1 x VGA |
| MULTI-DISPLAY OUTPUTS | N/A |

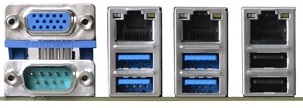

| REAR I/O PORTS | 2 x GbE (RJ-45), 1 x dedicated IPMI LAN (opt., MOQ required)
1 x RS-232 (DB-9) 4 x USB 3.1 (Gen1) 2 x USB 2.0 stack (opt., MOQ required w/ RJ45+USB2.0 stack) VGA |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 2 x USB 2.0 header (2 x USB 2.0)
1 x USB 2.0 vertical Type A 1 x USB 3.1 Gen 1 header (2 x USB 3.1 Gen 1) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 3x 5.25” SATA drive bays, 1x 2.5”/ 3.5” SATA drive internal |
| MOTHERBOARD MTBF | 558,025 hrs @ 25°C; 339,879 hrs @ 45°C ; 224,136 hrs @ 60°C With IPMI-Mgnt: 510,709 hrs @ 25°C; 306,113 hrs @ 45°C ; 200,130 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter, Two low noise hot-swap system cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 177 x 482 x 472 mm (4U x 19” x 18.58”) |
