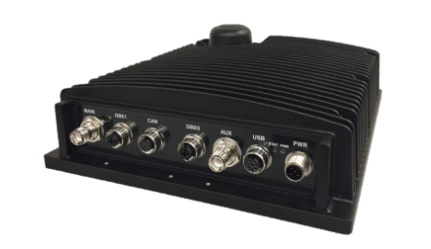

EvoTRAC-G103 – Transportation Computer
- Rugged, fanless, IP67, gateway computing platform for in-vehicle applications
- Intel® Atom™ E3845 processor and 64GB eMMC with storage expansion option
- Dual GbE port and dual CANBus 2.0 A/B
- 802.11ac/bgn WiFi Access Point with integrated antenna
- 4G LTE+ with 2x RF connections and dual SIM
- 9-36 VDC vehicle power input with surge protection and filtering
Description
RUGGED GATEWAY | CELLULAR & WIFI
Kontron’s EvoTRAC-G103 Gateway leverages the Intel® Atom™ processor on Kontron’s hardened Type 6 COM Express® CPU module coupled with a ruggedized Carrier Board, all packaged in a natural convection, sealed IP67 enclosure to survive rigorous environmental conditions for on and off-road vehicle use. Featuring a compact COMe E3845 module, the EvoTRAC-G103 is designed to be a Gateway Platform for extreme rugged In-Vehicle applications. Mechanically compact, this small form-factor system integrates dual Gigabit Ethernet and dual CAN bus interface that supports 2.0 A and B, along with two USB 2.0 interface, and WiFi, 4G Advanced Pro+ for wireless connectivity.
The system includes 64GB eMMC for onboard storage, a WiFi and 4G LTE module for wireless connectivity and optional fixed storage capacity. Designed for rugged in-vehicle applications and environments, the EvoTRAC-G103 has been tested for use under extreme temperature (-40° C to +80° C) and other demanding environmental conditions (shock, vibration, humidity, salt fog). The conduction cooled, IP67 sealed chassis incorporates protection from water and dust ingress, as well as CISPR25 emissions and ISO 11452-2 susceptibility.
High-Performance AI Edge Processing for Intelligent Vehicles
The Kontron EvoTRAC™ G103 is a ruggedised, high-performance in-vehicle evaluation platform designed to accelerate autonomous operations, machine vision, and AI edge computing in the most demanding environments. Powered by the NVIDIA® Jetson AGX Xavier™ module, this platform packs enterprise-grade AI processing capabilities into a compact, vehicle-mountable enclosure. It is the ideal computational engine for real-time video analytics, object detection, deep learning inference, and predictive maintenance in agricultural, mining, construction, and commercial fleet applications.
Combatting In-Vehicle Environmental and Power Challenges
Deploying sensitive AI hardware into heavy machinery requires specialized electrical and mechanical protection. The EvoTRAC G103 features a wide-range internal power supply (9VDC to 36VDC) equipped with intelligent ignition control, protecting the system from engine cranking drops and high-voltage surges. Housed in a fanless, IP67-rated rugged aluminium chassis with ruggedized M12 connectivity, the platform operates flawlessly under punishing mechanical vibration, extreme thermal shifts, and direct exposure to dust and moisture.
| Core Capability | Technical Specification & Architecture |
|---|---|
| AI Processing Engine | NVIDIA Jetson AGX Xavier (8-core ARMv8.2 CPU, 512-core Volta GPU with Tensor Cores) delivering up to 32 TOPS of accelerated AI performance. |
| Rugged Connectivity | Dual Gigabit Ethernet ports via secure M12 X-Coded connectors, alongside dual CAN bus interfaces (supporting J1939 protocols) via an A-Coded M12 connector. |
| Storage & Memory | 32GB 256-bit LPDDR4x high-speed memory combined with 32GB on-board eMMC 5.1 storage for localized data and operating system retention. |
| Vehicle Power Management | 9V – 36V DC wide input range with programmable ignition sensing, allowing controlled software shutdowns when the vehicle engine is turned off. |
Specifications
| PROCESSOR | Intel Atom® Processor E3845 Quad Core @ 1.91 GHz |
| MEMORY | 4 GByte DRAM |
| OPERATING SYSTEM | Linux Ubuntu 16.04 LTS installed; Windows OS supported (contact factory) |
| STORAGE | 64 GByte eMMC, MLC Expansion storage via 2.5” SSD (Optional) |

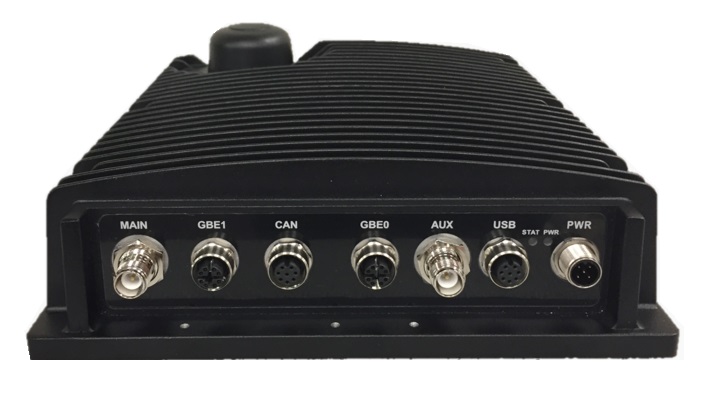

| ETHERNET PORT | Two (2) Ethernet 10/1000/1000BT Port M12 X-coded female connector |
| CANbus | Two (2) CANbus 2.0 A/B, ISO 11898-2 compliant; speeds up to 1Mb M12 A-coded female connector |
| CELLULAR MODEM | 4G cellular modem & GPS with dual SIM slot One (1) TNC, isolated RF connector for external antenna (main) One (1) TNC, isolated RF connector for external antenna (AUX, diversity or GPS) |
| USB 2.0 | Two (2) USB 2.0, up to 1.5 A charging capability with built-in current protection M12 A-coded female connector |
| LEDs | One (1) Power On LED; One (1) Systems Status LED |
| POWER INPUT | Input voltage wide range 9 – 36 VDC with ignition switch signal input M8 male connector |
| WEIGHT | 4.7 lbs (2.13 kg) |
| TEMPERATURE | -40 °C to +80 °C operating; there may be some performance reduction in temperatures below -30 °C and above +70 °C |
| VIBRATION | 5 Hz to 2000 Hz, Random, 1hr each axis, 8.21 GRMS Power Spectrum Density |
| SHOCK | 40 g, 11 ms sawtooth |
| DIMENSIONS (H x W x D) | 8.4” (213.36 mm) x 10.19” (258.82 mm) x 2.64” (67.05 mm) |
