NES53-E01/E02 Fanless System
- Intel® Celeron® J6413 or Atom® x6211E
- 3 x HDMI supports triple display
- Fanless and compact design
- 3 x GbE LAN & 2 x COM ports
- Wide operating temperature range -5°C to 55°C
- Supports +12V/24V DC input
- 1 x M.2 & 1 x mini-PCIe expansion slot
- Windows 11, Windows® 10, Linux 4.19
Specifications
| PROCESSOR | Intel® Celeron® processor J6413 1.8Ghz
Intel Atom® processor x6211E 1.3Ghz |
| CHIPSET | SoC |
| SYSTEM MEMORY | 1 x SO-DIMM DDR4 non ECC up to 2133 MT/s, 16GB max |
| COM | 2 x RS232/485 |
| USB | 2 x USB 3.0 |
| ETHERNET | 1 x Intel® I210-AT GbE LAN port, 2 x Marvell SOC PHY Gbe LAN ports |
| DISPLAY | 3 x HDMI, resolution 1920 x 1080 @ 60Hz |
| EXPANSION | 1 x Internal Nano SIM card holder for 2 x M.2 Key B & mPCIe
1 x Full-size mini-PCIe for optional Wi-Fi/BT/4G LTE (PCIe x1, USB2.0, SATA, SIM) 1 x Front access M.2 (Key B) 2242/3042/3052 (PCIe x2, USB2.0, SATA, SIM) 1 x Internal M.2 (Key B) 2242/3042/3052 (PCIe x1, USB3.0, SIM) |
| OTHERS | 1 x Optional on-board 32 GB EMMC |
| POWER SUPPLY | Power input: +12/+24V DC in |
| GPIO | 4 x GPI and 4 x GPO (programmable to GPI or GPO) |
| CONSTRUCTION | Aluminium and metal chassis with fanless design |
| OPERATING TEMPERATURE | Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| RELATIVE HUMIDITY | 10% – 90%, non-condensing |
| VIBRATION | Vibration protection with M.2/ mSATA condition: Random: 2Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| SHOCK | M.2/mSATA: 50G @ wall mount, half sine, 11ms(operation), IEC60068-2-27 |

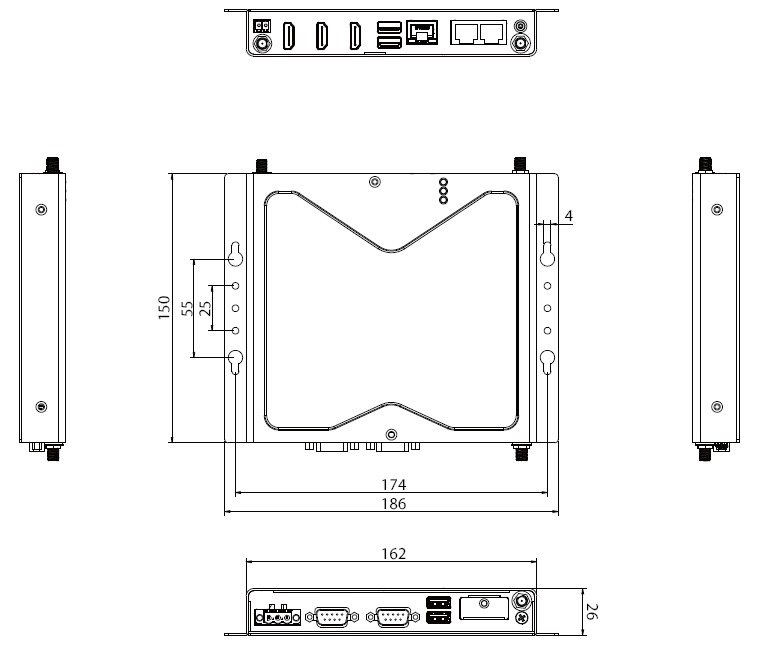

| DIMENSIONS (W X D X H) | 162mm (W) x 150mm (D) x 26mm (H) without wall mount bracket |
| CERTIFICATIONS | CE approval, FCC Class A |
| OS SUPPORT | Windows 11, Windows® 10 Enterprise 64 bit, Linux Kernel version 4.19 |
| OPTIONS | AC adapter |
| PART NUMBERS | NES 53-E01 Intel Celeron® processor J6413 1.8Ghz
NES 53-E02 Intel Atom® processor x6211E 1.3Ghz |
