NES109-E01/E02 Fanless System
- Intel® Celeron® J6412 or Atom® x6211E
- 1 x HDMI & 1 x DP++ dual view display
- Fanless and compact design
- 2 x GbE LAN & 4 x COM ports
- Wide operating temperature range -20°C to 70°C
- 9 ~ 30 VDC wide range power input
- 1 x M.2 & 1 x mini-PCIe expansion slot
- Win 10 IoT, Linux
Specifications
| PROCESSOR | Intel® Celeron® processor J6412 2.0Ghz
Intel Atom® processor x6211E 1.3Ghz |
| CHIPSET | SoC |
| SYSTEM MEMORY | 1 x SO-DIMM DDR4 non ECC up to 2666 MT/s, 16GB max |
| COM | 2 x RS232/422/485 auto flow control & 1 x RS232 |
| USB | 3 x USB 3.0, 3 x USB 2.0 |
| ETHERNET | 2 x Intel® I210-IT GbE LAN ports; support WoL, teaming and PXE |
| DISPLAY | 1 x HDMI, 1 x DisplayPort |
| EXPANSION | 1 x mini-PCIe socket for optional Wi-Fi/3.5G/4G/LTE module (for 3.5G/4G/LTE function, support SIM card holder on-board) |
| STORAGE | 1 x M.2 (SATA/PCIe x 1, 2242, Key B & B+M) & 1 x 2.5“ SATAIII SSD |
| OTHERS | 2 x Antenna hole for optional Wi-Fi/4G/LTE antenna |
| POWER SUPPLY | 9 to 30 VDC |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium and metal chassis with fanless design |
| OPERATING TEMPERATURE | NES 109-E01 ambient with air flow: -20°C to 70°C
NES 109-E02 ambient with air flow: -5°C to 55°C |
| RELATIVE HUMIDITY | 10% – 90%, non-condensing |
| VIBRATION | Vibration protection with SSD & M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| SHOCK | HDD: 20G, half sine, 11ms, IEC60068-2-27
M.2: 50G, half sine, 11ms, IEC60068-2-27 |

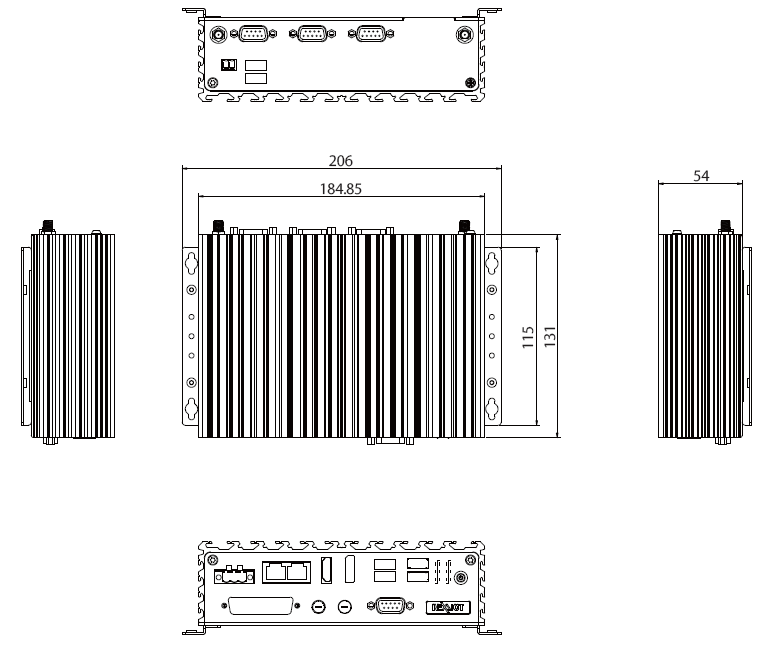

| DIMENSIONS (W X D X H) | 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| CERTIFICATIONS | CE approval: EN61000-6-2, EN61000-6-4, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| OPTIONS | AC adapter |
| PART NUMBERS | NES 109-E01 Intel Atom® processor x6211E 1.3Ghz
NES 109-E02 Intel Celeron® processor J6412 2.0Ghz |
