NES-51 Fanless System
- On board Intel® Celeron® processor N3350 Dual Core, 2.4GHz
- 1 x DP display
- 2 x Intel® I211AT GbE LAN ports; support WoL, teaming and PXE
- 2 x USB 2.0
- 2 x USB 3.0
- 1 x mini-PCIe socket for optional Wi-Fi/BT modules
- 2 x M.2 slot for Wi-Fi/Bluetooth and storage/LTE modules
- 2 x RS232, 1 x RS422/485 with auto flow control
- Supports -5°C~55 °C extended operating temperature
- Supports 12V and 24V DC input
Specifications
| PROCESSOR | On board Intel® Celeron® processor N3350 Dual Core, 2.4GHz |
| SYSTEM MEMORY | 1 x DDR3L SO-DIMM socket, support DDR3L 1866 8GB RAM max., un-buffered and non-ECC |
| DISPLAY | 1 x DP display |

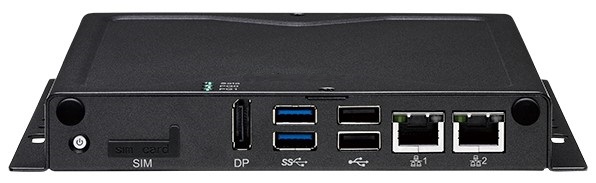

| I/O INTERFACE-FRONT | ATX power on/off switch
1 x Storage/2 x GPO programmable LED 1 x SIM card holder 2 x Intel® I211-AT GbE LAN ports; support WoL, teaming and PXE 1 x DP display output 2 x USB 2.0 2 x USB 3.0 3 x Antenna holes for optional Wi-Fi/3.5G antenna |

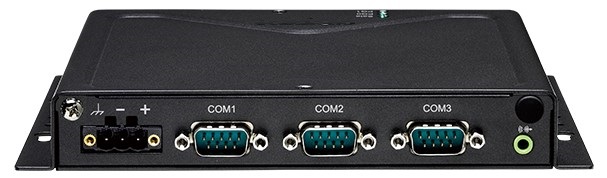

| I/O INTERFACE – REAR | 3 x DB9 for COM1 & COM2 & COM3
– COM1/COM2: full RS232 signal – COM3: RS422/485 auto flow control 1 x Line-out Support 12V/24V DC input |
| I/O INTERFACE – INTERNAL | 4 x GPI and 4 x GPO (programmable to GPI or GPO)
1 x RS232, pin header, supports RS232 TX/RX/GND signal only |
| STORAGE DEVICE | On board 16GB EMMC, max up to 32G by request
Optional M.2 B, BM key 2242 module |
| EXPANSION SLOT | 1 x mini-PCIe socket for optional Wi-Fi/3.5G module and 2 x M.2 slot for optional Wi-Fi/Bluetooth and LTE modules
– 1 x mini-PCIe socket for optional Wi-Fi/BT/3.5G/LTE module – 1 x M.2 A Key slot for optional Wi-Fi/Bluetooth – 1 x M.2 B key slot for optional storage and LTE modules |
| POWER REQUIREMENTS | Power input: 12V/24V DC +/-10%
1 x Optional 24V, 60W power adapter |
| SUPPORTED OS | Linux Kernel version 4.1 (storage: 16GB eMMC)
Windows 10 IoT Enterprise (storage: M.2 is recommended) |
| DIMENSIONS | 162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket |
| MECHANICAL CONSTRUCTION | Metal Chassis with fanless design |
| ENVIRONMENT | Operating temperature:
– Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 75°C Relative humidity: 10% to 95% (non-condensing) Shock protection: – M.2/EMMC: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/M.2 or EMMC condition: – Random: 2Grms @ 5~500 Hz, IEC60068-2-64 – Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| CERTIFICATIONS | CE
FCC Class A |
| OPTIONS | 24V, 60W AC/DC power adapter w/o power cord |
