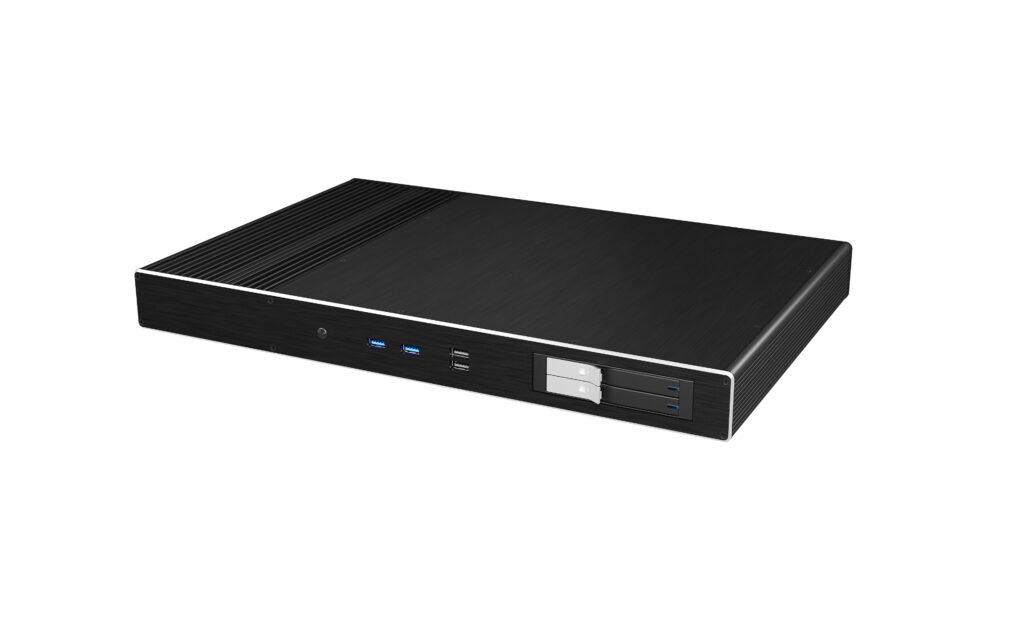

ICOMF103 Fanless System
- Industrial silent fanless system
- Kontron K3831 motherboard series
- Supports 12/13/14th Gen processors
- Intel® Core™ i3/i5/i7, up to 35w
- 2 DDR5 Non-ECC SO-DIMM up to 64GB
- 1 DP++ and 1 HDMI outputs
- I/O: 2 LAN, 1 x USB-C, 2 USB 2.0
- 430 x 278 x 43.6 (W x D x H)
- 4 2.5” drive bays, 2 front removable
- DC Input 19V ~ 24V
- Optional 1U rackmount front panel
Description
A fanless computer system with a choice of 18 processors
The fanless design of this system contributes to increased reliability and reduced maintenance costs. By eliminating moving parts like fans, the system is less susceptible to dust and mechanical failures, leading to a longer lifespan and decreased downtime. This translates to significant cost savings over the system’s operational life, making it a particularly attractive option for demanding and continuous-operation environments.
The ICOMF103 fanless system is built around the 14th, 13th, and 12th generation Intel® LGA 1700 socket processor family, supporting processors with a TDP of up to 35W. This includes a range of powerful options, from the Intel® Core™ i9 down to the efficient Intel® Celeron® G6900TE. The system utilises the Intel® H610 chipset and features two SO-DIMM sockets for DDR5-5600 memory, supporting a maximum of 64GB in a dual-channel configuration. The AMI Aptio 5.x (UEFI) BIOS provides a suite of features including Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, and support for S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology)
For storage, the unit has two internal 2.5″ HDD/SSD bays and two 2.5″ SATA mobile trays. The motherboard includes an M.2 2230 slot (Key-M, Gen 4, PCIe/NVME SSD modules) for additional high-speed storage. Expansion is possible with an optional low profile PCI-E slot x1 (8X) and an M.2 2230 slot (Key-E) for WLAN/Bluetooth modules, with optional high-quality external Wi-Fi antennas and connectors available.
Connectivity is provided by rear I/O ports that include 2 x GbE (RJ-45), 1 x USB-C 3.2 Gen 2, 2 x USB 2.0, 1 x HDMI, 1 x DP++, and 2 x audio. The front chassis provides further connectivity with 2 x USB 3.2, 2 x USB 2.0, and 2 x mobile SSD trays. The system is equipped with a watchdog timer and offers various system control features such as Recovery BIOS, system and BIOS passwords, boot sequence control, and Intel integrated TPM V2.0. Power is supplied via an external 19-24 V DC-in or an internal 12 V/19-24 V DC-in. The integrated Intel® UHD Graphics 7xx delivers display output through 1x Display Port V1.4a, 1x HDMI V2.0b, and dual-channel (24bit) LVDS. Audio is managed by the Realtek ALC256 High Definition Audio Codec, with support for 2W@4Ohm stereo speakers and line-in/line-out. The Realtek RTL8111E and Intel® i219LM Gigabit Ethernet controllers provide robust networking capabilities, including Wake-on-LAN (WoL) and PXE support. The system supports Windows 10, Windows 11, and Linux operating systems. An optional 1U rackmount front panel is available.
Specifications
| PROCESSORS | 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W |
| CHIPSET | Intel® H610 Chipset |
| MEMORY | 2 SO DIMM Socket DDR5-5600, max. 64 GB
Dual Channel unbuffered non-ECC. |
| BIOS | AMI Aptio 5.x (UEFI) BIOS modified and adapted Recovery BIOS, SM-BIOS (DMI),
BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5. No legacy OS support, no MBR installation (UEFI only) |
| STORAGE | Two internal 2.5″ HDD / SSD bays
Two bay 2.5″ SATA mobile tray Motherboard supports: 1 x M.2 2230/2242 (Key-M, Gen 4, PCIe/NVME SSD modules) |
| EXPANSION | Optional low profile PCI-E slot x1 (8X)
1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support) Optional hi-quality external Wi-Fi antennas and connectors |
| WATCHDOG TIMER | BIOS POST-/BIOS BOOT-/OS-HW Watchdog |
| SYSTEM CONTROL | 1x Front Panel header (Power Button, Reset Button, Power LED, HDD LED)
Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial-/ USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), Intel integrated TPM V2.0, optional Infineon TPM module (TCG compliant, socket prepared) |
| POWER SUPPLY | External DC-in: 19-24 V
Internal DC-in: 12 V/19-24 V |
| AUDIO | Realtek ALC256
High Definition Audio Codec, 2W@4Ohm stereo speaker support Line-In / Line-Out |
| ETHERNET | Realtek RTL8111E with 10/100/1000 MBit/s,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support, BIOS MAC Address Display Intel® i219LM with 10/100/1000 MBit/s, iAMT features, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support |
| OPERATING SYSTEMS SUPPORTED | Windows 10
Windows 11 Linux |
| GRAPHICS | Intel® UHD Graphics 7xx |
| DISPLAY OUTPUTS | 1x Display Port V1.4a
1x HDMI V2.0b Dual-Channel (24bit) LVDS |
| REAR I/O PORTS | 1 x 19/24V DC-in
2 x GbE (RJ-45) 1 x USB-C 3.2 Gen 2 2 x USB 2.0 1 x HDMI 1 x DP++ 2 x Audio |
| FRONT CHASSSIS CONNECTORS | USB 3.2 x2, USB 2.0 x2, Mobile SSD tray x2 |
| MOUNTING | Optional 1U rackmount front panel |
