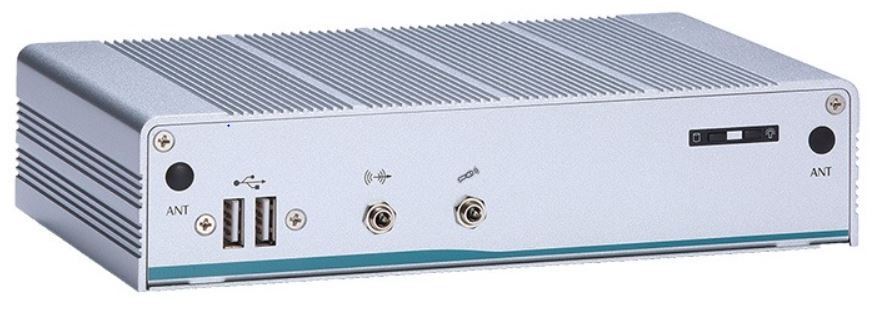

AES625-312 Fanless System
- Intel® Celeron® N3350, Pentium® N4200 on-board
- 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
- Supports 2 GbE LAN, 3 COM and 6 USB
- One 2.5” SATA drive bay and mSATA supported
- Trusted Platform Module (TPM) 1.2
- 2 PCI Express Mini Card slots and 1 SIM slot
- -20°C to +65°C operating temperature range
Specifications
| PROCESSOR | Intel® Celeron® Processor N3350, 2.4 GHz, Intel® Pentium® Processor N4200, 2.5 GHz |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485, 1 x RS-232 |
| USB | 4 x USB 3.0, 2 x USB 2.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| DISPLAY | 1 x HDMI (lockable), 1 x VGA |
| DIGITAL I/O | N/A |
| AUDIO | 1 x Audio (Line-out/ Mic-in) |
| STORAGE | 1 x 2.5” HDD/SSD bay (max. up 9.5 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal), 1 x SIM slot |
| OTHERS | 4 x SMA-type antenna connector, 1 x Screw type VDC power input connector, 1 x AT/ATX switch, 1 x ATX power switch, TPM 1.2 |
| POWER SUPPLY | Input AC 90 to 264V, AC 60W adapter with lock, Output: 12 VDC, 5A |
| WATCHDOG TIMER | 65536 levels, 1 to 65535 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | Turbo Mode: –20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (default), Non-turbo Mode: -20°C to +65°C (-4°F to +149°F) (with W.T. SSD/DRAM for 12 or 24 VDC) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| SHOCK | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |

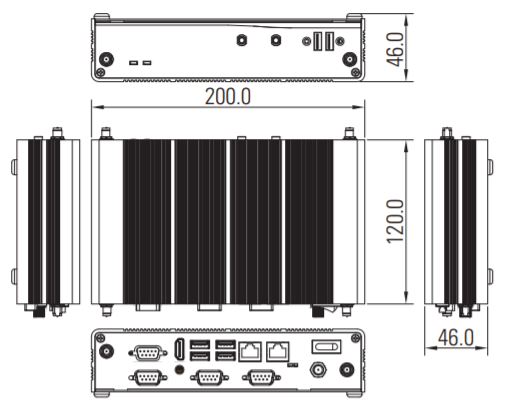

| DIMENSIONS (W X D X H) | 200 x 120 x 46 mm (7.87″ x 4.72″ x 1.81″) |
| WEIGHT (NET/GROSS) | 1.1 kg (2.43 lb)/1.8 kg (3.97 lb) |
| CERTIFICATIONS | CE, FCC Class A |
| OS SUPPORT | Win 10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES625-312-N3350: Fanless embedded system with Intel® Celeron® N3350
AES625-312-N4200: Fanless embedded system with Intel® Pentium® N4200 |
| OPTIONS | Wall mount kit, VESA mount kit, DIN-rail kit, Wi-Fi module, 3G/LTE module, 12V/60W power adapter |
