ICOMF102 Fanless System
- Industrial silent fanless system
- Kontron K3831 motherboard series
- Supports 12/13/14th Gen processors
- Intel® Core™ i3/i5/i7i9, up to 35w
- 2 DDR5 Non-ECC SO-DIMM up to 64GB
- 1 DP++ and 1 HDMI outputs
- I/O: 2 LAN, 1 x USB-C, 2 USB 2.0

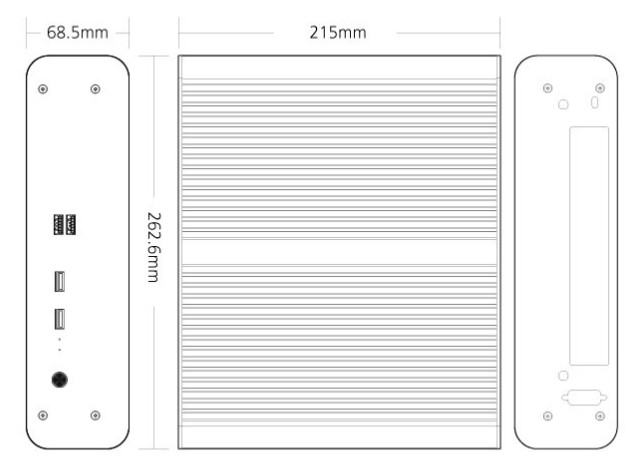

- 262.6 x 215 x 68.5 mm (W x D x H)
- DC Input 19V ~ 24V
- Supports Win 11/10 & Linux
Description
ICOMF102: High-Performance Fanless Embedded System
The ICOMF102 is a compact and robust industrial fanless system designed for demanding applications. It supports Intel® Core™ i3/i5/i7/i9 processors (12th/13th/14th Gen) up to 35W and features a fanless design for silent and reliable operation in harsh environments. It includes 2 DDR5 Non-ECC SO-DIMM slots supporting up to 64GB of memory.
For display output, it offers 1 DP++ and 1 HDMI. Connectivity includes 2 LAN ports and 2 USB 2.0 ports. The system has dimensions of 262.6 x 215 x 68.5 mm and requires a DC input of 19V ~ 24V.
Specifications
| PROCESSORS | 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W |
| CHIPSET | Intel® H610 Chipset |
| MEMORY | 2 SO DIMM Socket DDR5-5600, max. 64 GB
Dual Channel unbuffered non-ECC. |
| BIOS | AMI Aptio 5.x (UEFI) BIOS modified and adapted Recovery BIOS, SM-BIOS (DMI),
BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5. No legacy OS support, no MBR installation (UEFI only) |
| STORAGE | 1 x 2.5” drive bay
Motherboard supports: 1 x M.2 2230/2242 (Key-M, Gen 4, PCIe/NVME SSD modules) |
| EXPANSION | 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
Optional hi-quality external Wi-Fi antennas and connectors Optional 1x RS232 (by header) COM port |
| WATCHDOG TIMER | BIOS POST-/BIOS BOOT-/OS-HW Watchdog |
| SYSTEM CONTROL | 1x Front Panel header (Power Button, Reset Button, Power LED, HDD LED)
Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial-/ USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), Intel integrated TPM V2.0, optional Infineon TPM module (TCG compliant, socket prepared) |
| POWER SUPPLY | External DC-in: 19-24 V
Internal DC-in: 12 V/19-24 V Optional External Power Adapter AC 120W or 150W |
| AUDIO | Realtek ALC256
High Definition Audio Codec, 2W@4Ohm stereo speaker support Line-In / Line-Out |
| ETHERNET | Realtek RTL8111E with 10/100/1000 MBit/s,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support, BIOS MAC Address Display Intel® i219LM with 10/100/1000 MBit/s, iAMT features, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support |
| OPERATING SYSTEMS SUPPORTED | Windows 10
Windows 11 Linux |
| GRAPHICS | Intel® UHD Graphics 7xx |
| DISPLAY OUTPUTS | 1x Display Port V1.4a
1x HDMI V2.0b Dual-Channel (24bit) LVDS |
| REAR I/O PORTS | 1 x 19/24V DC-in
2 x GbE (RJ-45) 1 x USB-C 3.2 Gen 2 2 x USB 2.0 1 x HDMI 1 x DP++ 2 x Audio |
| FRONT CHASSSIS CONNECTORS | 4 x USB 2.0 |
| MOUNTING | VESA mountable |
