AES625-853 Fanless System
- Intel® Celeron® Processor N3160 2.24 GHz
- HDMI and VGA with dual-view supported
- Supports 4 COM and 4 USB
- 2 GbE LAN support WoL, Teaming and PXE
- 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA modules
- -20°C to +60°C operating temperature range
- Intel® Virtualization Technology (Intel® VT-x)
Specifications
| PROCESSOR | Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz) |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485, 3 x RS-232 |
| USB | 3 x USB 3.0, 1 x USB 2.0 |
| ETHERNET/POE | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| DISPLAY | 1 x HDMI (4K supported), 1 x VGA |
| DIGITAL I/O | 8-channel programmable digital I/O |
| AUDIO | Mic-in/Line-out |
| STORAGE | 1 x 2.5” HDD drive bay (max. up 15 mm height), 1 x mSATA (enabled in BIOS setting) |
| EXPANSION | 2 x Full-size PCI Express Mini Card slot (PCI Express + USB signal), 1 x SIM slot |
| OTHERS | 3 x Antenna opening, 1 x Screw type VDC power input connector |
| POWER SUPPLY | Input: AC 90-264V, AC 36 W adapter with lock, Output: DC 12V@3A |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Aluminium extrusion and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM) |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | 3 Grms with SSD (5 to 500 Hz, X, Y, Z directions) |
| SHOCK | N/A |

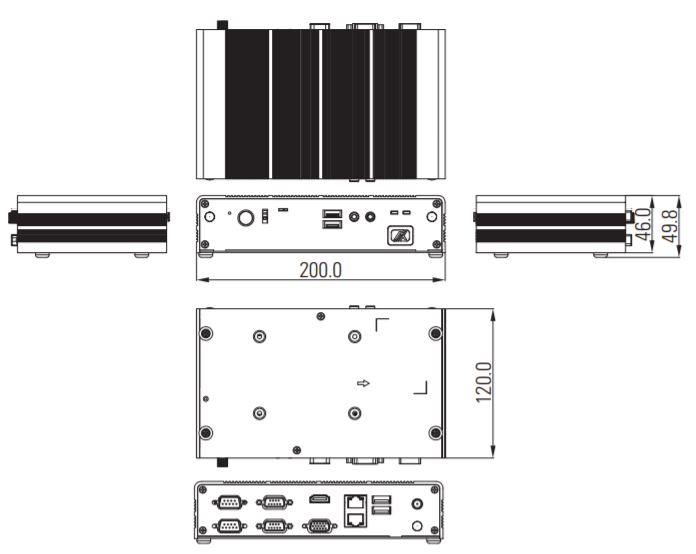

| DIMENSIONS (W X D X H) | 200 x 120 x 46mm (7.87” x 4.72” x 1.81”) |
| WEIGHT (NET/GROSS) | 1.2 kg (2.65 lb)/1.9 kg (4.19 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | WES 7, WES 8, Win10 IoT, Linux |
| MOUNTING | Wall mount, DIN-rail, VESA mount |
| PART NUMBERS | AES626-853-N3160: Fanless embedded system with Intel® Celeron® N3160 |
| OPTIONS | Wall mount kit, VESA mount kit, DIN-rail kit, Wi-Fi module, 3G/LTE module, 12V-36W power adapter, Power cord |
