COBALT™ 901 | 400 Series
- Small Form Factor 8.5″ (216mm) x 5.6″ (142mm) x 3.9″ (99mm)
- Intel® Quad Core™ E3-1505L 1.7 GHz processor with up to 32GB ECC RAM
- Supports up to 2 RSSDs via front removable drive bay
- Rugged, IP67 Environmentally Sealed System
- USB 3.0/2.0, GbE, HDMI, VGA, Audio, GPIO, Serial ports
- Extended Temperature -40ºC to +71ºC
- No ITAR restrictions
Description

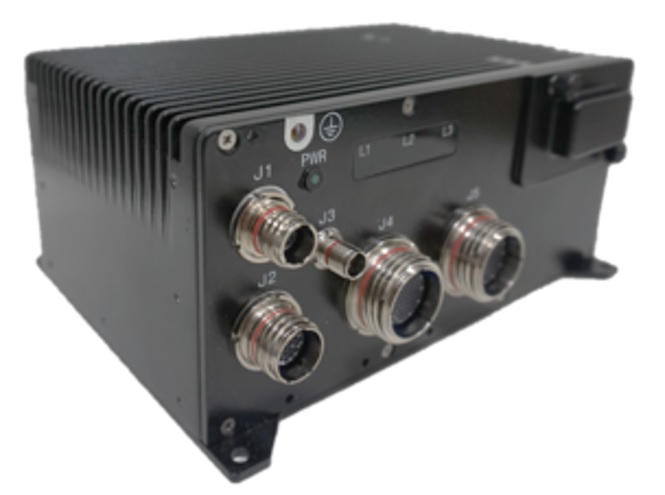

COBALT™ 901 with RSSD Drive Bay
The highly scalable COBALT™ product family is based on the COMe Type 6 module form factor module (Type 6) with a specialized carrier board assembly. The compact footprint and power-to-performance optimization make it the ideal solution for applications requiring high performance, reduced size-weight-power in an environmentally ruggedized platform. The design flexibility ensures fast time-to-market for many applications in the following segments: military, avionics, commercial avionics, mining, smart grid, homeland security, transportation (rail), and oil & gas.
Specifications
| FORM FACTOR | Small form factor, sealed unit |
| PROCESSOR | Intel® Quad Core™ E3-1505L processor, 1.7 GHz |
| DRAM | up to 32 GByte DDR4-2133 with ECC |
| OPERATING SYSTEM | Linux Ubuntu 16.04 LTS; Support for Windows |
| SECURITY | TPM 2.0 On board |
| PORTS | 2x 10/100/1000BT Direct Ethernet Ports |
| SERIAL | 8x GPI (In), 4x GPO (Out) and 12x GPIO, (SE) LVTTL |
| 4x Serial Ports confi gurable for RS422 and/or RS485 (user confi gurable) | |
| 2x RS232 | |
| Remote Battery (RTC) power pins | |
| AUDIO | 2x Diff erential Out; 1x Single End (SE) Out |
| 4x Single End (SE) Inputs | |
| VIDEO OUTPUT | VGA (maintenance port) |
| HDMI | |
| USB | 3x USB 2.0 (1A) |
| 1x USB 3.0 (1A) | |
| VIBRATION | 5 Hz to 2000 Hz, Random, 1hr each axis, 8.21 GRMS Power Spectrum Density |
| SHOCK | 40 g, 11ms sawtooth |
| EMI & SAFETY | MIL-STD-461E, MIL-STD-1275D, MIL-STD-704, RTCA/DO-160F, Section 20-21 |
| TEMPERATURE | -40 °C to +71 °C |
| WEIGHT | 7 lbs (3 kg) |
| DIMENSIONS (H X W X D) | 8.5” (216 mm) W x 5.6” (142 mm) D x 3.9” (99 mm) H |
