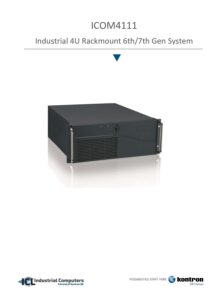

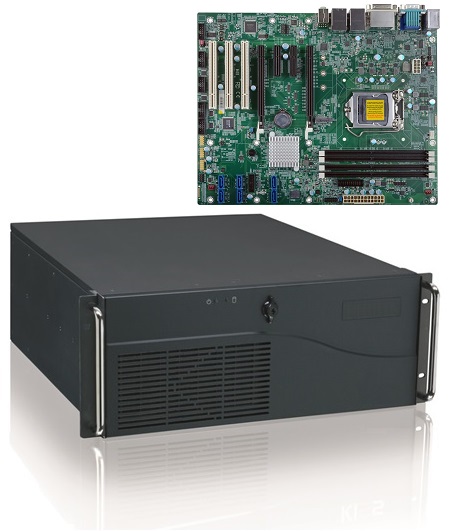

ICOM4111 4U Rackmount Computer
- 4U 19” Industrial rackmount system
- 18.58″ Depth
- 4 PCIe & 3 PCI expansion slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q170 Chipset, RAID 0/1/5/10
- 4 DDR4 UDIMMs up to 64GB
- 3 Display Outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 6 COM, 6 USB 3.1, 7 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | 6th/7th Generation Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W |
| CHIPSET | Intel® Q170 Chipset |
| MEMORY | Four 288-pin UDIMM up to 64GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 3x 5.25” SATA drive bays
Supports 5 x SATA3.0 Supports RAID 0/1/5/10 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 3 x PCIe x4 (Gen 3) 2 x PCI 1 x M.2 2260/2280 M key (SATA3.0/PCIe Gen3 x 2 NVMe) 1 x Mini PCIe (PCIe/mSATA/USB 2.0) |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V 500W Redundant Power Supplies |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)(only Core i7/i5 supports iAMT) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 64-bit
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
| DISPLAY | 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920×1200 @ 60Hz DVI-D: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Displays:
VGA + DVI-I (DVI-D signal) + DP++ |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.1 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 2 x USB 3.1 Gen1 4 x USB 2.0 + 1 x Vertical USB 2.0 (type A) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 3x 5.25” SATA drive bays
1x 2.5”/ 3.5” SATA drive internal |
| MOTHERBOARD MTBF | 537,588 hrs @ 25°C; 298,813 hrs @ 45°C; 184,762 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter
Two low noise hot-swap system cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 177 x 482 x 472 mm (4U x 19” x 18.58”) |
