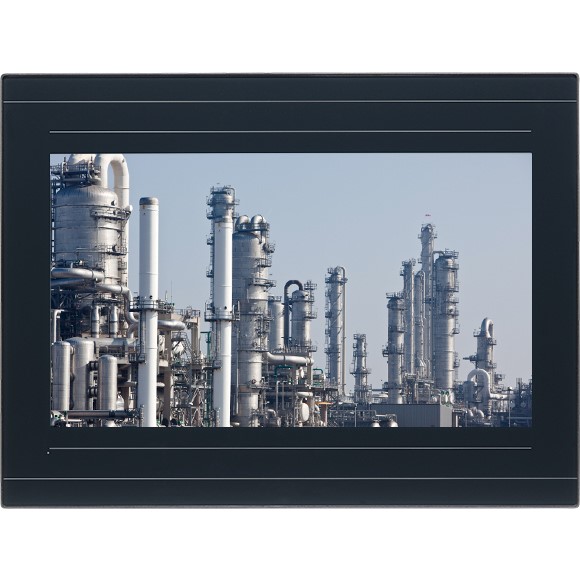

PPC1019 – Panel PCs

Resolution: HD (WXGA) 1366 x 768

Luminance: 300cd/m2

Contrast ratio: 1000

LCD colour: 16.7M

Viewing angle: 85 (U), 85 (D), 80 (L), 80 (R)

Backlight: LED

Touch light transmission: 87%

Anti-scratch surface: 7H hardness

Touch interface: USB

Intel® Core™ i5-6300U, 3M Cache, up to 3.0GHz

Intel® Core™ i3-6100U, 3M Cache, up to 2.3GHz

BIOS: AMI BIOS

System memory: 2 x 204-pin DDR3L SO-DIMM socket, 8GB DDR3L (default), support up to 16GB DDR3L-1866, non-ECC and un-buffered

Storage device:

– 1 x M.2 2242 B key socket: optional M.2 2242 storage

– 1 x Hard drive bay: optional 1 x 2.5” SATA HDD

Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module)

Front LED indicator to show operating status

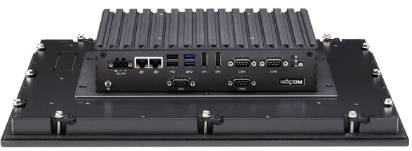

2nd DisplayPort: 2 x DP1.2

USB: 2 x USB 2.0, 2 x USB 3.0

LED indicator: power/HDD/GPIO programmable LED

Power button

COM #3: RS232/422/485

COM #1&2: RS232

1 x 3-pin 24V DC input

GPIO

Ethernet interface: 10/100/1000 based-Tx Ethernet compatible

IP protection: IP66 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

System with panel mounting kit w/o panel mounting hole

– Power input: 24 VDC

– Power adapter: optional AC to DC power adapter (+24V, 60W)

Vibration

– IEC 68 2-64 (w/ HDD)

– 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)

– 2Grms @ sine, 5~500Hz, 1hr/axis (SSD operating)

– 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

Shock

– IEC 68 2-27

– HDD: 20G@wall mount, half sine, 11ms

– Operating temperature: 0°C to 50°C

– Storage temperature: -20°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

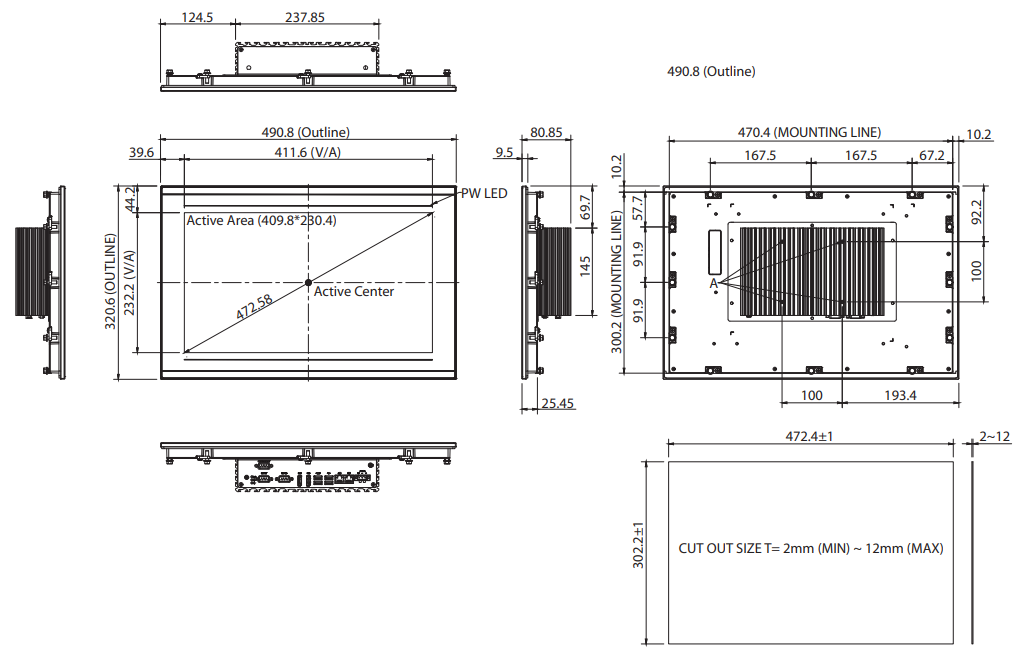

Dimension: 490.8 x 320.6 x 80.85 mm

Weight: 6.64 kg

FCC class A

Windows 7 Pro 64-bit

PPC1019-1 Panel PC Intel® Core™ i3-6100U, 3M Cache, up to 2.3GHz
