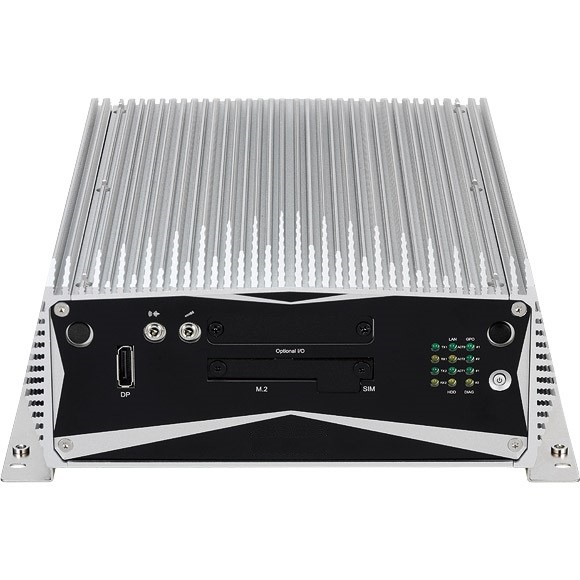

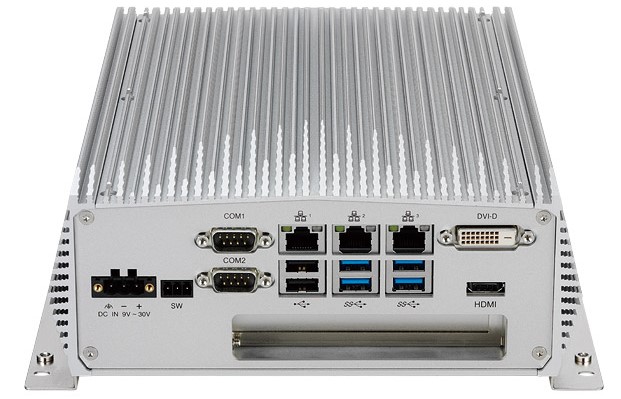

NES-3800-01 Fanless System

– Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache

– Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache

– Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache

– Intel® Pentium® Processor G4400TE 2.4GHz , 3M Cache

– Intel® Celeron® Processor G3900TE 2.3GHz , 2M Cache

Turbo-boost disabled by default

– HDMI + DP+ DVI-D

Dual independent displays

– HDMI + DP

– HDMI + DVI-D

– DP + DVI-D

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

1 x DP

1 x Line-out and 1 x Mic-in

2 x Antenna holes

1 x External M.2 (M-key 2242) socket

1 x SIM card holder

– COM1: RS232/422/485 auto flow control

– COM2: RS232/422/485 auto flow control

4 x USB 3.0 ports (900mA per each)

2 x USB 2.0 ports (500mA per each)

1 x DVI-D port

1 x HDMI port

3 x Intel® I210IT GbE LAN ports; supports WoL, teaming and PXE

1 x 2-pin remote power on/off switch

+9V to 30V DC input

1 x mSATA (SATA 3.0)

1 x 2.5″ HDD (SATA 3.0)

– Add-on card length: 169mm max.

– Power consumption: 10W/slot max.

2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/mSATA/Fieldbus

Power input: +9 to +30V DC

Power adapter: optional AC to DC power adapter (24V DC, 120W)

Ambient with air flow: -5°C to 60°C, uses wide temperature memory and storage

(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 85°C

Relative humidity: 10% to 93% (non-condensing)

Shock protection:

– HDD: 20G, half sine, 11ms, IEC60068-2-27

– M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition:

– Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64

– Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Windows 8.1 32-bit and 64-bit

Windows 10 64-bit

FCC Class A

UL

Net weight: 4.5kg
