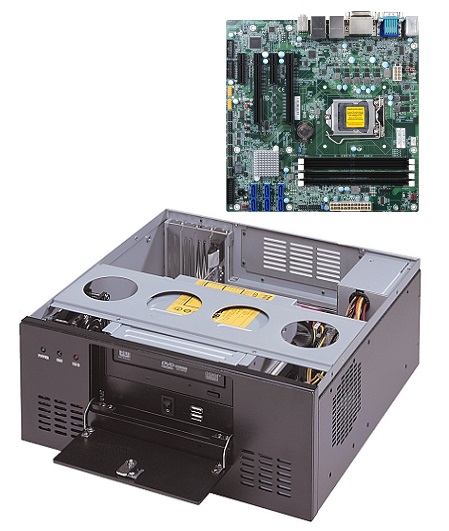

ICOM722 – 4 Slot Micro ATX Systems
- Wallmount/Desktop Industrial system
- 13.4″ x 5.36″ x 13.26″ (D x H x W)
- 4 PCIe expansion slots
- Supports Intel® 6th/7th Gen processors
- Intel® Xeon® & Core™ CPUs
- Intel® C236 chipset, RAID 0/1/5/10
- 4 DDR4 ECC DIMMs up to 64GB
- 3 Display Outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 6 COM, 8 USB 3.0, 6 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q3 2030
Specifications
| PROCESSOR | 6th/7th Generation Intel® Xeon / Core™ / Pentium®/ Celeron® LGA 1151 Socket Processors with TDP up to 95W |
| CHIPSET | Intel® C236 Chipset |
| MEMORY | Four 288-pin ECC/Non-ECC DIMM up to 64GB
Dual Channel DDR4 1866/2133MHz (Note: Core i5/i7 only support Non-ECC) |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | 1x external 5.25”
2x internal 3.5” drive bays Supports 6 x SATA 3.0 Supports RAID 0/1/5/10 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 2 x PCIe x4 (Gen 3) |
| POWER SUPPLY | 400w SFX Industrial 100,000 MTBF power supply |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe |
| OPERATING SYSTEMS SUPPORTED | Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux. |
| DISPLAY | 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920×1200 @ 60Hz DVI-I: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Displays:
VGA + DVI-I (DVI-D signal) + DP++ |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 4 x USB 3.0 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch) |
| FRONT CHASSSIS CONNECTORS | 2 x USB ports on front panel |
| CHASSIS CONSTRUCTION | Heavy-duty Steel
3mm aluminium front panel |
| DRIVE BAYS | 1x external 5.25”
2x internal 3.5” drive bays |
| SWITCHES | Power On/Off |
| INDICATORS | Power On/Off
HDD activity |
| MOTHERBOARD MTBF | 374,618 hrs @ 25°C; 211,926 hrs @ 45°C; 133,291 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| COOLING | 8cm ball-bearing fan |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 337 x 339.8 x 136 mm (13.26 x 13.4 x 5.36 inches) |
