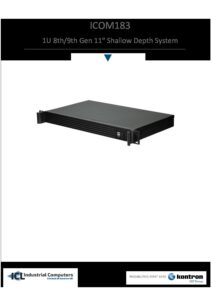

ICOM183 1U Rackmount Computer
- 1U Industrial rackmount system
- 11” Ultra short depth
- 1 PCIe expansion slot
- Supports Intel® 8th/9th Gen processors
- Intel® Core™, Pentium®, Celeron® CPUs
- Intel® H310 Chipset
- 2 DDR4 SODIMMs up to 64Gb
- 3 Display outputs: DP++, HDMI, LVDS
- I/O: 2 LAN, 2 COM, 4 USB 3.0, 4 USB 2.0
- Windows 10 Pro / IoT & Linux Support
- CPU Life Cycle Support Until Q3 2034
Specifications
| PROCESSOR | 9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W) Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W) Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W) Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W) Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W) Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W) Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W) Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W) Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) |
| CHIPSET | Intel® H310 Chipset |
| MEMORY | Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2400/2666MHz |
| BIOS | AMI |
| STORAGE | Supports 2 x 2.5” internal drive bays
1 x M.2 Key M (22 x 42/22 x 60/22 x 80); supports NVMe |
| OPTICAL | N/A |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Supports optional 1 x Full height PCIe x4 expansion slot |
| POWER INPUT | DC Power Jack connector
ATX 2 x 2-pin vertical/horizontal(optional) connector support 12V, 19V to 24 VDC input AT Auto Power On function supported |
| AUDIO | Realtek ALC662 |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219-V PCIe (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit |
| DISPLAY | 1 x DisplayPort++
1 x HDMI (3840 x 2160 @30Hz) 1 x LVDS & 1 x VGA (Wafer connector) & 1 x eDP (optional) |
| MULTI-DISPLAY OUTPUTS | Supports Dual Display outputs |

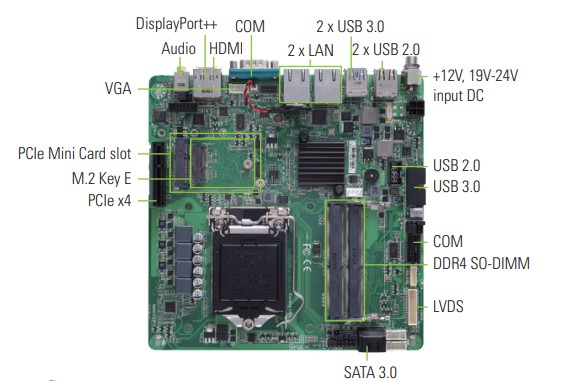

| REAR I/O PORTS | 2 x GbE (RJ-45)
2 x USB 3.0 & 2 x USB 2.0 1 x COM port 1 x DP++ & 1 x HDMI 1 x Line-out, 1 x Mic-in +12V, 19V-24V input DC jack |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485
1 x RS232 2 x USB 3.0 2 x USB 2.0 |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 2.5” SATA drive bays |
| ENVIRONMENT | Operation Temperature: 0~60 °C
Storage Temperature: -20~85 °C Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications) |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| COOLING | Processor cooling fan
Optional : 2 x 40mm fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 282.4 (D) x 44.4 (H); 19” (W) x 11.12” (D) x 1.75” (H) |
