HORUS422A – Military Systems
- MIL-STD 810G Compliance
- 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE (2.4GHz, up to 3.4GHz, 4-cores)
- 4 x DDR4 XR-DIMM up to 64GB
- RocketRAID 840A RAID Card
- 4 x RJ45 LAN, 6 x USB, 1 x RS232 Console
- 12 x 2.5″ Easy swap SSD/HDD Tray
- Extended Temperature -40°C to 60°C ( -20~+60 for 10GbE)
- NVIDIA® GTX 1050 Ti(CUDA Cores: 768)/NVIDIA® RTX 2060S (CUDA Cores: 2176) GPU
Specifications
Operating Temp. |
|
|---|---|
| 5°C to 50°C | |
System |
|
| CPU | 6th Gen Intel® Xeon E3-1268L v5, i7-6700TE |
| GPU | NVIDIA® GTX 1050 Ti(CUDA Cores: 768)
NVIDIA® RTX 2060S (CUDA Cores: 2176) |
| Chipset | Q170 |
| Memory Type | 4 x DDR4 XR-DIMM up to 64GB |
| BIOS | AMI® SPI BIOS |
| Expansion Slot | 4 x mPCIe (two support with mSATA) 1 x PICex4 |
| Storage Device | 12 x 2.5″ (7mm) Easy Swap HDD / SSD Tray |
Display |
|
| Chipset | Intel® HD Graphics 500 Series |
| Display Type | 1 x DisplayPort ; 1 x HDMI |
Ethernet |
|
| Chipset | 3 x Intel® I210-IT ; 1 x I219-LM GbE LAN ( support 10 / 100 / 1000Mbps for RJ45 port ) |
| WOL | Yes |
| Boot from LAN | Yes for PXE |

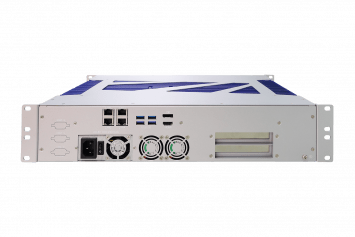

Rear I/O |
|
| Ethernet | 4 x RJ45 Gigabit Ethernet LAN Interfaces |
| Display | 1 x HDMI ; 1 x DisplayPort |
| USB | 4 x USB3.0 standard-A connectors |
| AC-IN | IEC C14 AC-IN |
Front I/O |
|
| Button | 1 x System On/Off, 1 x System FAN On/Off |
| Indicator LED | 1 x HDD LED |
| COM | 1 x DB9 |
| USB | 2 x USB2.0 standard-A connectors |
| 2.5″ SSD / HDD Tray | 12 ( 7mm height SSD / HDD only ) |
OS support list |
|
| Windows | Windows 8 x32 / x64、Windows 8.1 x32 / x64、Windows 10 x32 / x64 |
| Linux | Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04 |
Mechanical and Environment |
|
| Form Factor | ATX |
| Power Type | AC to DC 100-240V 400W FLEX ATX Switch Power Supply with fan |
| Dimension | 430 x 396 x 88 mm ( W x D x H ) |
| Operating Temp. | 5°C to 50°C |
| Storage Temp. | -20°C to 70°C |
| Relative Humidity | 5% to 95%, non-condensing |
