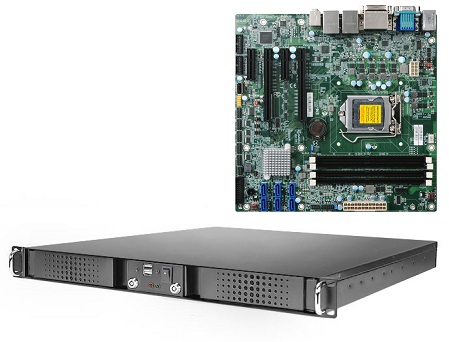

ICOM186 1U Rackmount Computer
- 1U Industrial rackmount system
- 20” Depth
- 1 PCIe expansion slot
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium®, Celeron® CPUs
- Intel® Q170 Chipset, RAID 0/1/5/10
- 2 DDR4 DIMMs up to 64Gb
- 3 Display outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 6 COM, 6 USB 3.0, 6 USB 2.0
- Windows 7, 8.1, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W |
| CHIPSET | Intel® Q170 Chipset |
| MEMORY | Four 288-pin Non-ECC DIMM up to 64GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | Supports 2 x 5.25” drive bays
Supports RAID 0/1/5/10 |
| OPTICAL | Optional DVD drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Option 1: 1 x PCIe x16 (Gen 3)
Option 2: 1 x PCIe x4 (Gen 2) |
| POWER SUPPLY OPTIONS | 1U Redundant
1U Single Flex ATX |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
| DISPLAY | 1 x VGA: resolution up to 1920×1200 @ 60Hz
1 x DVI-I: resolution up to 1920×1200 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Display outputs |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (DB-9) 4 x USB 3.0 & 2 x USB 2.0 1 x VGA / 1 x DVI-I (DVI-D signal) / 1 x HDMI 1 x Line-out, 1 x Mic-in |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 4 x USB 3.0 (2.00mm pitch) 2 x USB 2.0 (2.54mm pitch) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 5.25” drive bays
Supports RAID 0/1/5/10 |
| ENVIRONMENT | Operation Temperature: 0~60 °C
Storage Temperature: -20~85 °C Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications) |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| MOTHERBOARD MTBF | 374,618 hrs @ 25°C; 211,926 hrs @ 45°C; 133,291 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
| COOLING | Centre 40mm x 4 |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 521 (D) x 44.4 (H); 19” (W) x 19.96” (D) x 1.75” (H) |
