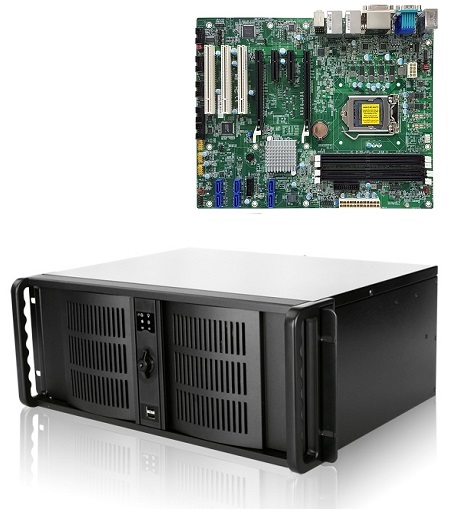

ICOM408 4U Rackmount Computer

4U 19” Industrial rackmount system
13.7” Short Depth
4 PCIe & 3 PCI expansion slots
Supports Intel® 6th/7th Gen processors
Intel® Xeon® & Core™ CPUs
Intel® C236 Chipset, RAID 0/1/5/10
4 DDR4 ECC DIMMs up to 64GB
3 Display Outputs: VGA, DVI-I, HDMI
I/O: 2 LAN, 6 COM, 6 USB 3.0, 8 USB 2.0
Windows 7, 10 Pro / IoT & Linux
CPU Life Cycle Support Until Q2 2025

Specifications

PROCESSOR	6^th/7^th Generation Intel® Xeon®/Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
CHIPSET	Intel® C236 Chipset
MEMORY	Four 288-pin ECC/Non-ECC DIMM up to 64GB Dual Channel DDR4 2133/2400MHz (Note: Core i5/i7 only support Non-ECC)
BIOS	SPI 128Mbit
STORAGE	Supports 1x Slimline 5.25” drive bay & 3x 3.5” drive bays Supports 6 x SATA3.0 Supports RAID 0/1/5/10 Optional removable hard disk drives or solid state disks
OPTICAL	Optional Slimline DVD±RW (±R DL) / DVD-RAM drive
WATCHDOG TIMER	Programmable via S/W from 1 sec. to 255 sec.
EXPANSION SLOTS	2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals) 2 x PCIe x4 (Gen 3) 3 x PCI
POWER SUPPLY OPTIONS	400W ~ 600W 90~250VAC
AUDIO	Realtek ALC888S-VD2-GR
ETHERNET	1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)
OPERATING SYSTEMS SUPPORTED	Windows 10 64-bit Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7^th Gen CPUs only support Windows 10 64-bit & Linux)
DISPLAY	1 x VGA 1 x DVI-I (DVI-D signal)1 x HDMI VGA: resolution up to 1920×1200 @ 60HzDVI-I: resolution up to 1920×1200 @ 60Hz HDMI: resolution up to 4096×2160 @ 24Hz
MULTI-DISPLAY OUTPUTS	Supports Triple Displays: VGA + DVI-I (DVI-D signal) + HDMI
REAR I/O PORTS	2 x GbE (RJ-45) 1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch) 2 x USB 3.0 (2.00mm pitch) 6 x USB 2.0 (2.54mm pitch) or 4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
FRONT CHASSSIS CONNECTORS	2 x USB
DRIVE BAYS	1x Slimline 5.25” drive bay 2x 3.5” external & 1 x 3.5” internal drive bays
MOTHERBOARD MTBF	367,369 hrs @ 25°C; 208,834 hrs @ 45°C; 131,021 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
ENVIRONMENT	Operation Temperature: 0 °C to +50 °C continuous operation Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification)
VIBRATION	Operating: 10-150 Hz: 1G/3 axis Non-operating: 10-150 Hz: 2G/3 axis
COOLING	Removable air filter 2x80mm & 1x120mm
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	482.6 x 177.8 x 348.0 mm / 19.00″ x 7.00″ x 13.70″) (W x H x D)

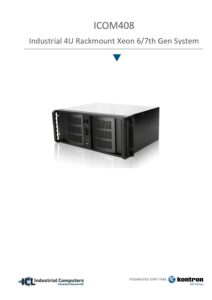

Downloads
