ICOM278 2U Rackmount Computer
- 19” 2U Rackmount Computer
- 16.9″ Depth
- Options for 2 PCIe, 3 PCI or 5 PCIe Full height slots
- Supports Intel® 10th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q470E chipset, RAID 0/1
- 4 DDR4 DIMMs up to 128GB
- 3 Display Outputs: VGA, DVI-D & HDMI
- I/O: 2 LAN, 4 COM, 6 USB 3.2 Gen 2, 4 USB 2.0
- Windows 10 Pro / IoT & Linux Support
- CPU Life Cycle Support Until Q1 2033
Description
2U Rackmount Industrial Computer
Specifications

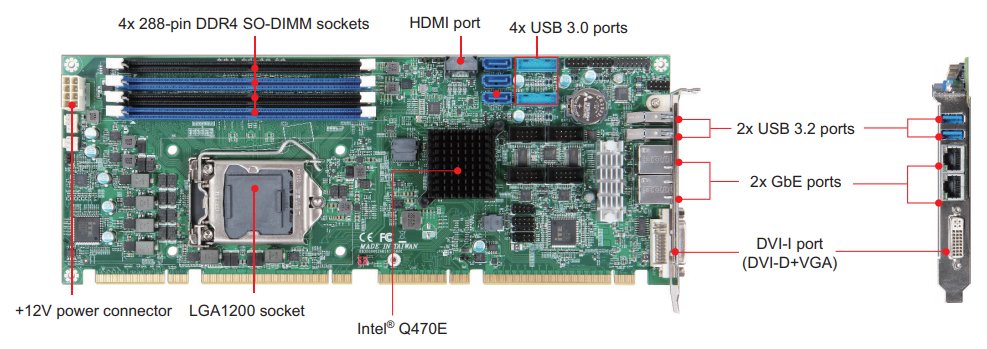

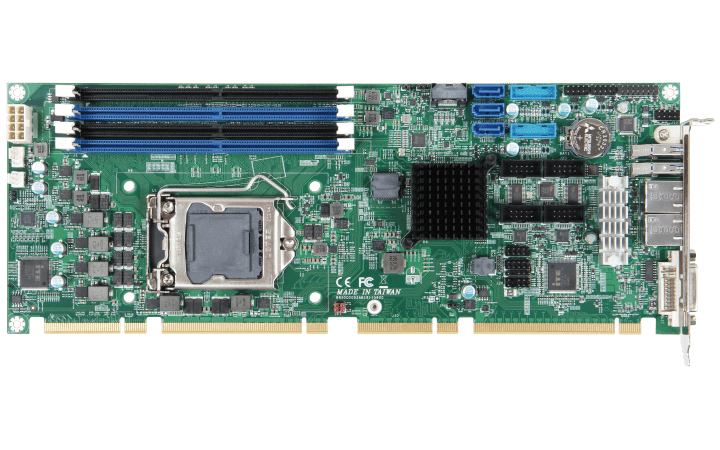

| PROCESSOR | 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 65W
Intel® Core™ i9-10900E 10 Cores, 20M Cache, up to 4.7 GHz; 65W Intel® Core™ i9-10900TE 10 Cores, 20M Cache, up to 4.5 GHz; 35W Intel® Core™ i7-10700E 8 Cores, 16M Cache, up to 4.5 GHz; 65W Intel® Core™ i7-10700TE 8 Cores, 16M Cache, up to 4.4 GHz; 35W Intel® Core™ i5-10500E 6 Cores, 12M Cache, up to 4.2 GHz; 65W Intel® Core™ i5-10500TE 6 Cores, 12M Cache, up to 3.7 GHz; 35W Intel® Core™ i3-10100E 4 Cores, 6M Cache, 3.8 GHz; 65W Intel® Core™ i3-10100TE 4 Cores, 6M Cache, to 3.6 GHz; 35W Intel® Pentium® G6400E 2 Cores, 4M Cache, 3.8 GHz; 58W Intel® Pentium® G6400TE 2 Cores, 4M Cache, 3.2 GHz; 35W Intel® Celeron® G5900E 2 Cores, 2M Cache, 3.2 GHz; 58W Intel® Celeron® G5900TE 2 Cores, 2M Cache, 3.0 GHz; 35W |
| CHIPSET | Intel® Q470E Chipset |
| MEMORY | Four DIMM up to 128GB
Supports Non-ECC memory |
| BIOS | AMI UEFI BIOS |
| STORAGE | Supports 2 x 3.5” drive bays in removable hot-swap frames
Supports 1 x Slimline DVD Supports RAID 0/1/5/10 5 x SATA 3.0 ports (Dual ports via Backplane) 1 x M.2 Type M 2280 (On bottom side) |
| OPTICAL | Optional DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs. |
| EXPANSION SLOTS | System supports 6 slot butterfly backplanes:
Option 1: 5-slot [PCIe x16 (1), PCIe x4 (1), PCI (3)] Option 2: 5-slot [PCIe x16 (1) PCIe x1 (4)] |
| POWER SUPPLY OPTIONS | 400W ~ 600W 90~250VAC
DC 12~48V Redundant Power Supplies |
| AUDIO | Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit
Realtek ALC888S HDA codec, 7.1 channels one on board audio pin header |
| ETHERNET | Intel® WGI219LM + WGI210AT Gigabit Ethernet controller
Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connectors with two LED indicators |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro
Windows 10 IoT Enterprise 64-bit Linux |
| MULTI-DISPLAY OUTPUTS | Supports independent triple displays:
VGA on bracket: Resolution up to 1920×1200 @ 60Hz DVI-D on bracket: up to 1920×1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) HDMI on board: up to 4096×2160 @ 30Hz |
| REAR I/O PORTS | 2 x USB 3.2
2 x LAN 1 x DVI-I (DVI-D + VGA) |
| OPTIONAL PORT EXPANSION FROM SBC | 4 x USB 2.0 ports (through backplane)
480Mb/s bus capable of high-speed/full-speed/low-speed data ranges 4 x USB 3.2(Gen2) ports on board 10Gbps bus capable of high-speed/ full-speed/low-speed data ranges 2 x USB 3.2(Gen2) ports on bracket 10Gbps bus capable of high-speed/ full-speed/low-speed data ranges |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 3.5” SATA & 1 x 5.25” Slimline drive bays |
| MOTHERBOARD MTBF | Over 100,000 hours at 40°C |
| ENVIRONMENT | Operating temperature: 0°C to 60°C
Storage temperature: -20°C to 80°C Relative humidity: 5~90%, non-condensing (Dependant of overall system specifications) |
| COOLING | Replaceable air filter
Two 7cm ball-bearing cooling fans |
| COLOUR | Black or Silver (all other optional colours are available upon request) |
| DIMENSIONS: | 482 (W) x 429.2 (D) x 88.6 (H); 19” (W) x 16.9 (D) x 3.5” (H) |
