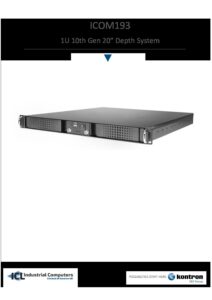

ICOM193 1U Rackmount Computer
- 1U Industrial rackmount system
- 20” Depth
- 1 PCIe or PCI expansion slot
- Supports Intel® 10th Gen processors
- Intel® Core™, Pentium®, Celeron® CPUs
- Intel® Q470E Chipset, RAID 0/1/5/10
- 4 DDR4 UDIMMs up to 128GB
- 3 Display outputs: VGA, HDMI & DP++
- I/O: 2 LAN, 6 COM, 6 USB 3.2, 7 USB 2.0
- Windows 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q2 2034
Specifications
| PROCESSOR | 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W |
| CHIPSET | Intel® Q470E Chipset |
| MEMORY | Four 288-pin up to 128GB Dual Channel DDR4 2400/2666/2933MHzNon-ECC UDIMM memory supported |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | Supports 2 x 5.25” drive bays
Supports RAID 0/1/5/10 Motherboard supports: 2 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and Intel RST support) |
| OPTICAL | Optional DVD drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Option 1: 1 x PCIe x16 (Gen 3)
Option 2: 1 x PCIe x4 (Gen 3) Option 3: 1 x PCI |
| POWER SUPPLY OPTIONS | 1U Redundant
1U Single / Flex ATX |
| AUDIO | Realtek ALC888 |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i5/i7 supports iAMT) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit Linux |
| DISPLAY | 1 x VGA, resolution up to 1920×1200 @ 60Hz 1 x DP++, resolution up to 4096×2160 @ 60Hz 1 x HDMI 1.4b, resolution up to 4096×2160 @ 24Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Display outputs |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1 & 4 x USB 2.0 1 x PS/2 (mini DIN-6) 1 x VGA, 1 x DP++ & 1 x HDMI 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) & 4 x RS-232 (2.54mm pitch)
2 x USB 3.2 Gen 1 (Key B 20-pin) 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required) 1 x USB 2.0 Vertical Type A 1 x S/PDIF 1 x Front Audio Header |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 2 x 5.25” drive bays |
| ENVIRONMENT | Operation Temperature: 0~60 °C / Storage Temperature: -20~85 °C
Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications) |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| MOTHERBOARD MTBF | 492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C
Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| COOLING | Centre 40mm x 4 |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 521 (D) x 44.4 (H); 19” (W) x 19.96” (D) x 1.75” (H) |
