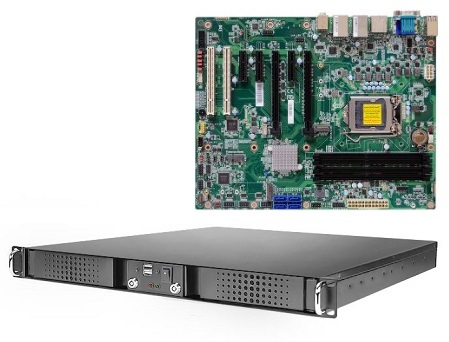

ICOM192 1U Rackmount Computer

1U Industrial rackmount system
20” Depth
1 PCIe or PCI expansion slot
Supports Intel® 10th Gen processors
Intel® Xeon® & Core™ CPUs
Intel® W480E Chipset, RAID 0/1/5/10
4 DDR4 UDIMMs up to 128GB
3 Display outputs: VGA, HDMI & DP++
I/O: 2 LAN, 6 COM, 6 USB 3.2, 7 USB 2.0
Windows 10 Pro / IoT / Server 2019 & Linux
CPU Life Cycle Support Until Q2 2034

Specifications

PROCESSOR	10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz, ECC support); 95W Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz, ECC support); 35W Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz, ECC support); 80W Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz, ECC support); 35W Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz, ECC support); 80W Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz, ECC support); 35W Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
CHIPSET	Intel® W480E Chipset

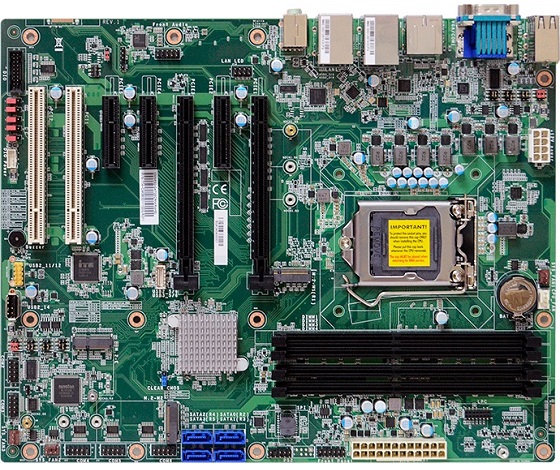

MEMORY	Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC) Dual Channel DDR4 2400/2666/2933MHzECC memory support for Xeon processors
BIOS	Insyde SPI 128Mbit
STORAGE	Supports 2 x 5.25” drive bays Supports RAID 0/1/5/10 Motherboard supports: 2 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and Intel RST support) 1 x M.2 2230 E key (USB 2.0/PCIe x1 shared with PCIe x1 slot, opt., MOQ required)
OPTICAL	Optional DVD drive
WATCHDOG TIMER	Programmable via S/W from 1 sec. to 255 sec.
EXPANSION SLOTS	Option 1: 1 x PCIe x16 (Gen 3) / Option 2: 1 x PCIe x4 (Gen 3) Option 3: 1 x PCI
POWER SUPPLY OPTIONS	1U Redundant or 1U Single / Flex ATX
AUDIO	Realtek ALC888
ETHERNET	1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i5/i7 supports iAMT)
OPERATING SYSTEMS SUPPORTED	Windows 10 Pro 64-bit Windows 10 IoT Enterprise 64-bit Windows Server 2019 (MOQ required LAN chip change) Linux
DISPLAY	1 x VGA, resolution up to 1920×1200 @ 60Hz 1 x DP++, resolution up to 4096×2160 @ 60Hz 1 x HDMI 1.4b, resolution up to 4096×2160 @ 24Hz
MULTI-DISPLAY OUTPUTS	Supports Triple Display outputs
REAR I/O PORTS	2 x GbE (RJ-45) 1 x RS-232/422/485 (RS-232 w/power (DB-9) 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1 & 4 x USB 2.0 1 x PS/2 (mini DIN-6) 1 x VGA, 1 x DP++ & 1 x HDMI 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
OPTIONAL PORT EXPANSION FROM MOTHERBOARD	1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) & 4 x RS-232 (2.54mm pitch) 2 x USB 3.2 Gen 1 (Key B 20-pin) & 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required) 1 x USB 2.0 Vertical Type A 1 x S/PDIF 1 x Front Audio Header
FRONT CHASSSIS CONNECTORS	2 x USB
DRIVE BAYS	2 x 5.25” drive bays
ENVIRONMENT	Operation Temperature: 0~60 °C / Storage Temperature: -20~85 °C Relative Humidity: 5~90%, non-condensing (Dependent on overall system specifications)
VIBRATION	5~7 Hz: 0.5” double amplitude displacement 7~2000 Hz: 1.5g acceleration
MOTHERBOARD MTBF	TBD
COOLING	Centre 40mm x 4
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	482.6 (W) x 521 (D) x 44.4 (H); 19” (W) x 19.96” (D) x 1.75” (H)
