ICOM-SC6 – Embedded Box PC
- Compact 250x52x191mm system
- Supports Intel® 8th/9th Gen processors
- Intel® Q370 Chipset
- 2 DDR4 SO-DIMMs up to 64GB
- Front system USB ports
- I/O: 2 LAN, 2 USB 3.1 Gen 1, 2 USB 3.1 Gen 2
- 2 Display ports & 1 DVI-D port
- 1 PCIe x4, 1 M.2 & 1 Mini-PCIe slots
- Windows 10 Pro / IoT & Linux Support
- Horizontal or Vertical operation
- Wallmount bracket
Specifications
| PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W |
| CHIPSET | Intel® Q370 Express Chipset |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| MEMORY | Two DDR4 2666 SO-DIMM up to 64GByte |
| WATCHDOG | 3 Level HW Watchdog (BIOS POST / BIOS BOOT / OS) |
| STORAGE | 1 x 2.5” HDD/SSD drive bay
1 x Serial ATA (SATA) III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| EXPANSION SLOTS | 1 x M.2 PCIe x2 (Key-M: 2242/2260/2280)
1 x Mini-PCIe (half-size/full-size) 1 x PCIe x4 |
| POWER SUPPLY | External/Internal DC-In 12V (DC Jack/4-Pin)
Optional internal 65W PSU module |
| AUDIO | Realtek ALC671 |
| ETHERNET | Intel i219LM & i210AT with 10/100/1000 MBit/s, AMT 12.0 / vPro Support LAN ports |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Linux |
| GRAPHICS CONTROLLER | Intel® UHD Graphics, DX12 |
| DISPLAY | 2 x DP V1.2
1 x DVI-D |

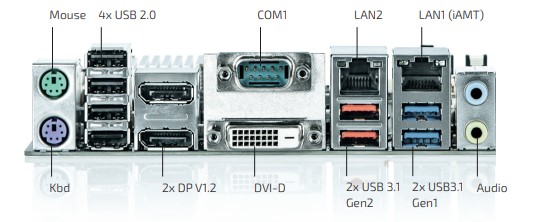

| REAR I/O | 1 x DC-in jack
1 x RS232/422/485 COM 2 x Display Port 1 x DVI-D 2 x LAN 2 x USB 3.1 Gen1 2 x USB3.1 Gen2 PS2 Audio |
| FRONT CHASSSIS CONNECTORS | 1 x Power switch
2 x USB |
| ENVIRONMENT | 0 °C ~ 45 °C*
5 % – 85 % relative humidity (non-condensing) * Dependant on overall system specifications |
| COMPLIANCE | CE Class B, Industrial Immunity (EN 61000-6-2), FCC Class B (verified) |

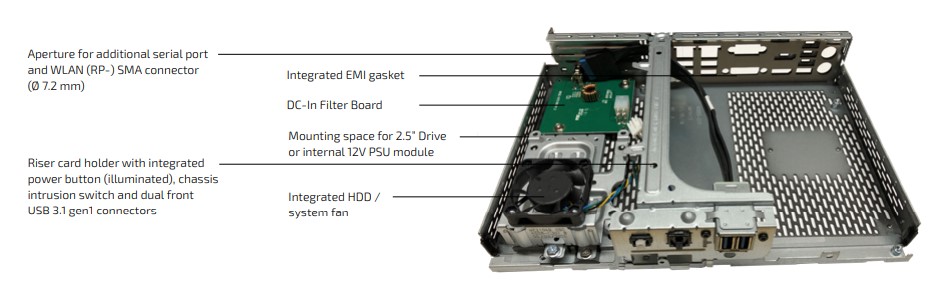

| COOLING | 1 x HDD/SSD System fan
MTBF: 70.000 hours @ 40 °C Operating Temperature: -10 °C – 70 °C PWM (4 pin), 40 x 40 x 10mm 1750 – 5.500 rpm (nominal) Two ball bearing |
| MECHANICAL | Mini-ITX form factor system
Dimensions: 250 x 52 x 191 mm (W x H x D) Colour: Black |
| OPTIONS | Active cooler
AC Adapter 19V / 3.42A, 65W – w/o power cord Internal 12V 65W PSU PCIe riser card Serial port cable Mini-PCIe to M.2 Wi-Fi adapter |
