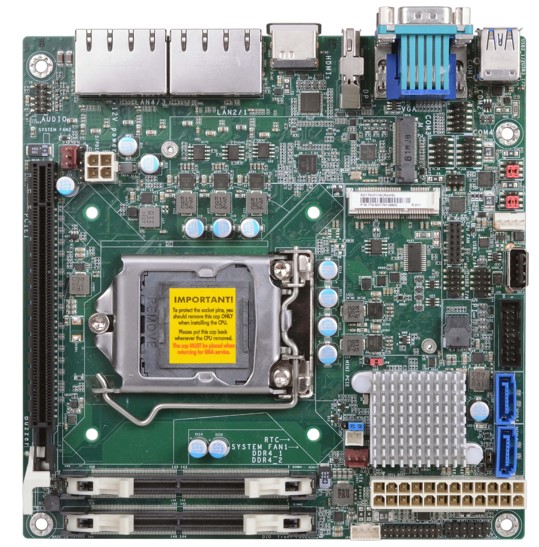

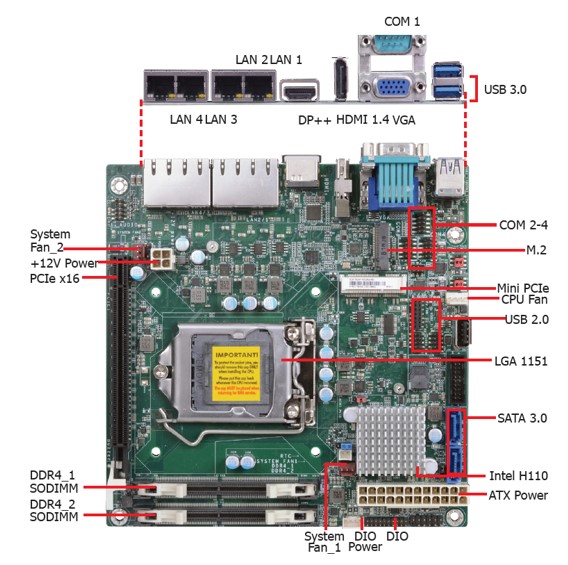

MBU4197 – Mini ITX Motherboard
- Intel 6th/7th Gen Intel® Core™ with Intel® H110
- 2 DDR4 SODIMM up to 32Gb
- Multiple expansion: 1 PCIe x16, 1 x Mini-PCIe, 1 M.2 M key
- 3 independent displays: VGA + HDMI + DP++
- Rich I/O: 4 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3′ 30 (Based on Intel IOTG Roadmap)
- See our range of Mini ITX motherboards
Specifications
| SYSTEM | PROCESSOR | 7th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W6th Generation Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W |
| CHIPSET | Intel® H110 Chipset | |
| MEMORY | Two 260-pin SODIMM up to 32GB | |
| Dual Channel DDR4 1866/2133MHz | ||
| BIOS | Insyde SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® HD Gen 9 Graphics |
| FEATURE | OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264,MPEG2,VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x VGA 1 x HDMI 1.4 1 x DP++ VGA: resolution up to 1920×1200 @ 60Hz HDMI 1.4: resolution support 4K @ 30Hz DP: resolution up to 4096×2304 @ 60Hz |
|
| TRIPLE DISPLAYS | VGA + HDMI + DP++ | |
| EXPANSION | INTERFACE | 1 x PCIe x16 (Gen 3) 1 x Full-size Mini PCIe (USB2.0/SATA, PCIe x1 opt. and share with M.2) (support SIM slot) 1 x M.2 2280 M key (PCIe x1/SATA, PCIe x1 opt. and shared with Mini PCIe) |
| AUDIO | AUDIO CODEC | Realtek ALC888S-VD2-GR |
| ETHERNET | CONTROLLER | 4 x Intel® I210AT PCIe (10/100/1000Mbps) or Intel® I211AT PCIe (10/100/1000Mbps) (opt. MOQ required) |
| REAR I/O | ETHERNET | 4 x GbE (RJ-45) |
| SERIAL | 1 x RS-232 (DB-9) | |
| USB | 2 x USB 3.0 Type A connector | |
| PS/2 | N/A | |
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) |
|
| AUDIO | N/A | |
| INTERNAL I/O | SERIAL | 1 x RS-232/422/485 (RS-232 w/power)
2 x RS-232 (2.00mm pitch) |
| USB | 2 x USB 3.0 4 x USB 2.0 1 x USB 2.0 Type A connector for Watchdog Timer |
|
| AUDIO | 1 x S/PDIF 1 x Line-out 1 x Mic-in |
|
| SATA | 2 x SATA 3.0 | |
| DIO | 1 x 16-bit DIO | |
| LPC | 1 x LPC (supports LPC EXT-RS232/RS485 module) | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | N/A | |
| TYPE | ATX | |
| CONNECTOR | 4-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Idle: i7-7700 65W: 12V @ 1.28A (15.36W), 5V @ 0.54A (2.7W), 3.3V @ 0.47A (1.55W) Max: i7-7700 65W: 12V @ 6.78A (81.36W), 5V @ 0.72A (3.6W), 3.3V @ 0.58A (1.91W) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit)Windows 10 Pro 64-bit Windows 10 IoT Enterprise 64-bit Note: 7th Gen Intel Core processors only support Win 10.Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Linux |
|
| ENVIRONMENT | TEMPERATURE | Operating: 0 to 60°C Storage: -40 to 85°C |
| HUMIDITY | Operating: 5 to 90% RH
Storage: 5 to 90% RH |
|
| MTBF | 661,927 hrs @ 25°C; 395,601 hrs @ 45°C ; 253,051 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | Mini-ITX Form Factor 170mm (6.7″) x 170mm (6.7″) |
| HEIGHT | PCB: 1.6mm
Top Side: 20mm Bottom Side: 3mm |
|
| CERTIFICATIONS | CE, FCC, RoHS |
