MBU4172 – ATX Motherboard
- AMD® EPYC™ Embedded 3351, 12 Core, 24 Threads processor
- 8 DDR4 RDIMM/UDIMM up to 256
- Multiple expansion: 3 PCIe x16 (up to 6 PCIe x8), 1 PCI, 1 M.2 M Key (PCIe x4 NVMe, 1 M.2 M Key (SATA/PCIe x2 NVMe)
- Rich I/O: 2 COM, 8 USB 3.1 Gen 1
- Extended Life Cycle Support Until Q1′ 31 (Based on AMD roadmap)
Specifications
| SYSTEM | PROCESSOR | AMD® EPYC™ Embedded 3351, 12 Core, 24 Threads, 1.9GHz (3GHz), 60-80W |
| MEMORY | 8 DDR4 RDIMM/UDIMM up to 256GB | |
| BIOS | Insyde | |
| EXPANSION | INTERFACE | 3 x PCIe x16 (up to 6 PCIe x8)
1 x PCI 1 x M.2 M Key (PCIe x4 NVMe) 1 x M.2 M Key (SATA/PCIe x2 NVMe) |
| ETHERNET | CONTROLLER | 2 x Intel® I210AT |

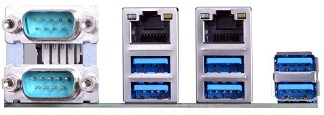

| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232/422/485 (RS-232 w/power (DB-9)
1 x RS-232 (DB-9) |
|
| USB | 6 x USB 3.1 Gen 1 | |
| INTERNAL I/O | USB | 2 x USB 3.1 Gen 1 |
| SATA | 3 x SATA 3.0
2 x SATA 3.0 supports RAID 0/1 |
|
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| TPM | TPM2.0 (opt., MOQ required) | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power / 24-pin ATX power | |
| CONSUMPTION | TBD | |
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 64-bit
Windows Server 2019 Linux |
|
| ENVIRONMENT | TEMPERATURE | Operating: -5 to 65°C
Storage: -40 to 85°C |
| HUMIDITY | Operating: 10 to 90% RH
Storage: 10 to 90% RH |
|
| MTBF | TBD | |
| MECHANICAL | DIMENSIONS | ATX Form Factor 305mm (12″) x 244mm (9.6″) |
| HEIGHT | PCB: TBD / Top Side: TBD Bottom Side: TBD |
