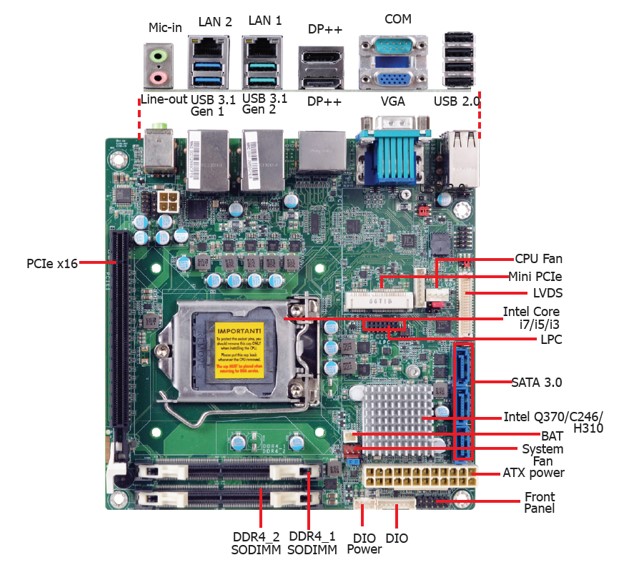

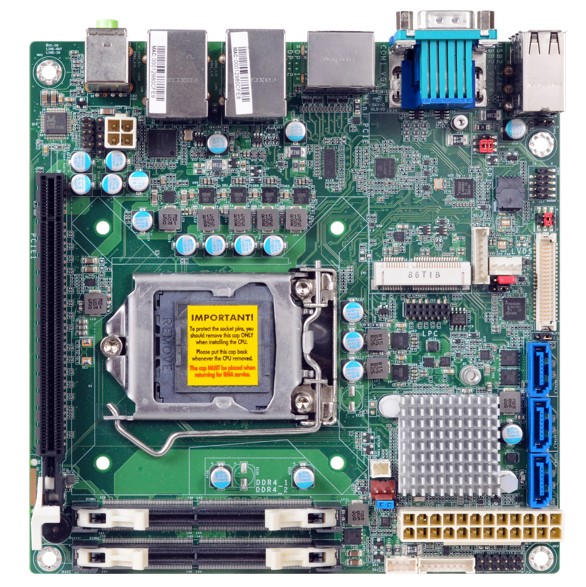

MBU4141 – Mini ITX Motherboard
- Intel 8th/9th Gen Intel® Core™ with Intel® Q370
- 2 DDR4 SODIMM up to 32Gb
- Multiple expansion: 1 PCIe x16, 1 x Mini-PCIe
- 1 x VGA + 1 x LVDS & 2 x DP++
- Rich I/O: 2 Intel GbE, 2 COM, 4 USB 3.1, 4 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2′ 33 (Based on Intel IOTG Roadmap)
Specifications
| SYSTEM | PROCESSOR | 9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W) Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W) Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W) Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) 8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) |
| CHIPSET | Intel® Q370 Chipset | |
| MEMORY | Two 260-pin SODIMM up to 32GB | |
| Dual Channel DDR4 2400/2666MHz | ||
| BIOS | AMI SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® UHD Graphics 630 (Pentium G5400, Celeron G4900 support Intel® UHD Graphics 610) |
| FEATURE | OpenGL 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x LVDS 1 x VGA 2 x DP++LVDS: resolution up to 1920×1200 @ 60Hz VGA: resolution up to 1920×1200 @ 60Hz DP: resolution up to 4096×2304 @ 60Hz |
|
| TRIPLE DISPLAYS | LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++ | |
| EXPANSION | INTERFACE | 1 x PCIe x16 (Gen 3) 1 x Full-size Mini PCIe (& mSATA) |
| AUDIO | AUDIO CODEC | Realtek ALC888S-VD2-GR |
| ETHERNET | CONTROLLER | 1 x Intel® I219LM PHY
1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT) |

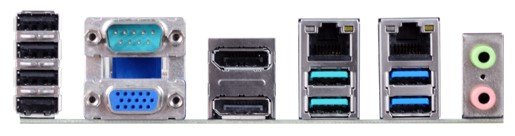

| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232 (DB-9) | |
| USB | 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 4 x USB 2.0 |
|
| PS/2 | 1 x PS/2 (mini-DIN-6) | |
| DISPLAY | 1 x VGA
2 x DP++ |
|
| AUDIO | 1 x Line-out, 1 x Mic-in, 1 x Line-in (as opt., MOQ required) | |
| INTERNAL I/O | SERIAL | 1 x RS-232 (RS-232 w/power) (2.00mm pitch) |
| DISPLAY | 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power |
|
| AUDIO | 1 x S/PDIF
1 x Front Audio |
|
| SATA | 3 x SATA 3.0
RAID 0/1/5 |
|
| DIO | 1 x 8-bit DIO | |
| LPC | 1 x LPC (supports LPC EXT-RS232/RS485 module) | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | TPM2.0 (MOQ. available upon request) | |
| TYPE | ATX | |
| CONNECTOR | 4-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Idle: i7-8700 65W: 12V @ 0.39A (4.68W), 5V @ 0.53A (2.65W), 3.3V @ 0.23A (0.795W) Max: i7-8700 65W: 12V @ 11.24A (134.88W), 5V @ 1.14A (5.7W), 3.3V @ 0.25A (0.825W) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit |
|
| ENVIRONMENT | TEMPERATURE | Operating: 0 to 60°C Storage: -40 to 85°C |
| HUMIDITY | Operating: 5 to 90% RH
Storage: 5 to 90% RH |
|
| MTBF | 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C
Calculation model: Telcordia Issue 4 |
|
| MECHANICAL | DIMENSIONS | Mini-ITX Form Factor 170mm (6.7″) x 170mm (6.7″) |
| HEIGHT | PCB: 1.6mm
Top Side: 20mm Bottom Side: 3mm |
|
| CERTIFICATIONS | CE, FCC, RoHS |
