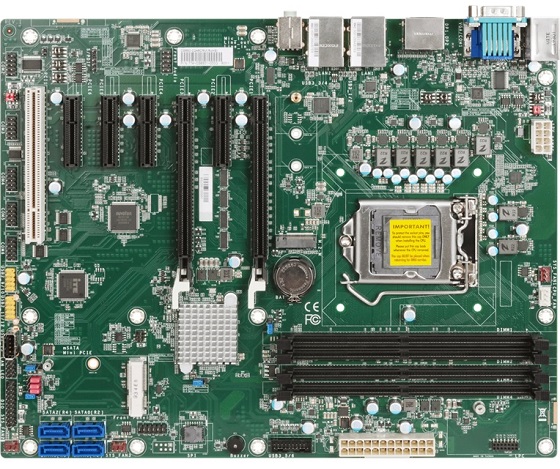

MBU4169 – ATX Motherboard
- Intel 8th/9th Gen Intel® Core™ with Intel® Q370
- 4 DDR4 DIMM up to 128GB
- Multiple expansion: 2 PCIe x16, 3 PCIe x4, 1 PCIe x1, 1 PCI, 1 Mini PCIe, 1 M.2 M key
- 3 independent displays: VGA + DP++ + DP++
- Rich I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4′ 33 (Based on Intel IOTG Roadmap)
Specifications
| SYSTEM | PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Processors:
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W Intel® Core™ i7-9700K (8 Cores, 12M Cache, up to 4.9 GHz); 95W Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W |
| CHIPSET | Intel® Q370 Chipset | |
| MEMORY | Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666MHz |
|
| BIOS | AMI SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® HD Gen 9 Graphics |
| FEATURE | OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264,MPEG2,VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x VGA 2 x DP++ VGA: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
|
| TRIPLE DISPLAYS | VGA + DP++ + DP++ | |
| EXPANSION | INTERFACE | 1 x Full-sized Mini PCIe (PCIe/SATA/USB2.0), share with SATA 3(R5)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe/SATA) 2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals) 3 x PCIe x4 (Gen 3) 1 x PCIe x1 (Gen 3) 1 x PCI |
| AUDIO | AUDIO CODEC | Realtek ALC888 |
| ETHERNET | CONTROLLER | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) |
| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232/422/485 (RS-232 w/power (DB-9) | |
| USB | 2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1 2 x USB 2.0 |
|
| PS/2 | 1 x PS/2 (mini-DIN-6) | |
| DISPLAY | 1 x VGA 2 x DP++ |
|
| AUDIO | 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) | |
| INTERNAL I/O | SERIAL | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) |
| USB | 2 x USB 3.1 Gen 1 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 Colay vertical Type A) (opt., MOQ required) |
|
| AUDIO | 1 x S/PDIF 1 x Front Audio Header | |
| SATA | 4 x SATA 3.0
RAID 0/1/5/10 |
|
| DIO | 1 x 8-bit DIO | |
| LPC | 1 x LPC (supports LPC EXT-RS232/RS485 module) | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | Infineon TPM2.0/1.2 (opt., MOQ required) | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Typical: i7-8700K: 3.3V @ 0.34A (1.122Watt); 5V @ 0.58A (2.9Watt); 12V @ 0.65A (7.8Watt) Max.: i7-8700K:3.3V @ 0.52A (1.716Watt); 5V @ 1.27A (6.35Watt); 12V @ 13.01A (156.12Watt) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit Linux |
|
| ENVIRONMENT | TEMPERATURE | Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| HUMIDITY | Operating: 5 to 95% RH
Storage: 5 to 95% RH |
|
| MTBF | 534,017 hrs @ 25°C; 298,488 hrs @ 45°C ; 184,547 hrs @ 60°C ; 133,068 hrs @ 70°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | ATX Form Factor 305mm (12″) x 244mm (9.6″) |
| HEIGHT | PCB: 1.6mm / Top Side: TBD Bottom Side: TBD | |
| CERTIFICATIONS | CE, FCC, RoHS, KCC |
