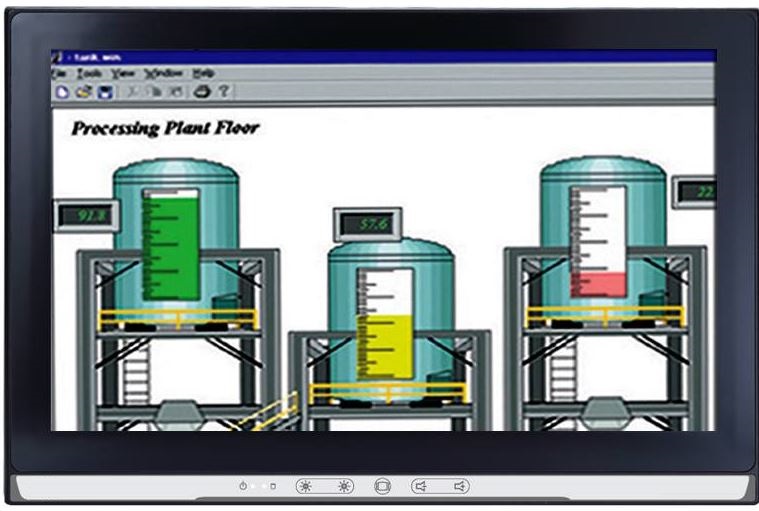

PPC2022 – Panel PCs
- 15.6″ WXGA wide screen Panel PC
- Intel® Celeron® J1900 processor
- PCAP or Resistive Touch screen
- IO: 2 LAN/HDMI/COM/USB3.0/USB2.0
- 1 x 2.5” SSD bay, 1 x mSATA
- Supports up to 8GB DDR3L memory
- IP65 compliant front panel
- Panel/wall/stand/VESA mounting
- 9~36V DC or AC input
- Supports Windows 7 & Windows 10
Specifications
| PANEL | 15.6″ WXGA TFT LCD
300 nits 1366 x 768 pixels |
| PROCESSOR | Intel® Celeron® processor J1900 |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| BIOS | AMI |
| COM | 2 x RS-232/422/485 (default RS-232) |
| USB | 2 x USB 2.0
2 x USB 3.0 |
| ETHERNET | 2 x 10/100/1000 Mbps (Intel® i211-AT) |
| DISPLAY | 1 x HDMI |
| AUDIO | 1 x Audio (Line-out) |
| STORAGE | 1 x 2.5″ SATA HDD (9.5 mm height)
1 x CFast™ or mSATA |
| EXPANSION | 1 x Full-size PCI Express Mini Card slot with mSATA
1 x Full-size PCI Express Mini Card slot with SIM |
| OTHERS | 1 x AT/ATX mode selection switch
1 x Switch for power on/off |
| TOUCHSCREEN | Projected capacitive multi-touch
5-wire flat resistive touch |
| FRONT BEZEL | IP65, NEMA 4 rugged protection, plastic front bezel |
| POWER SUPPLY | DC version: 9 to 36 VDC with over-current protection fuse
AC version: 100 to 240 VAC-DC, 60W power adapter |
| POWER CONSUMPTION | 36W |
| WATCHDOG TIMER | 255 levels, 0 to 255 sec. |
| OPERATING TEMPERATURE | 0°C to +45°C (32°F to +113°F) w/ RAM thermal kit |
| RELATIVE HUMIDITY | 20% to 90% @ 40°C; non-condensing |
| VIBRATION | 2G, 10 to 500Hz, random for CFast™ |

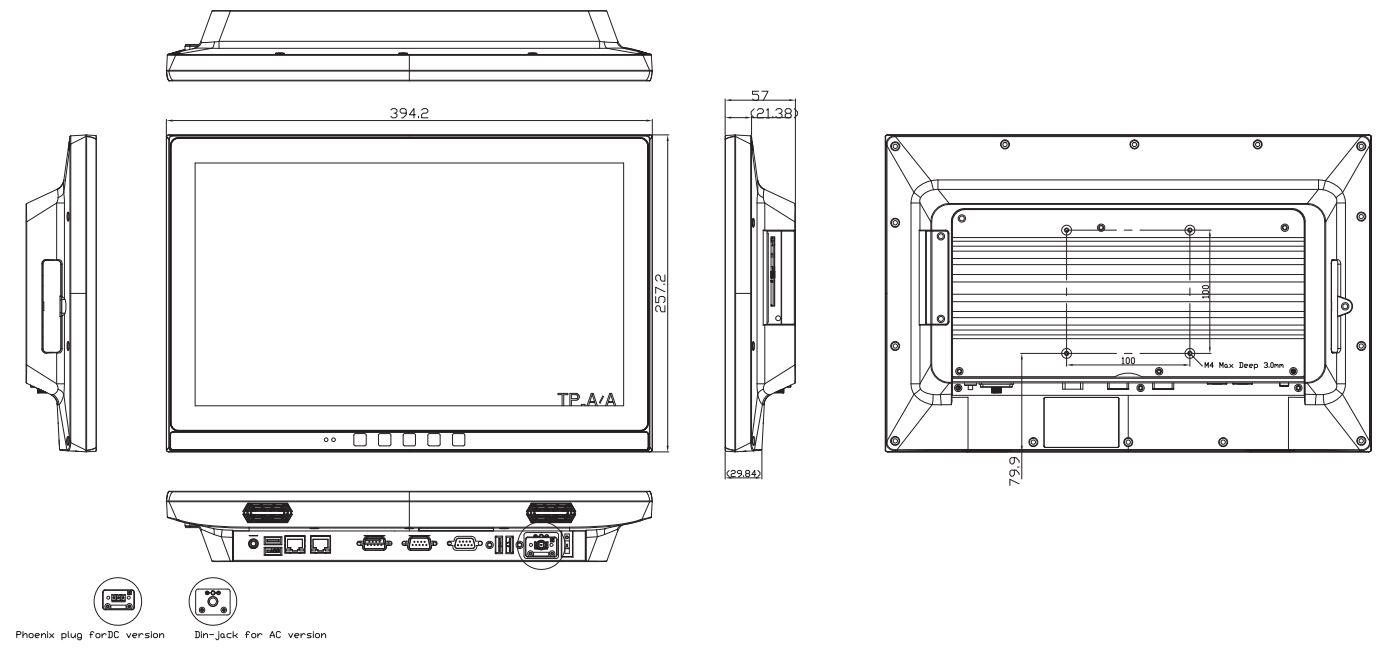

| DIMENSIONS (W X D X H) | 394.2 x 57 x 257.2 mm (15.53″ x 2.25″ x 10.13″) |
| WEIGHT (NET/GROSS) | 3.0 kg (6.61 lb)/4.5 kg (9.92 lb) |
| CERTIFICATIONS | CE |
| OS SUPPORT | Windows 10, Windows® 8.1, WE8S, Windows® 7, WES 7 |
| MOUNTING | Wall mount
VESA arm Desktop stand |
