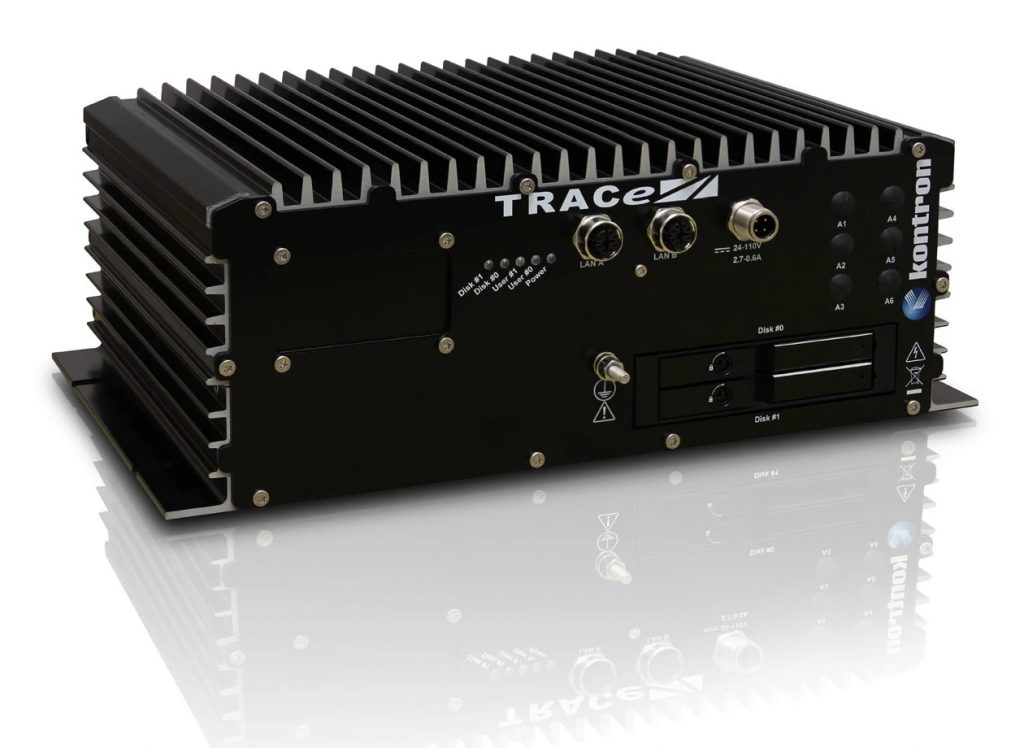

TRACe-V40x-TR – Transportation Computer
- Fanless Box Computer for rolling stock applications
- Intel® Core™i7-6600U or Core™i3-6100U
- 8 GB DDR4 memory down, 32 GB SLC soldered eMMC flash
- 2x hot-swappable SATA III drive bays with key locks
- 2x LAN for IP cameras video recording
- Available as Server / Router powered by Kontron SEC-Line : secure OpenWRT hypervisor and Opcenter remote fleet management tool
Description
EN50155 FANLESS RAILWAY PERFORMANCE CLASS NETWORK VIDEO RECORDER
Kontron TRACe V40x-TR is an EN50155 fanless Transportation Computer, specifically designed for rolling stock application where video processing and real time analysis, video streaming, video storage are requested to match your system requirements, like IP video surveillance. Kontron TRACe V40x-TR is robust and compact, providing high performance, high reliability and high capacity data storage in demanding railway environments.
The TRACe V407-TR variant is based on a high performance Intel® Core™i7-6600U (dual-core @ 2.6 GHz) processor with soldered 8 GB DDR4 memory and 32 GB SLC Flash. Another variant is available based on Intel® Core™i3-6100U @ 2x 2.3 GHz processor: the Kontron TRACe V403-TR.
When powered by Kontron SEC-Line option, TRACe-B40x-TR operates under OpenWRT based hypervisor, which can securely deploy unmodified legacy applications and OSes in VM(s) thanks to numerous innovative technologies.The OpCenter console simplifies the remote management of large computer fleets from a single on-premises point of control.
Learn more about SEC-Line here.
Specifications
| SUPPORTED PROCESSORS |
Intel® Core™i7-6600U (dual-core @ 2.6 GHz) , 4 MB SmartCache Intel® Core™i3-6100U (dual-core @ 2.3 GHz) , 3 MB SmartCache Intel® Atom™ x5-E3930 dual-core @1.3 GHz , 2 MB L2 Cache Intel® Atom™ x5-E3940 quad-core @ 1.6 GHz, 2 MB L2 Cache Intel® Atom™ x7-E3950 quad-core @ 1.6 GHz, 2 MB L2 Cache |
| MEMORY AND FLASH | 8 GB DDR4 memory-down for Core™ i7/i3 variants, 8 GB DDR3L with optional ECC for Atom™ E39xx variants . 32 GB SLC eMMC soldered Flash |
| MASS STORAGE | 2 SATA connections –for 2.5 inch HDD / SSD 9.5mm height max or Msata |
| GRAPHIC CONTROLLER | Integrated Intel® HD Graphics 520, Display Port / 4096×2304 @ 60 Hz for Core™ i7/i3 variants Integrated Intel® HD Graphics 500, Display Port / 4096×2304 @ 60 Hz for Atom™ E3930 and E3940 Integrated Intel® HD Graphics 505, Display Port / 4096×2304 @ 60 Hz for Atom™ E3950 |
| OPERATIONAL PLATE | Power: 1x DC-IN on M12 A-coded connector (1.5 kV insulation) Ethernet: 2x Ethernet 10/100/1000 Mb/s, M12 8-pin-Female connectors (1.5 kV insulation) lEDs: 1x Power Led, 2x User Leds, 2x Disk LEDs Drive Bays: 2x Removable and Hot-Pluggable drive bays with secured key locks for 2.5″ SATA disks (maximum height 9,5mm), optional 4 removable drive bays |
| MAINTENANCE PLATE | 1 Serial Port 1x USB 3.0/2.0 , 1x USB 2.0 1 Display Port 2 User Leds, 1 Power Led, 1 Alarm Led, 1 Sys Led |
| POWER SUPPLY | Input Voltage Ultra Wide Range 24 VDC…110 VDC (Class S2-C1, 10 ms interruption) |
| EXTENSION | 3x Mini PCI-Express sockets (PCIe and USB 2.0 by default, USB 3.0 on request) 2x SIM card holders (Dual SIM support) 1x mSATA slot (shared with one 2.5” SATA) Additional DDR4/DDR3L RAM via SODIMM (+8 or +16GB) (on request only) |
| PROTECTION CLASS | IP20 on front / IP50 other faces |
| OPERATING TEMPERATURE | -25°C up to +55°C +10 min @ 70°C EN50155 Class T1 (with W/T SSDs) -40°C up to 70°C +10 min @ 85°C EN50155 Class Tx depending on configuration |
| STORAGE TEMPERATURE | -40°C up to 85°C |
| OPERATING SYSTEM | Pre-installed Linux Fedora 23 (default), Windows 10 support |
| OPTIONS | Industrial Grade SSDs (128 GB to 2 TB), Wi-Fi, LTE, GNSS, RS422/485, Audio, 8x Digital Inputs + 8x Digital Outputs, Dual CAN2.0B, MVB. Additional 2x removable drive bays for 2.5″ SATA III disks with secured key locks for a total of 4x removable drive bays. Contact us for more information. |
| STANDARDS APPROVAL | EN50155, EN45545-2, CE, FCC part 15 class A |
