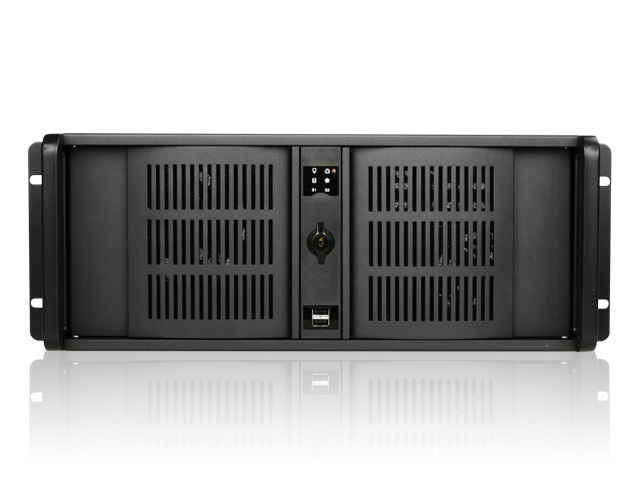

ICOM469 4U Rackmount Computer
- 4U 19” Industrial rackmount system
- 13.7” Short Depth
- 4 PCIe & 2 PCI expansion slots
- Supports Intel® 8th/9th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q370 chipset, RAID 0/1/5/10
- 4 DDR4 DIMMs up to 128GB
- 3 Display Outputs: VGA, 2 DP++
- I/O: LAN, 6 COM, 6 USB 3.1, 7 USB 2.0
- Windows 10 Pro / IoT & Linux Support
- CPU Life Cycle Support Until Q2 2033
Specifications
| PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Processors:
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W |
| CHIPSET | Intel® Q370 Chipset |
| MEMORY | Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 1x Slimline 5.25” drive bay & 3x 3.5” drive bays
Supports 4 x SATA3.0 Support RAID 0/1/5/10 Optional removable hard disk drives or solid state disks |
| OPTICAL | Optional Slimline DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 1 x PCIe x16 (Gen 3) (x8/x8 signals as opt., MOQ required) 3 x PCIe x4 (Gen 3) 2 x PCI 1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0) 1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support) |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit Linux |
| DISPLAY | 1 x VGA: resolution up to 1920×1200 @ 60Hz 2 x DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Displays:
VGA + DP++ + DP++ |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.1 Gen1 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 2 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 5 x RS-232 (2.54mm pitch)
2 x USB 3.1 Gen2 (2.00mm pitch) 5 x USB 2.0 (2.54mm pitch) (4 x Pin Header, 1 x USB2.0 vertical Type A) |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 1x Slimline 5.25” drive bay
2x 3.5” external & 1 x 3.5” internal drive bays |
| MOTHERBOARD MTBF | 582,202 hrs @ 25°C; 332,716 hrs @ 45°C; 207,812 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter
2x80mm & 1x120mm |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 x 177.8 x 348.0 mm / 19.00″ x 7.00″ x 13.70″) (W x H x D) |
