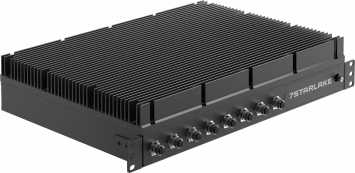

R11D-T4 – Military Systems
- Intel® Xeon® Skylake DE D2183IT CPU (16 Cores, up to 3.00 GHz)
- NVIDIA TELSA T4 GPU Card (2560 CUDA, 16GB GDDR6)
- DDR4-128GB (Option to 256GB)
- 16V~34V DC-DC 500W or 100V~240V AC-DC
- Storage(1): 1 x NVMe
- Storage(2): 2 x SATA 3.0 SSD
- MIL-STD 810 Anti Vibration/Shock
- IP54-rated for full system
Specifications
|
System |
|
|---|---|
| CPU | Intel® Xeon® Skylake DE D2183IT CPU (16 Cores, up to 3.00 GHz) |
| Memory type | DDR4-256GB |
| GPU | NVIDIA TELSA T4 GPU (2560 CUDA, 16GB GDDR6) |
|
Display |
|
| VGA | VGA |
|
Storage |
|
| Storage | Storage(1): 1 x NVMe
Storage(2): 2 x SATA 3.0 SSD |
|
Rear I/O |
|
| X1 | 1 x 10GbE |
| X2 | 1 x 10GbE |
| X3 | 1 x USB |
| X4 | 1 x VGA |
| X5 | 1 x GbE (IPMI) |
| X6 | 1 x GbE |
| X7 | 1 x GbE |
| X8 | DC Input |
|
Power Requirements |
|
| Power Input | 16V~34V DC-DC 500W or 100V~240V AC-DC |
|
Applications, Operating System |
|
| Applications | |
| OS | Windows® 10 64-bit / Linux |
|
Physical |
|
|---|---|

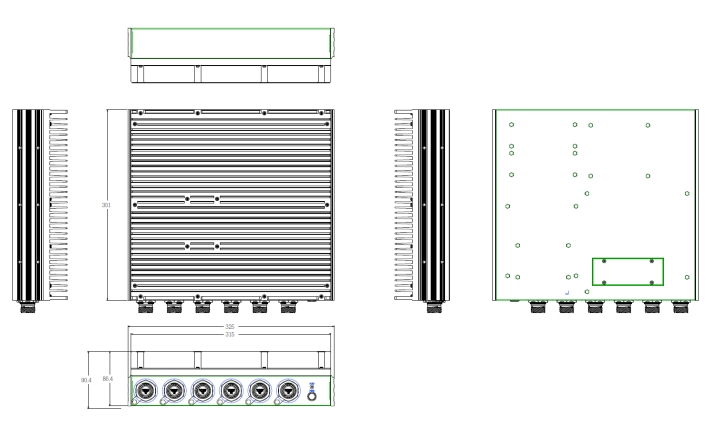

| Dimension | 300 x 315 x 86 mm (W x D x H) |
| Weight | 3.5KG |
| Chassis | SECC |
| Heatsink | Aluminium Alloy, Corrosion Resistant |
| Finish | Anodic aluminium oxide |
|
Environmental |
|
| Compliance | CE and FCC, RoHS |
| IP Rating | Chassis: IP65
I/O connectors: IP67 |
| Operating Temp. | 0 to 55°C |
| Storage Temp. | -20 to 70°C |

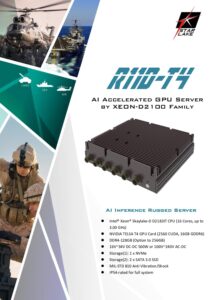

Downloads
